We mainly produce Integrated inductors,Magnetic glue inductors, CD wound inductors,High-frequency stacked inductors, Magnetic beads, Ring inductors, l-shaped inductors,Common mode inductors and Act.
The products are widely used in Communication,Servers, High-tech electronics, Ships, Computers,Data transmission, audio video processing,and automotive electronic systems.
We can replace these brands completely: TDK,Murata, Sumida, Wurth, Panasonic, Sunlord and etc.
Our production capacity is 40KK per month.
| Photo | Series | Model name | Description | Datasheet |
|---|---|---|---|---|

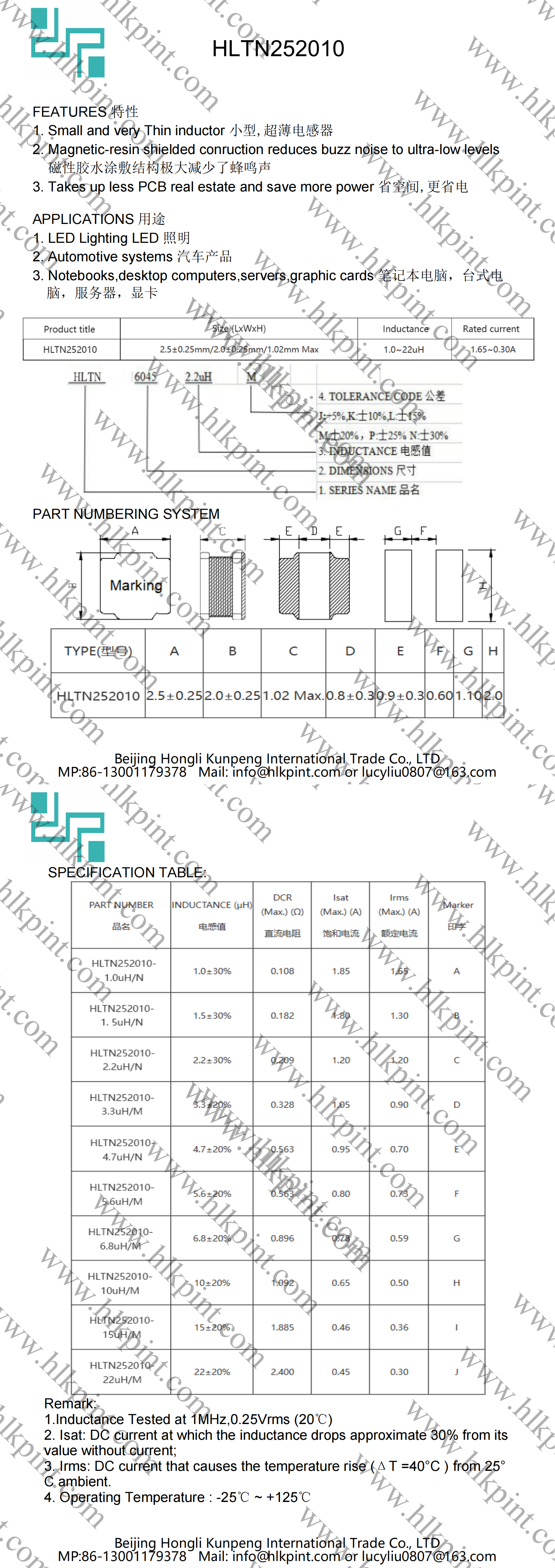

| HLTN252010-3.3uH/M | HL252010 | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) |  |
|
| HLTN252010-2.2uH/N | HL252010 | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-1.5uH/N | HL252010 | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-1.0uH/N | HL252010 | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|

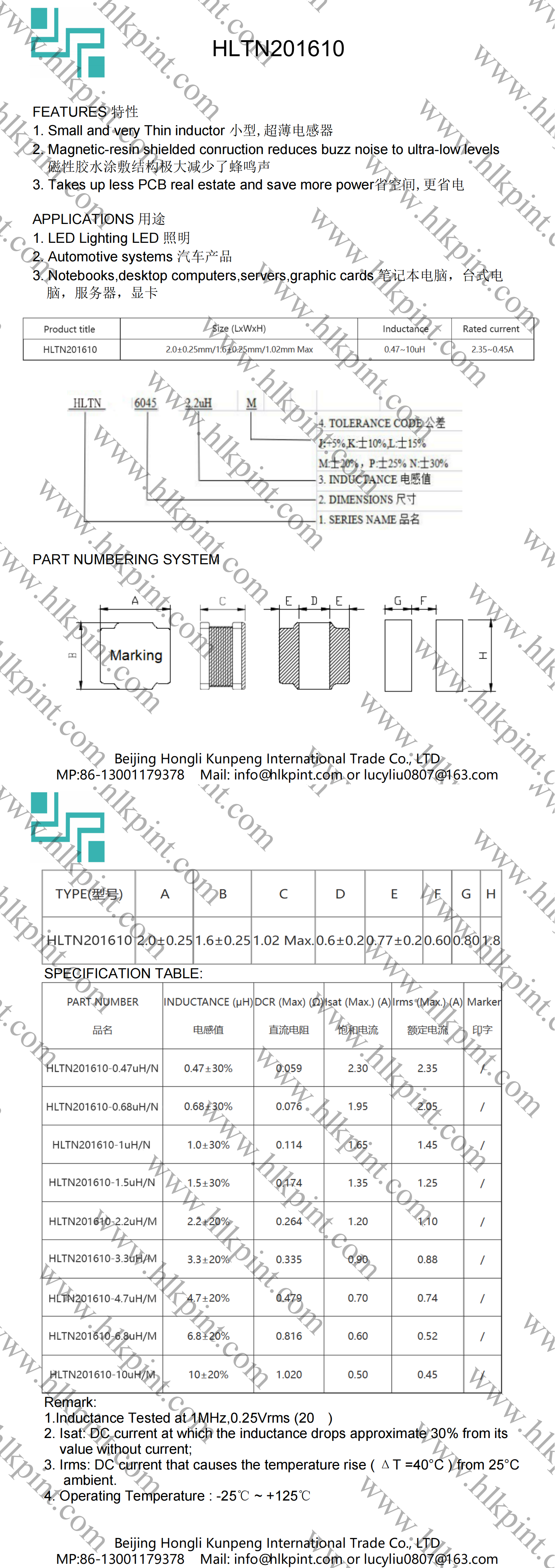

| HLTN201610-10uH/M | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-6.8uH/M | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-4.7uH/M | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-3.3uH/M | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-2.2uH/M | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-1.5uH/N | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-1uH/N | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-0.68uH/N | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN201610-0.47uH/N | HL201610 | 2.0±0.25mm/1.6±0.25mm/1.02mm Max(LxWxH) | |
|

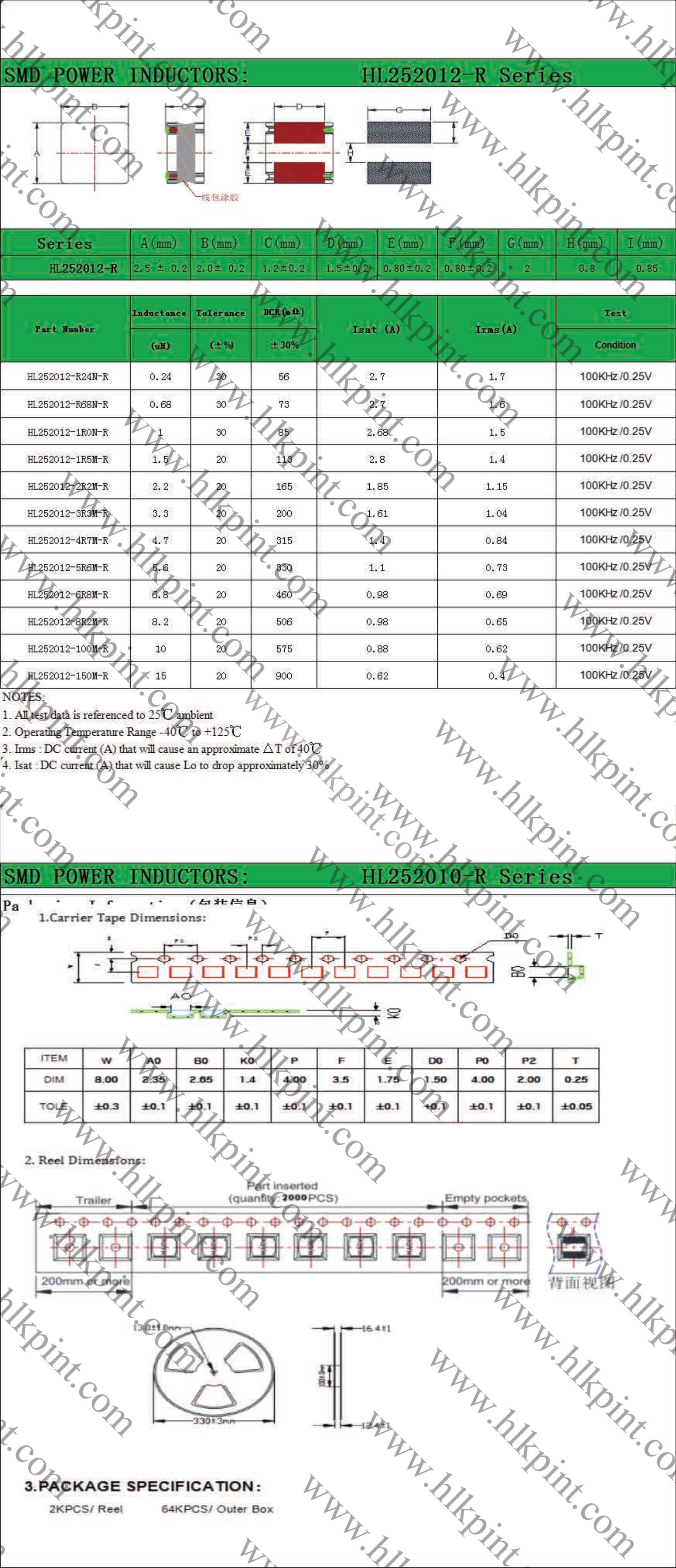

| HL252012-150M-R | HL252012 | 2.5*1.2 | |
|
| HL252012-100M-R | HL252012 | 2.5*1.2 | |
|
| HL252012-8R2M-R | HL252012 | 2.5*1.2 | |
|
| HL252012-6R8M-R | HL252012 | 2.5*1.2 | |
|
| HL252012-5R6M-R | HL252012 | 2.5*1.2 | |
|
| HL252012-4R7M-R | HL252012 | 2.5*1.2 | |
|
| HL252012-3R3M-R | HL252012 | 2.5*1.2 | |
