直流风扇 Dc Cooling Fan

Overview

Our products are mainly focusing on customization, providing cooling fans of different sizes and air volumes according to customers' heat dissipation needs. According to the structure, we can divide it into two types: one is a double ball structure with a lifetime of 50000 hours, and the other is a hydraulic structure with a lifetime of 20000 hours. Distinguished from its appearance: square fan, bracket fan, blower, and AC fan. There are over 300 styles.

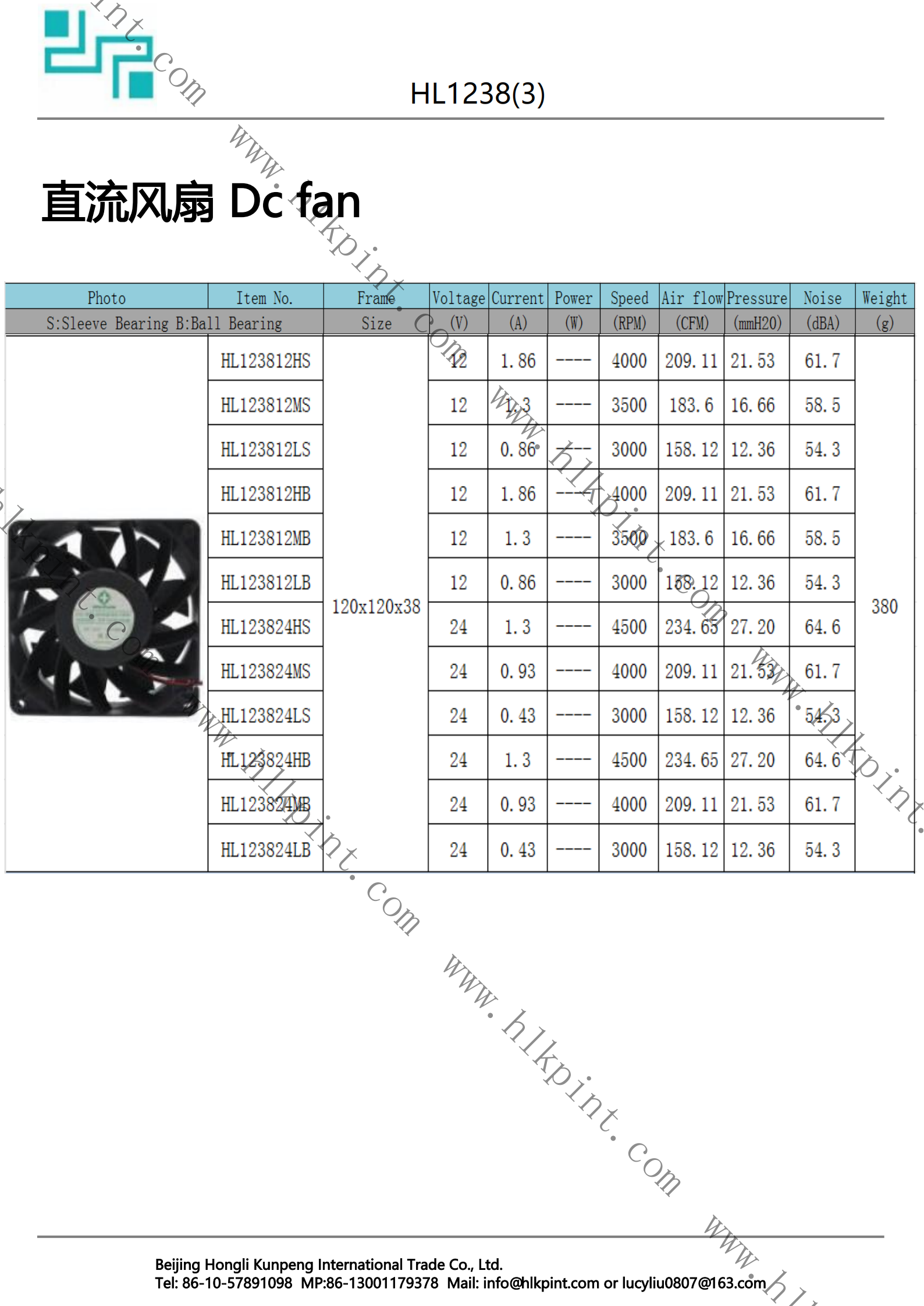

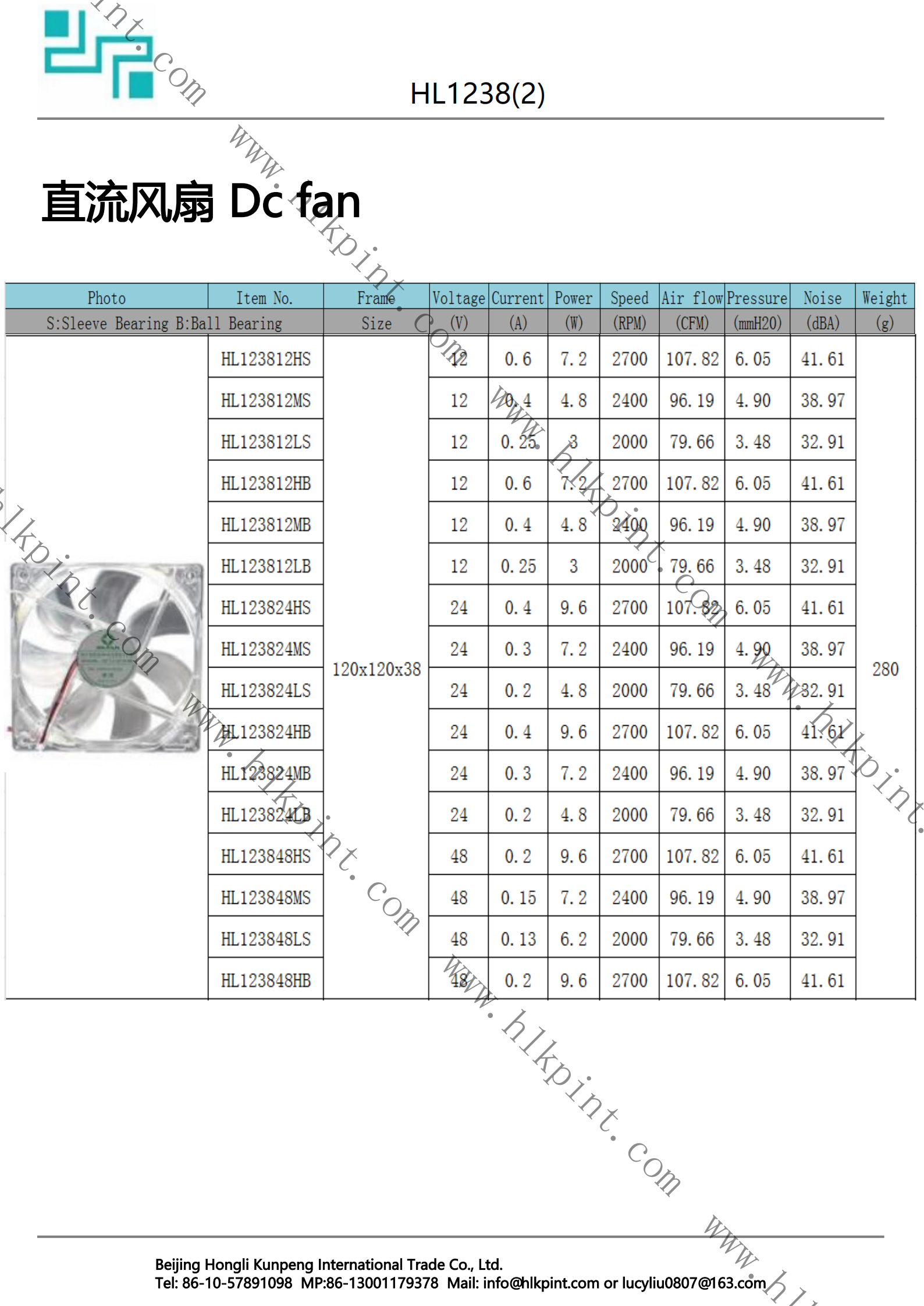

Product list

Photo Part NO. Type Frame Size Voltage
(V)
Current
(A)
Power
(W)
Speed
(RPM)
Air flow
(CFM)
Pressure
(mmH20)
Noise
(dBA)
Weight
(g)
Datasheet
HL123824LB HL123824LB Dc fan 120X120X38 24 0.43 3000 158.12 12.36 54.3 380
HL123824MB HL123824MB Dc fan 120X120X38 24 0.93 4000 209.11 21.53 61.7 380
HL123824HB HL123824HB Dc fan 120X120X38 24 1.3 4500 234.65 27.20 64.6 380
HL123824LS HL123824LS Dc fan 120X120X38 24 0.43 3000 158.12 12.36 54.3 380
HL123824MS HL123824MS Dc fan 120X120X38 24 0.93 4000 209.11 21.53 61.7 380
HL123824HS HL123824HS Dc fan 120X120X38 24 1.3 4500 234.65 27.20 64.6 380
HL123812LB HL123812LB Dc fan 120X120X38 12 0.86 3000 158.12 12.36 54.3 380
HL123812MB HL123812MB Dc fan 120X120X38 12 1.3 3500 183.6 16.66 58.5 380
HL123812HB HL123812HB Dc fan 120X120X38 12 1.86 4000 209.11 21.53 61.7 380
HL123812LS HL123812LS Dc fan 120X120X38 12 0.86 3000 158.12 12.36 54.3 380
HL123812MS HL123812MS Dc fan 120X120X38 12 1.3 3500 183.6 16.66 58.5 380
HL123812HS HL123812HS Dc fan 120X120X38 12 1.86 4000 209.11 21.53 61.7 380
HL123848HB HL123848HB Dc fan 120X120X38 48 0.2 9.6 2700 107.82 6.05 41.61 280
HL123848LS HL123848LS Dc fan 120X120X38 48 0.13 6.2 2000 79.66 3.48 32.91 280
HL123848MS HL123848MS Dc fan 120X120X38 48 0.15 7.2 2400 96.19 4.90 38.97 280
HL123848HS HL123848HS Dc fan 120X120X38 48 0.2 9.6 2700 107.82 6.05 41.61 280
HL123824LB HL123824LB Dc fan 120X120X38 24 0.2 4.8 2000 79.66 3.48 32.91 280
HL123824MB HL123824MB Dc fan 120X120X38 24 0.3 7.2 2400 96.19 4.90 38.97 280
HL123824HB HL123824HB Dc fan 120X120X38 24 0.4 9.6 2700 107.82 6.05 41.61 280
HL123824LS HL123824LS Dc fan 120X120X38 24 0.2 4.8 2000 79.66 3.48 32.91 280
