Overview

Committed to developing Industrial, Consumer, and Automotive grade microcontrollers.

Applied in the field of Smart home, Consumer electronics, Industrial control, Automotive electronics, Smart energy, and Communication facilities.

China brand can replace ST with pin to pin.

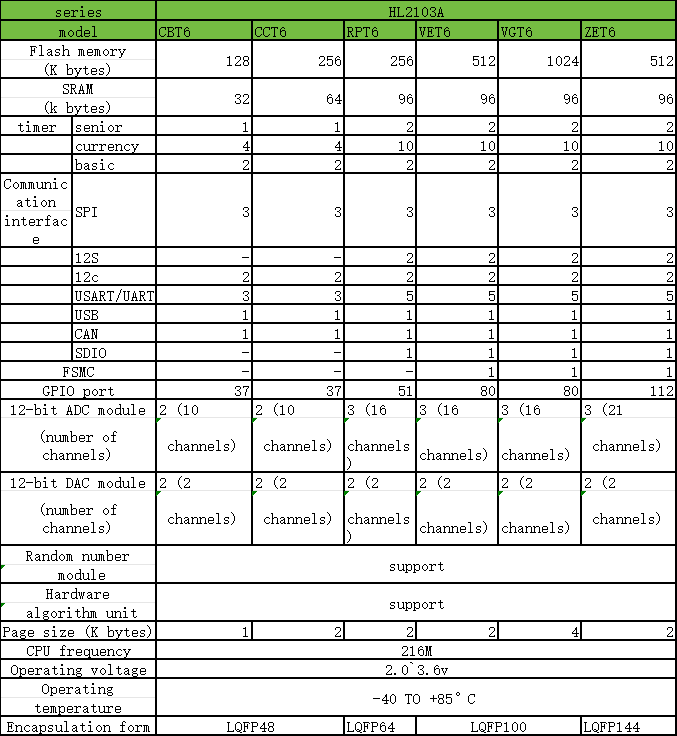

Device function configuration table
series		MH2103A
model		CBT6	CCT6	RPT6	VET6	VGT6	ZET6
Flash memory(K bytes)		128	256	256	512	1024	512
SRAM(K bytes)		32	64	96	96	96	96
timer	senior	1	1	2	2	2	2
	currency	4	4	10	10	10	10
	basic	2	2	2	2	2	2
Communication interface	SPI	3	3	3	3	3	3
	12S	-	-	2	2	2	2
	12c	2	2	2	2	2	2
	USART/UART	3	3	5	5	5	5
	USB	1	1	1	1	1	1
	CAN	1	1	1	1	1	1
	SDIO	-	-	1	1	1	1
FSMC		-	-	-	1	1	1
GPIO port		37	37	51	80	80	112
12-bit ADC module(number of channels)		2 (10 channels)	2 (10 channels)	3 (16 channels)	3 (16 channels)	3 (16 channels)	3 (21 channels)
12-bit ADC module(number of channels)		2 (2 channels)	2 (2 channels)	2 (2 channels)	2 (2 channels)	2 (2 channels)	2 (2 channels)
Random module number		support
Hardware encryption		support
algorithm unit		support
Page size (K bytes)		1	2	2	2	4	2
CPU frequency		216M
Operating voltage		2.0`3.6v
Operating temperature		’-40 TO +85°C
Encapsulation form		LQFP48		LQFP64	LQFP100		LQFP144

Device function configuration table
model		MH2030F4	MH2030K6	MH2030C8	MH2030CC	MH2030RC
Flash memory(K bytes)		64	64	256	256	256
SRAM(k bytes)		16	16	32	32	32
timer	senior(16 Bit)	1
	currency(16 Bit)	4		5
	currency(32 Bit)	1
	basic(16 Bit)	2
Communication Interface	SPI	3	3	3	3	3

	12S	-	-	2	2	2
	12c	2	2	2	2	2
	USART	3	3	5	5	5
GPIO port		15	26	39	39	55
12-bit ADC module(number of channels)		1(9 channels)	1(10 channels)	1(10 channels)	1(10 channels)	1(16 channels)
DIVSQRT		support
COMP		2
OPA		3
CPU frequency		72M
Operating voltage		2.0`3.6v
Operating temperature		’-40 ` +105°C
Encapsulation form		TSSOP20	LQFP32	LQFP48		LQFP64

Form pdf：

1：/kindeditor/attached/file/20230905/20230905175458_27594.pdf

2：/kindeditor/attached/file/20230905/20230905175628_92577.pdf

MH2103Axxxx Datasheet：/kindeditor/attached/file/20230926/20230926121102_72652.pdf

MH2103A enhanced function instructions：/kindeditor/attached/file/20230926/20230926121134_50576.pdf

MH2103Cxxxx Datasheet：/kindeditor/attached/file/20230926/20230926121216_44899.pdf

Port from SXX32F103 to MH2103A：/kindeditor/attached/file/20230926/20230926121250_84635.pdf

Port from SXX32F103 to MH2103C：/kindeditor/attached/file/20230926/20230926121314_44237.pdf

Product list

HLKP Part NO.	HLKP series	Core	CPU	DSP/FPU	FLASH	SRAM	ST Part NO.	Alternative Core	Alternative CPU	Alternative DSP/FPU	Alternative FLASH	Alternative SRAM	GD Part NO.	Package
MH2103A	VET6	M3	216M	NO/NO	512K	96K	STM32VF103VBT6	RISC-V	108M	NO/NO	128K	32K	Gx32VF103VBT6	LQFP100
MH2103A	VET6	M3	216M	NO/NO	512K	96K	STM32VF103V8T6	RISC-V	108M	NO/NO	64K	20K	Gx32VF103V8T6	LQFP100
MH2103A	RPT6	M3	216M	NO/NO	256K	96K		RISC-V	108M	NO/NO	128K	32K	Gx32VF103RBT6
MH2103A	RPT6	M3	216M	NO/NO	256K	96K		RISC-V	108M	NO/NO	64K	20K	Gx32VF103R8T6
MH2103A	RPT6	M3	216M	NO/NO	256K	96K		RISC-V	108M	NO/NO	32K	10K	Gx32VF103R6T6
MH2103A	RPT6	M3	216M	NO/NO	256K	96K		RISC-V	108M	NO/NO	16K	6K	Gx32VF103R4T6
MH2103A/C	CBT6/CCT6	M3	216M	NO/NO	128K/256K	32K/64K		RISC-V	108M	NO/NO	128K	32K	Gx32VF103CBT6
MH2103A/C	CBT6/CCT6	M3	216M	NO/NO	128K/256K	32K/64K		RISC-V	108M	NO/NO	64K	20K	Gx32VF103C8T6
MH2103A/C	CBT6/CCT6	M3	216M	NO/NO	128K/256K	32K/64K		RISC-V	108M	NO/NO	32K	10K	Gx32VF103C6T6
MH2103A/C	CBT6/CCT6	M3	216M	NO/NO	128K/256K	32K/64K		RISC-V	108M	NO/NO	16K	6K	Gx32VF103C4T6
MH2103A	ZET6	M3	216M	NO/NO	512K	96K		M3	108M	NO/NO	512K	64K	Gx32F103ZET6
MH2103A	ZET6	M3	216M	NO/NO	512K	96K		M3	108M	NO/NO	384K	64K	Gx32F103ZDT6
MH2103A	ZET6	M3	216M	NO/NO	512K	96K		M3	108M	NO/NO	256K	48K	Gx32F103ZCT6
MH2103A	VGT6	M3	216M	NO/NO	1024K	96K		M3	108M	NO/NO	1024K	96K	Gx32F103VGT6
MH2103A	VGT6	M3	216M	NO/NO	1024K	96K		M3	108M	NO/NO	768K	96K	Gx32F103VFT6
MH2103A	VET6	M3	216M	NO/NO	512K	96K		M3	108M	NO/NO	512K	64K	Gx32F103VET6
MH2103A	VET6	M3	216M	NO/NO	512K	96K		M3	108M	NO/NO	384K	64K	Gx32F103VDT6
MH2103A	VET6	M3	216M	NO/NO	512K	96K		M3	108M	NO/NO	256K	48K	Gx32F103VCT6
MH2103A	RPT6	M3	216M	NO/NO	256K	96K		M3	108M	NO/NO	256K	48K	Gx32F103RCT6
MH2103A	RPT6	M3	216M	NO/NO	256K	96K		M3	108M	NO/NO	128K	20K	Gx32VF103RBT6	LQFP64
