Ultra-low power MCU

Overview

Committed to developing Industrial, Consumer, and Automotive grade microcontrollers.

Applied in the field of Smart home, Consumer electronics, Industrial control, Automotive electronics, Smart energy, and Communication facilities.

China brand can replace ST with pin to pin.

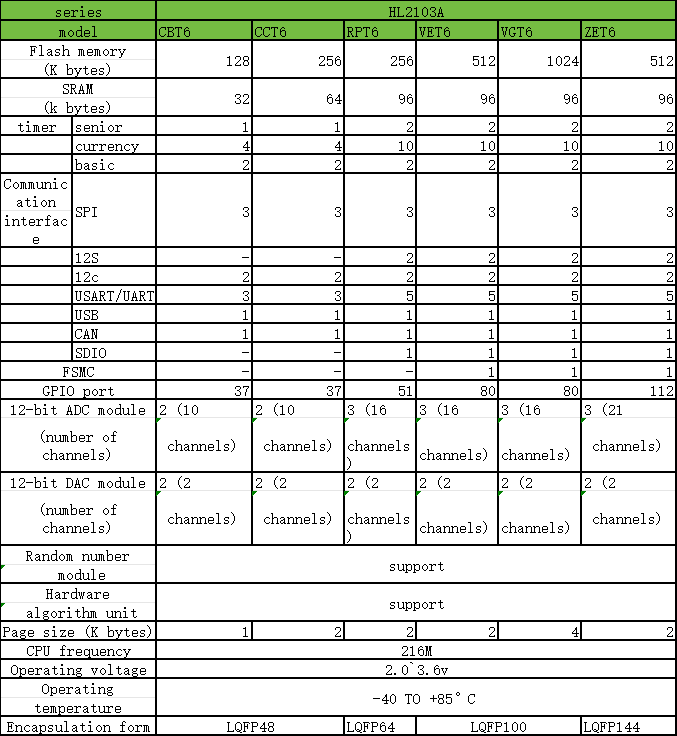

Device function configuration table
series		MH2103A
model		CBT6	CCT6	RPT6	VET6	VGT6	ZET6
Flash memory(K bytes)		128	256	256	512	1024	512
SRAM(K bytes)		32	64	96	96	96	96
timer	senior	1	1	2	2	2	2
	currency	4	4	10	10	10	10
	basic	2	2	2	2	2	2
Communication interface	SPI	3	3	3	3	3	3
	12S	-	-	2	2	2	2
	12c	2	2	2	2	2	2
	USART/UART	3	3	5	5	5	5
	USB	1	1	1	1	1	1
	CAN	1	1	1	1	1	1
	SDIO	-	-	1	1	1	1
FSMC		-	-	-	1	1	1
GPIO port		37	37	51	80	80	112
12-bit ADC module(number of channels)		2 (10 channels)	2 (10 channels)	3 (16 channels)	3 (16 channels)	3 (16 channels)	3 (21 channels)
12-bit ADC module(number of channels)		2 (2 channels)	2 (2 channels)	2 (2 channels)	2 (2 channels)	2 (2 channels)	2 (2 channels)
Random module number		support
Hardware encryption		support
algorithm unit		support
Page size (K bytes)		1	2	2	2	4	2
CPU frequency		216M
Operating voltage		2.0`3.6v
Operating temperature		’-40 TO +85°C
Encapsulation form		LQFP48		LQFP64	LQFP100		LQFP144

Device function configuration table
model		MH2030F4	MH2030K6	MH2030C8	MH2030CC	MH2030RC
Flash memory(K bytes)		64	64	256	256	256
SRAM(k bytes)		16	16	32	32	32
timer	senior(16 Bit)	1
	currency(16 Bit)	4		5
	currency(32 Bit)	1
	basic(16 Bit)	2
Communication Interface	SPI	3	3	3	3	3

	12S	-	-	2	2	2
	12c	2	2	2	2	2
	USART	3	3	5	5	5
GPIO port		15	26	39	39	55
12-bit ADC module(number of channels)		1(9 channels)	1(10 channels)	1(10 channels)	1(10 channels)	1(16 channels)
DIVSQRT		support
COMP		2
OPA		3
CPU frequency		72M
Operating voltage		2.0`3.6v
Operating temperature		’-40 ` +105°C
Encapsulation form		TSSOP20	LQFP32	LQFP48		LQFP64
