直流风扇 Dc Cooling Fan

Overview

Our products are mainly focusing on customization, providing cooling fans of different sizes and air volumes according to customers' heat dissipation needs. According to the structure, we can divide it into two types: one is a double ball structure with a lifetime of 50000 hours, and the other is a hydraulic structure with a lifetime of 20000 hours. Distinguished from its appearance: square fan, bracket fan, blower, and AC fan. There are over 300 styles.

Product list

Photo Part NO. Type Frame Size Voltage
(V)
Current
(A)
Power
(W)
Speed
(RPM)
Air flow
(CFM)
Pressure
(mmH20)
Noise
(dBA)
Weight
(g)
Datasheet

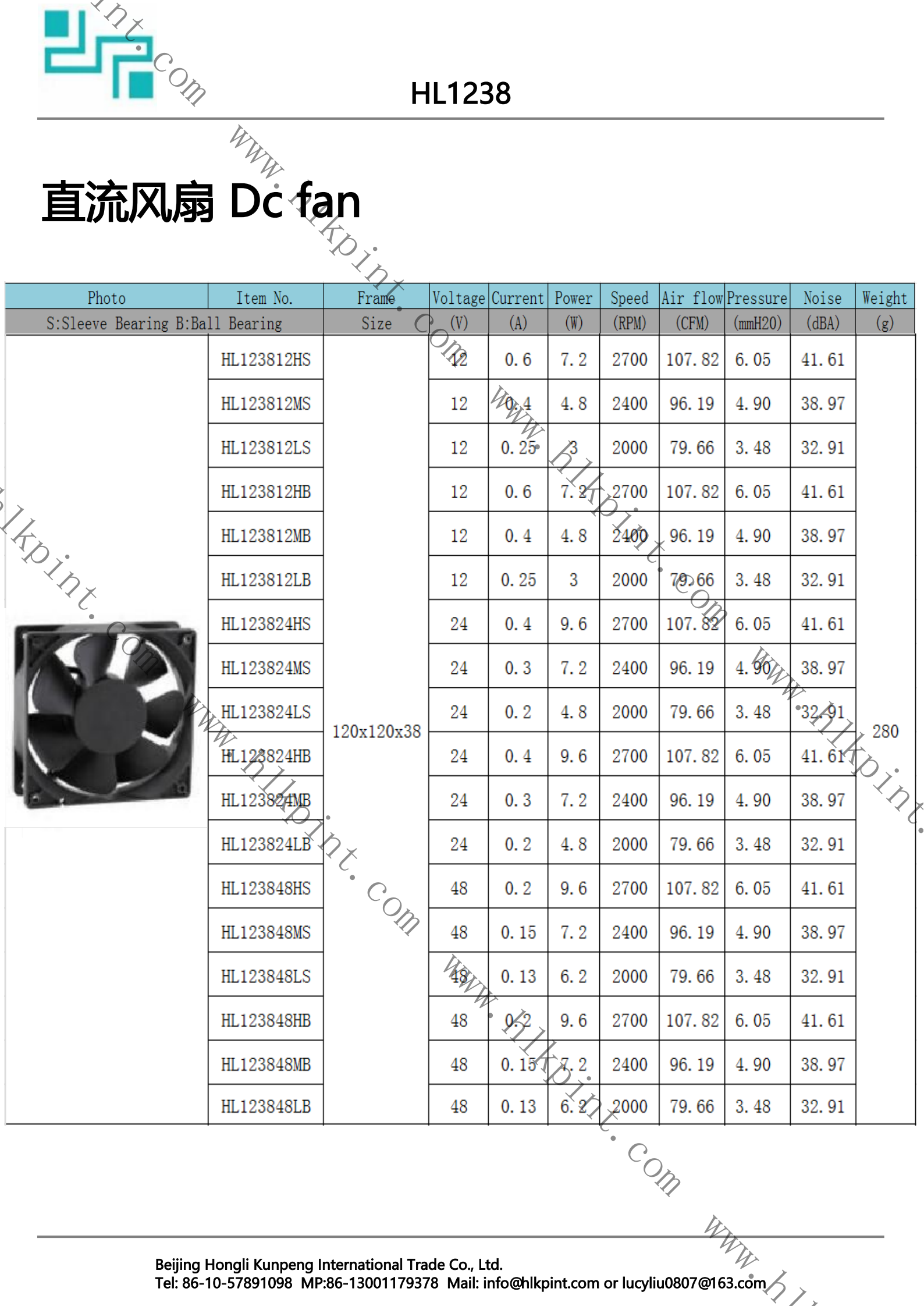

HL123812LB HL123812LB Dc fan 120X120X38 12 0.25 3 2000 79.66 3.48 32.91 280
HL123812MB HL123812MB Dc fan 120X120X38 12 0.4 4.8 2400 96.19 4.90 38.97 280
HL123812HB HL123812HB Dc fan 120X120X38 12 0.6 7.2 2700 107.82 6.05 41.61 280
HL123812LS HL123812LS Dc fan 120X120X38 12 0.25 3 2000 79.66 3.48 32.91 280
HL123812MS HL123812MS Dc fan 120X120X38 12 0.4 4.8 2400 96.19 4.90 38.97 280
HL123812HS HL123812HS Dc fan 120X120X38 12 0.6 7.2 2700 107.82 6.05 41.61 280

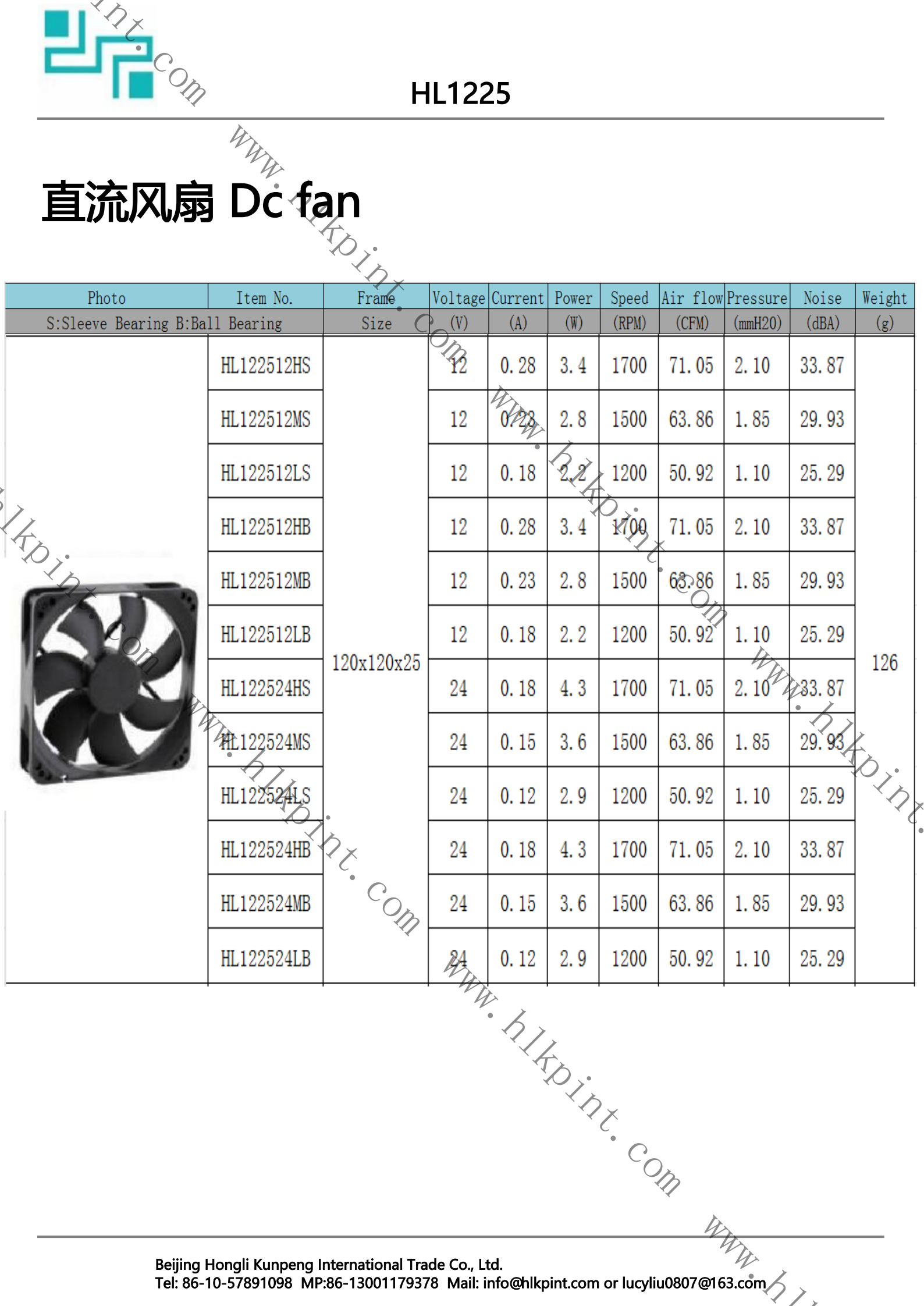

HL122524LB HL122524LB Dc fan 120X120X25 24 0.12 2.9 1200 50.92 1.10 25.29 126
HL122524MB HL122524MB Dc fan 120X120X25 24 0.15 3.6 1500 63.86 1.85 29.93 126
HL122524HB HL122524HB Dc fan 120X120X25 24 0.18 4.3 1700 71.05 2.10 33.87 126
HL122524LS HL122524LS Dc fan 120X120X25 24 0.12 2.9 1200 50.92 1.10 25.29 126
HL122524MS HL122524MS Dc fan 120X120X25 24 0.15 3.6 1500 63.86 1.85 29.93 126
HL122524HS HL122524HS Dc fan 120X120X25 24 0.18 4.3 1700 71.05 2.10 33.87 126
HL122512LB HL122512LB Dc fan 120X120X25 12 0.18 2.2 1200 50.92 1.10 25.29 126
HL122512MB HL122512MB Dc fan 120X120X25 12 0.23 2.8 1500 63.86 1.85 29.93 126
HL122512HB HL122512HB Dc fan 120X120X25 12 0.28 3.4 1700 71.05 2.10 33.87 126
HL122512LS HL122512LS Dc fan 120X120X25 12 0.18 2.2 1200 50.92 1.10 25.29 126
HL122512MS HL122512MS Dc fan 120X120X25 12 0.23 2.8 1500 63.86 1.85 29.93 126
HL122512HS HL122512HS Dc fan 120X120X25 12 0.28 3.4 1700 71.05 2.10 33.87 126

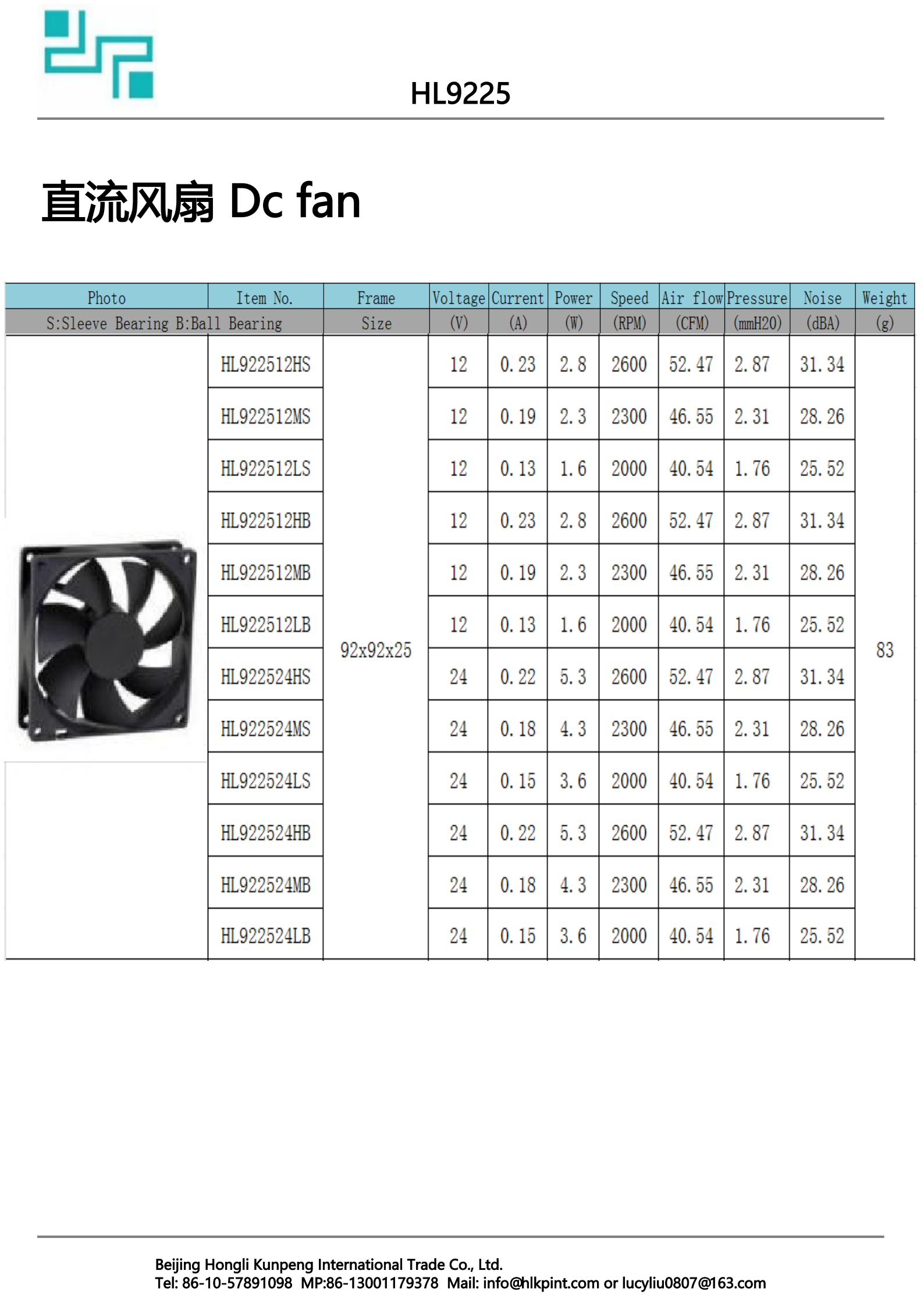

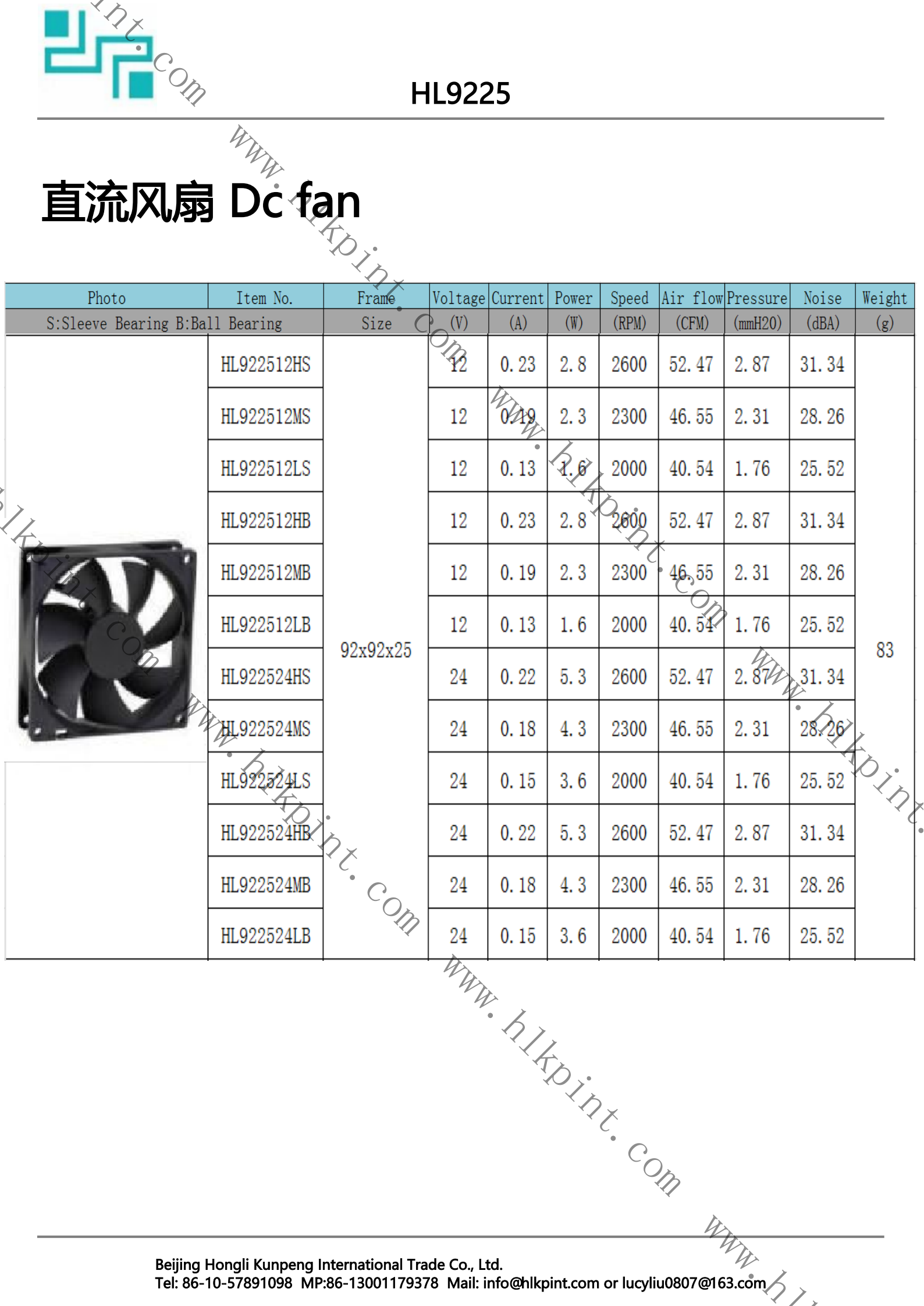

HL922524LB HL922524LB Dc fan 92x92x25 24 0.15 3.6 2000 40.54 1.76 25.52 83
HL922524MB HL922524MB Dc fan 9 24 0.18 4.3 2300 46.55 2.31 28.26 83
