We mainly produce Integrated inductors,Magnetic glue inductors, CD wound inductors,High-frequency stacked inductors, Magnetic beads, Ring inductors, l-shaped inductors,Common mode inductors and Act.
The products are widely used in Communication,Servers, High-tech electronics, Ships, Computers,Data transmission, audio video processing,and automotive electronic systems.
We can replace these brands completely: TDK,Murata, Sumida, Wurth, Panasonic, Sunlord and etc.
Our production capacity is 40KK per month.
| Part No. | Series | Inductance (μH) | Size code | Marking | Datasheet |
|---|---|---|---|---|---|
| HLTN252012-15uH/M | HL252012 | 15±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) |  |
|
| HLTN252012-12uH/M | HL252012 | 12±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-10uH/M | HL252012 | 10±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-8.2uH/M | HL252012 | 8.2±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-6.8uH/M | HL252012 | 6.8±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-5.6uH/M | HL252012 | 5.6±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-4.7uH/M | HL252012 | 4.7±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-3.3uH/M | HL252012 | 3.3±20% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-2.2uH/N | HL252012 | 2.2±30% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-1.5uH/N | HL252012 | 1.5±30% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-1.2uH/N | HL252012 | 1.2±30% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-1.0uH/N | HL252012 | 1.0±30% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-0.68uH/N | HL252012 | 0.68±30% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|
| HLTN252012-0.47uH/N | HL252012 | 0.47±30% | 2.5±0.25mm/2.0±0.25mm/1.25mm Max(LxWxH) | |
|

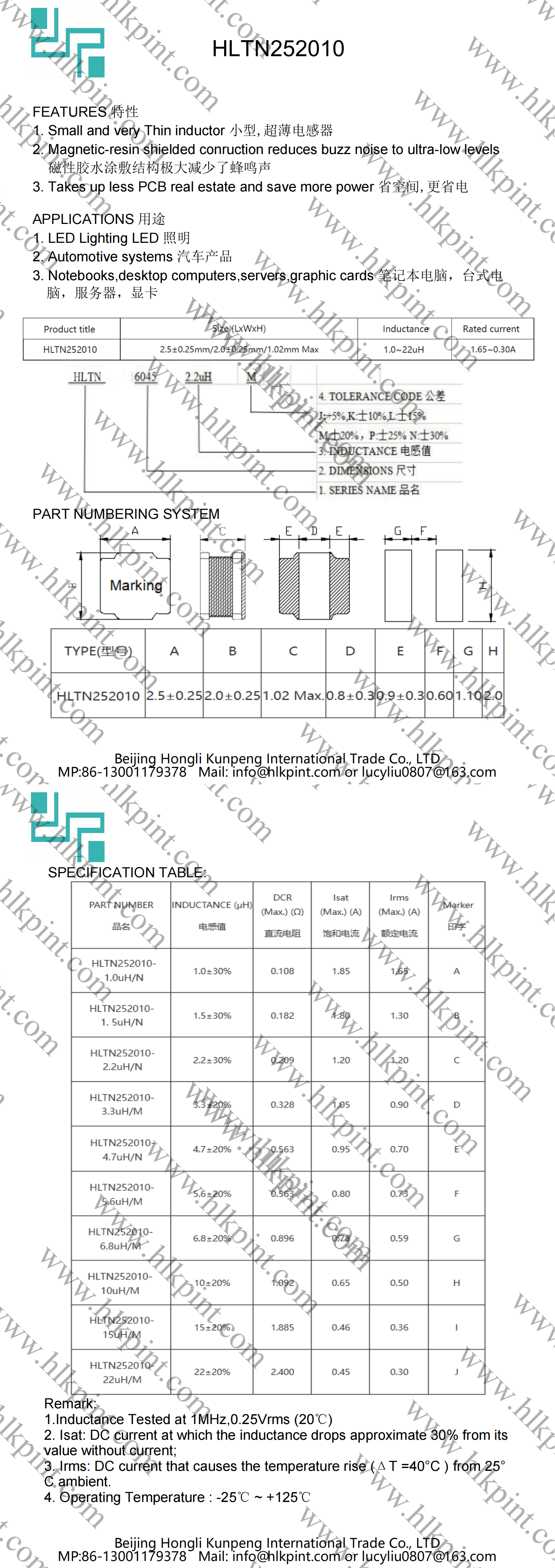

| HLTN252010-22uH/M | HL252010 | 22±20% | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-15uH/M | HL252010 | 15±20% | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-10uH/M | HL252010 | 10±20% | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-6.8uH/M | HL252010 | 6.8±20% | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-5.6uH/M | HL252010 | 5.6±20% | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
|
| HLTN252010-4.7uH/N | HL252010 | 4.7±20% | 2.5±0.25mm/2.0±0.25mm/1.02mm Max(LxWxH) | |
