The company's main products include the full range of DIP and SMD: quartz crystal resonators, quartz crystal oscillators, single crystal filters and separated components, ceramic series, surface acoustic wave series, etc.Can be developed according to customer needs. Products are widely used in mobile phones, Bluetooth, GPS, WiFi, automotive electronics, smart home, instrumentation, base stations, radar and microwave communication and other fields.All products comply with RoHS, REACH and other environmental regulations.
| Part NO. | Type | Photo | Dimension | Frequency Range | Datasheet |
|---|---|---|---|---|---|

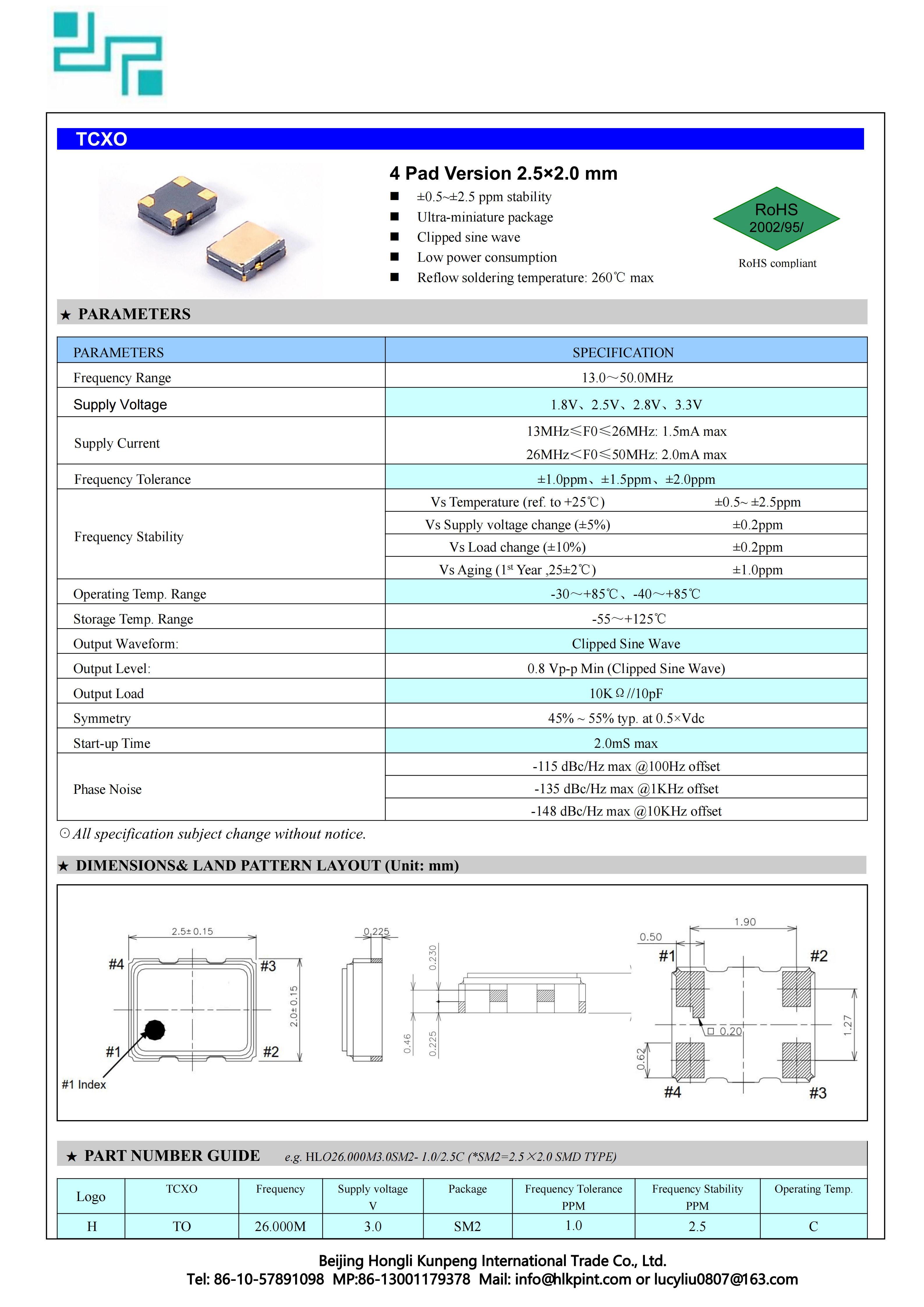

| TCXO SMD2520 | 4 PAD SEAM |  |
2.5×2.0×0.7 | 13.0～50.0MHz |  |

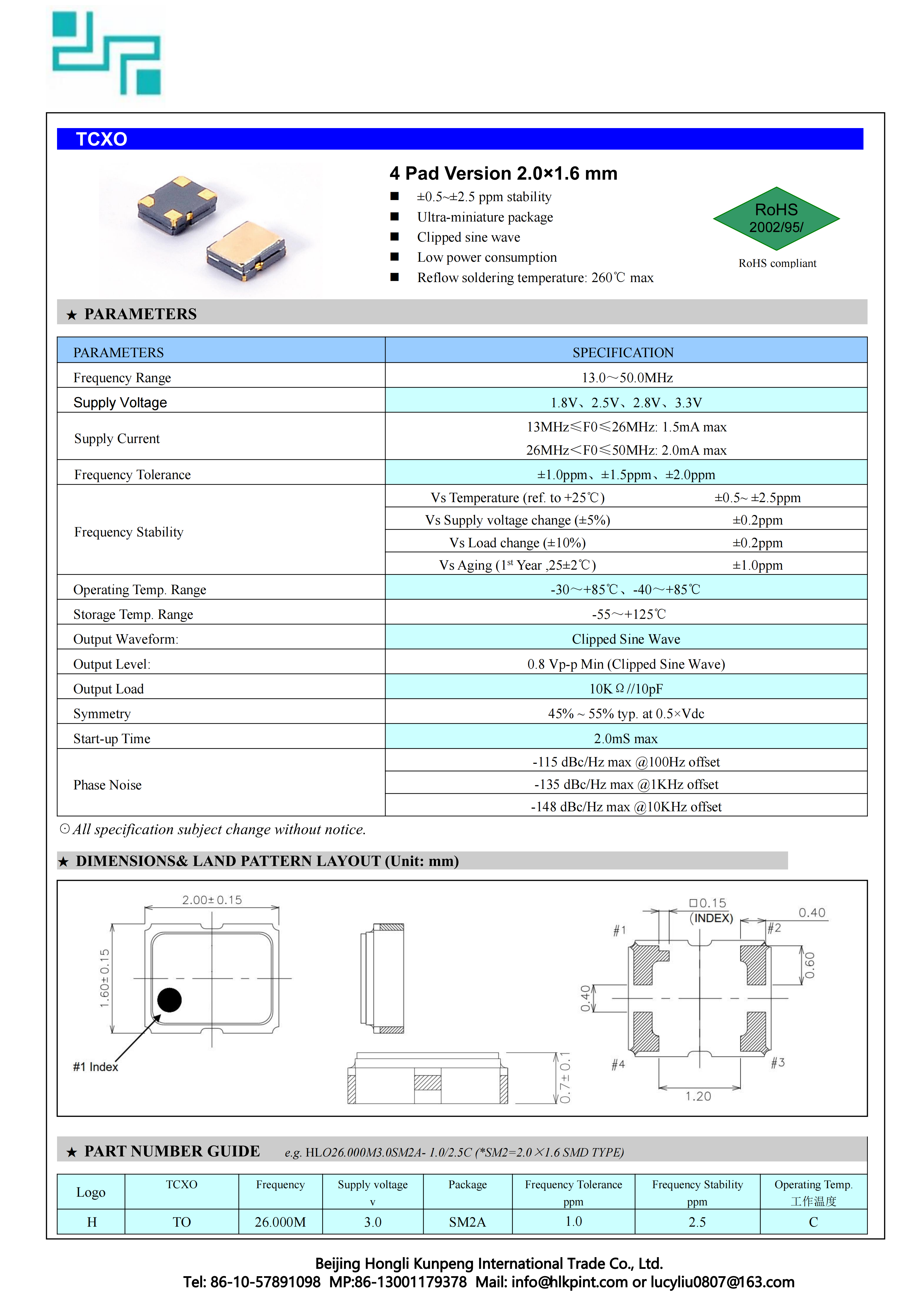

| TCXO SMD2016 | 4 PAD SEAM |  |
2.0×1.6×0.7 | 13.0～50.0MHz | |
| OSC-SMD2520 | 4 PAD SEAM |  |
2.5×2.0×0.95 | 2.0 MHz ~ 50.0 MHz | |

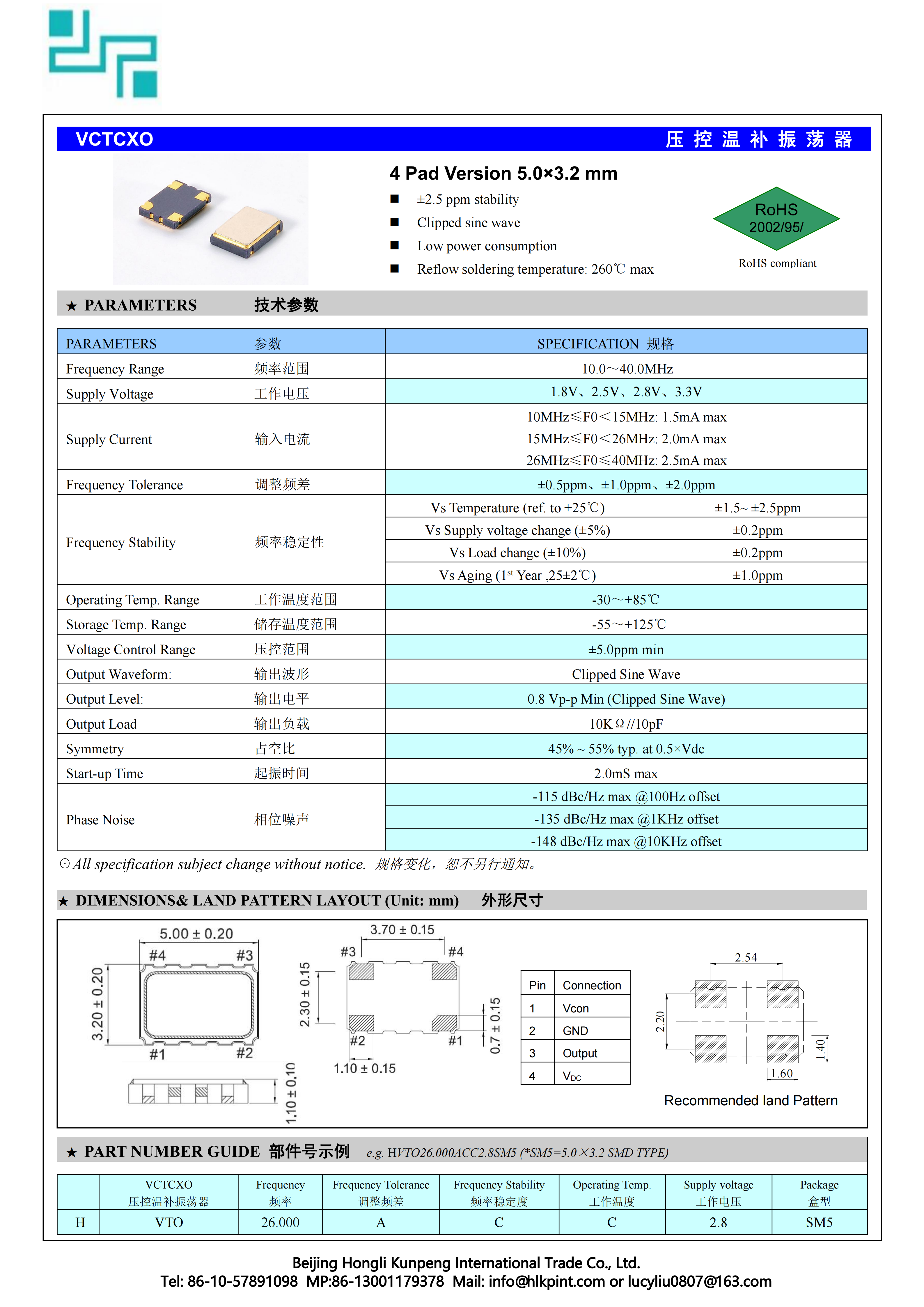

| VCTCXO SMD5032 | 4 PAD SEAM |  |
5.0×3.2×1.4 | 10.0MHz ~ 40.0MHz 13/19.2/26/38.4 Standard | |

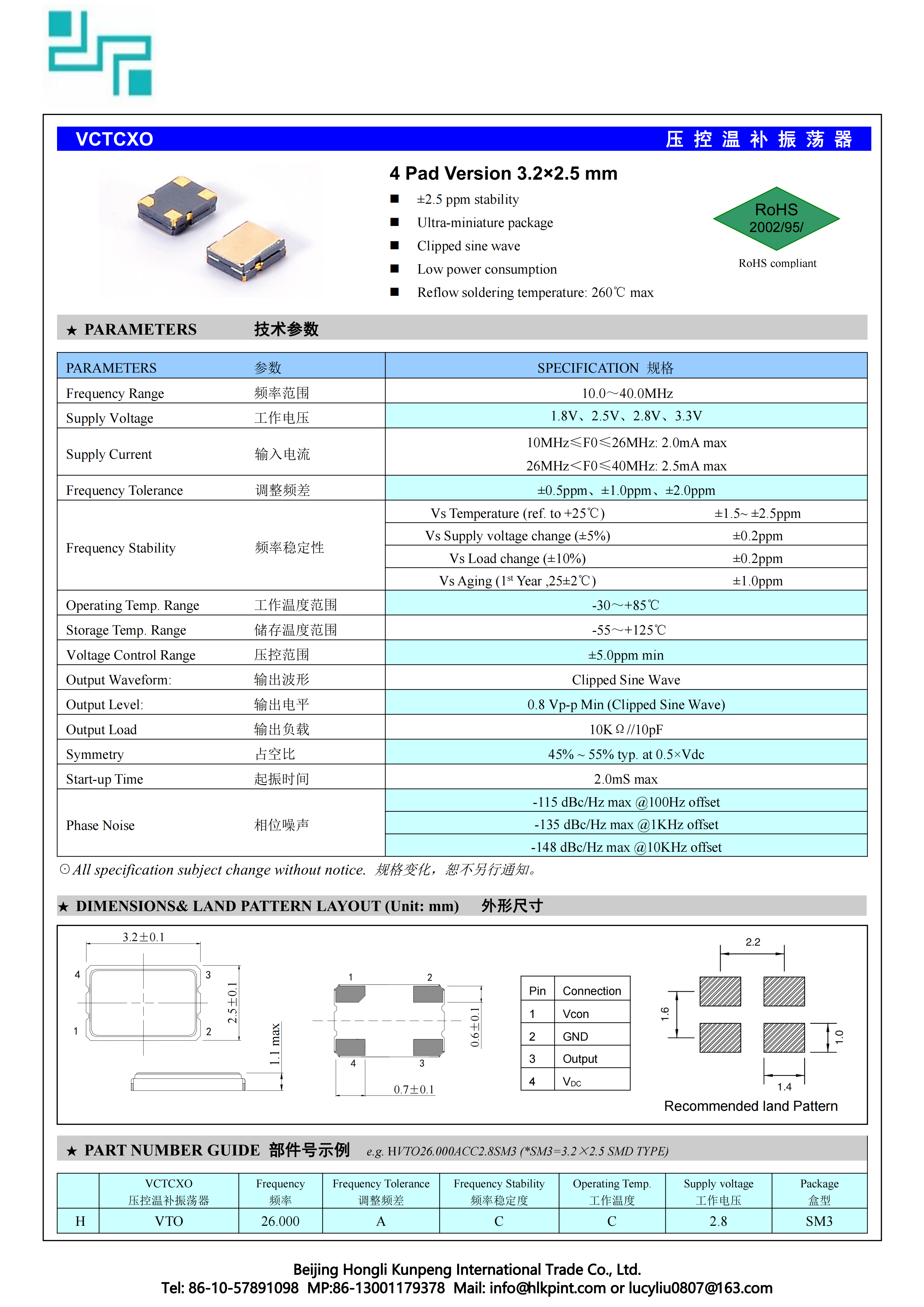

| VCTCXO SMD3225 | 4 PAD SEAM |  |
3.2×2.5×1.2 | 10.0MHz ~ 40.0MHz 13/19.2/26/38.4 Standard | |

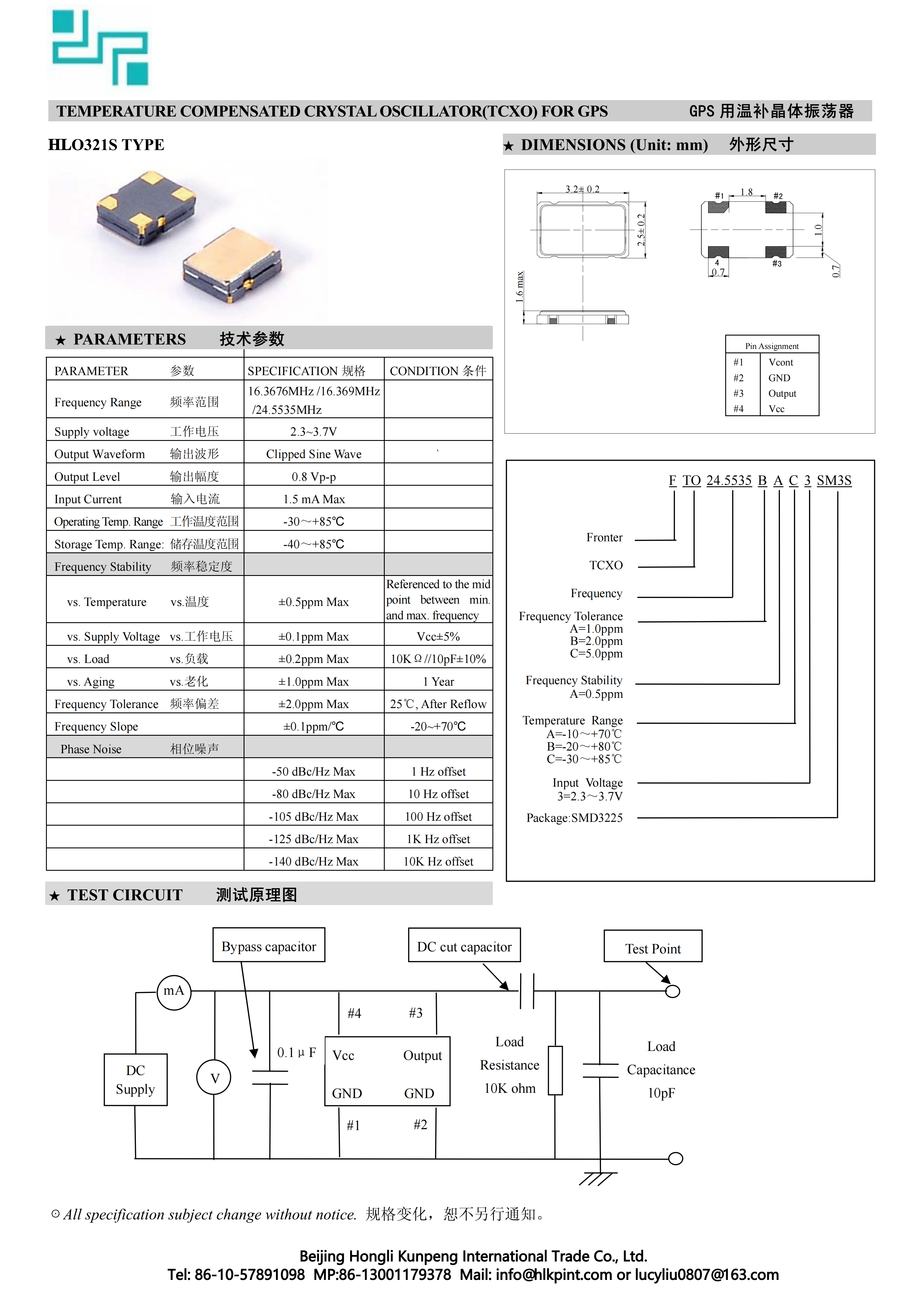

| TCXO SMD3225 | 4 PAD SEAM |  |
3.2×2.5×1.2 | 16.367667 /16.369 /26.000 /24.5535MHz Standard | |
| VCXO SMD5032 | 4 (6) PAD SEAM |  |
5.0×3.2×1.4 | 1.0MHz ~ 160.0MHz，32.768KHz | |
| VCXO SMD7050 | 4 (6) PAD SEAM |  |
7.0×5.0×1.6 | 1.0MHz ~ 160.0MHz，32.768KHz | |

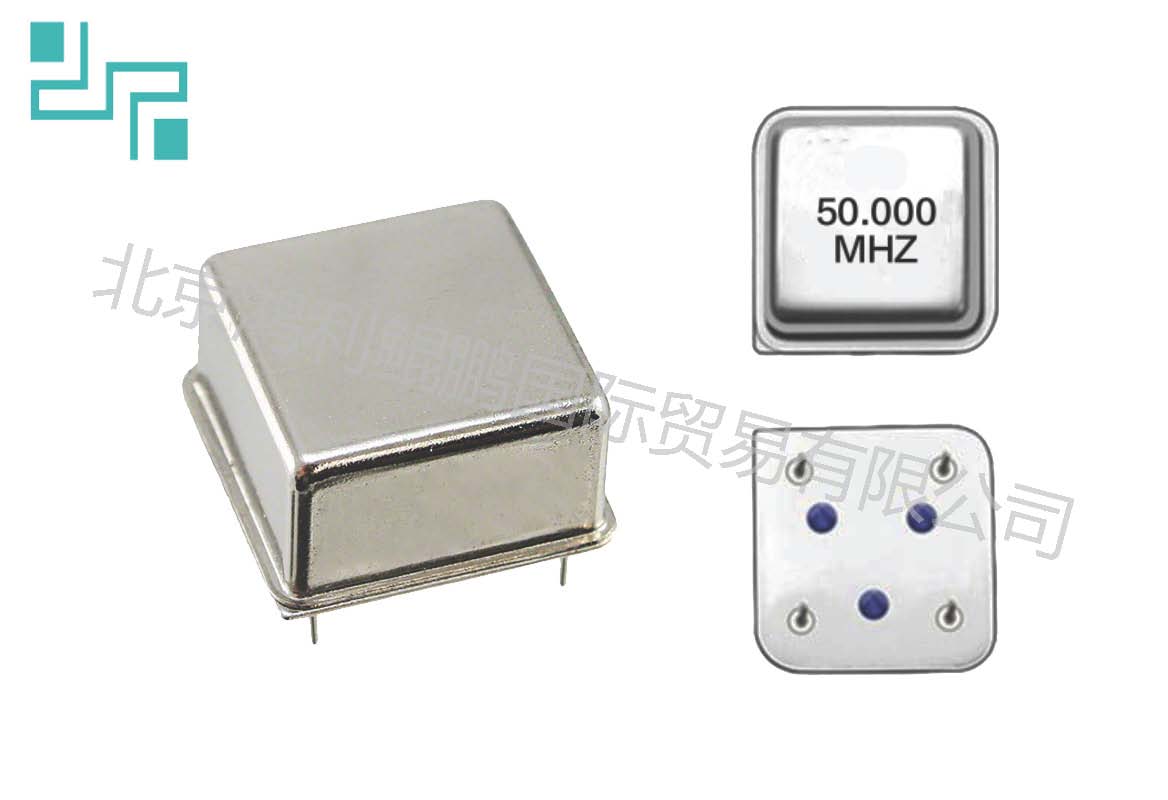

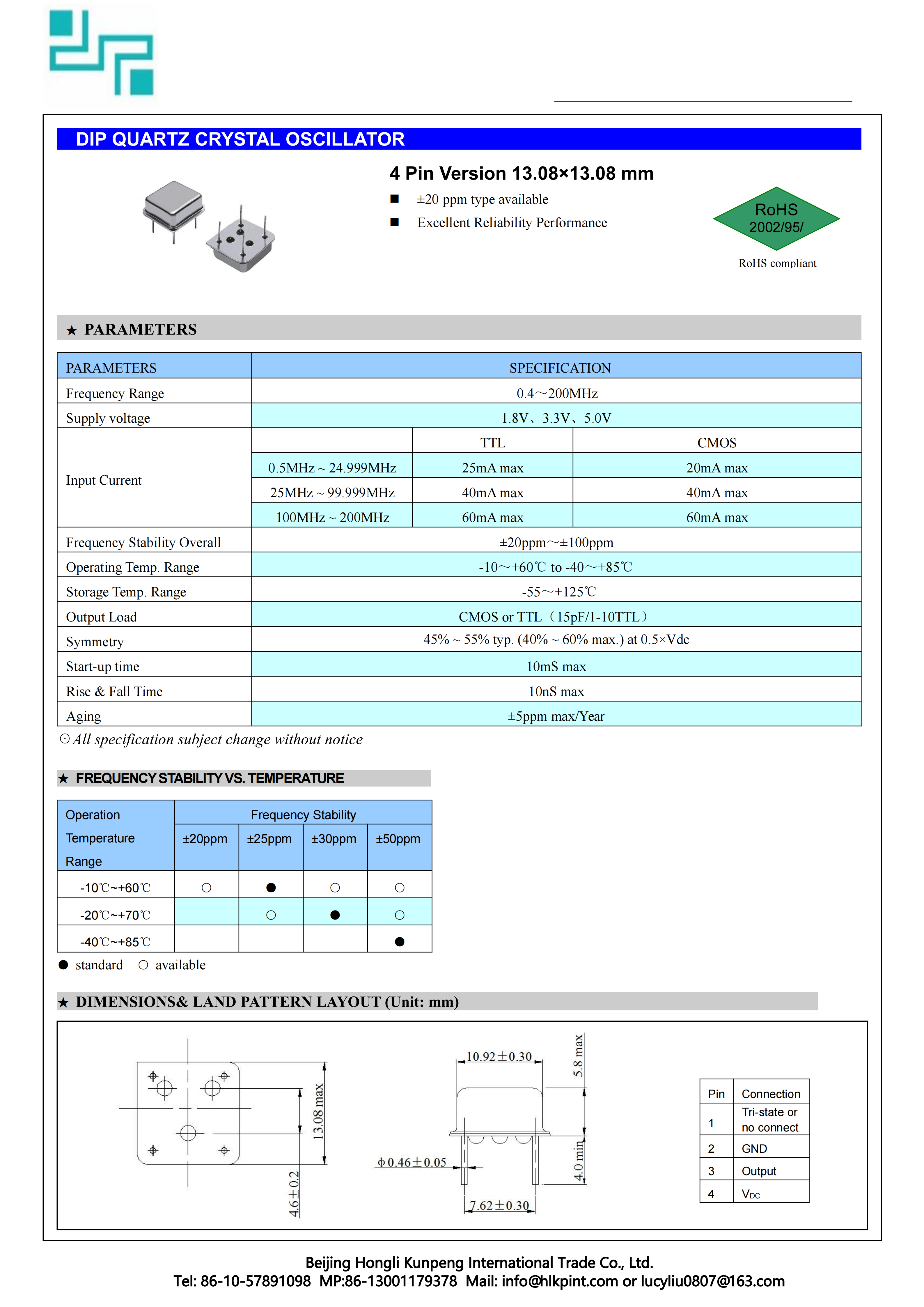

| DIP8 | 4 PIN |  |
13.2×13.2×5.08 | 1.0MHz ~ 125.0MHz | |

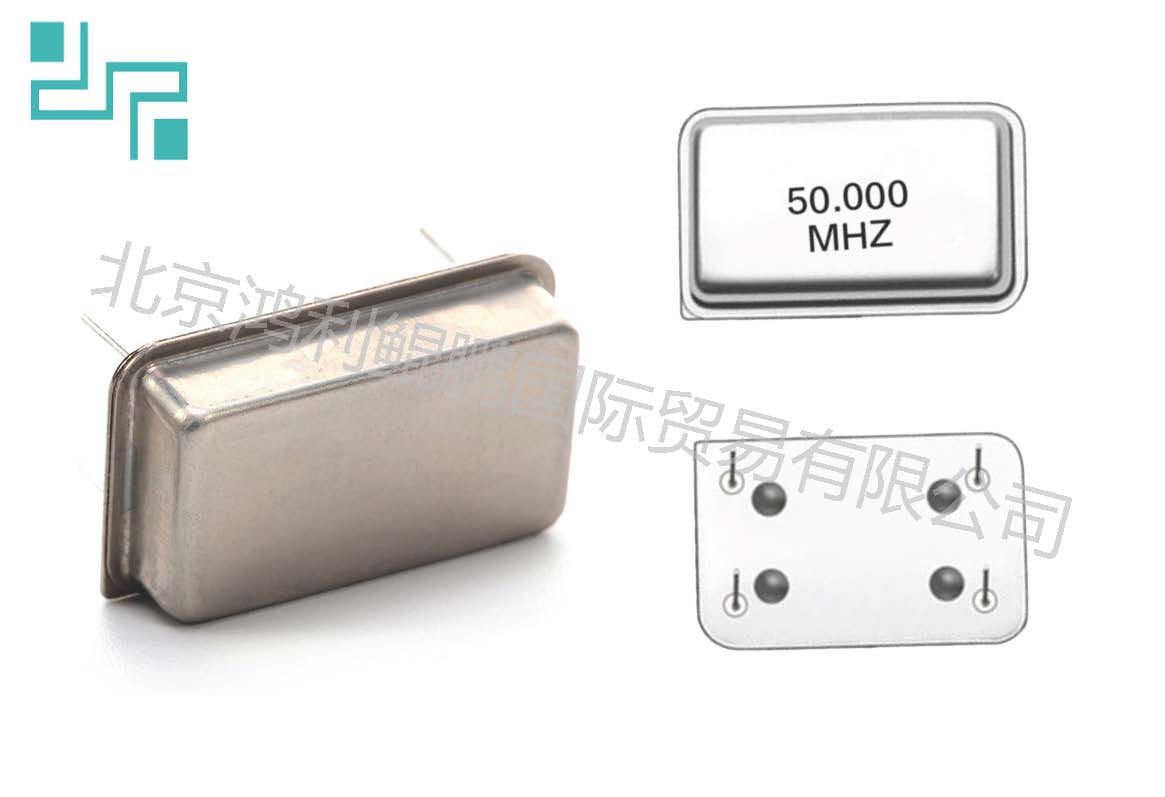

| DIP14 | 4 PIN |  |
20.7×13.2×5.08 | 1.0MHz ~ 125.0MHz | |
| OSC-SMD7050 | 4 (6) PAD SEAM |  |
7.0×5.0×1.4 | 1.0MHz ~ 125.0MHz，32.768KHz | |

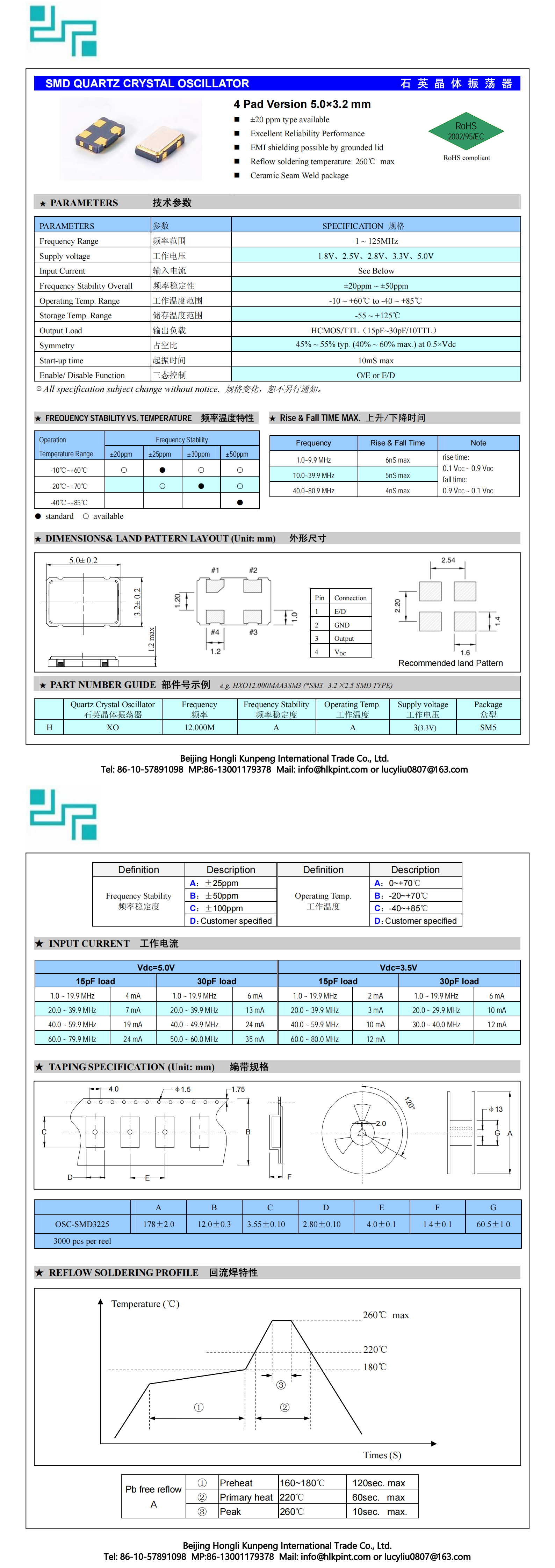

| OSC-SMD5032 | 4 (6) PAD SEAM |  |
5.0×3.2×1.2 | 1.0MHz ~ 125.0MHz 32.768KHz | |

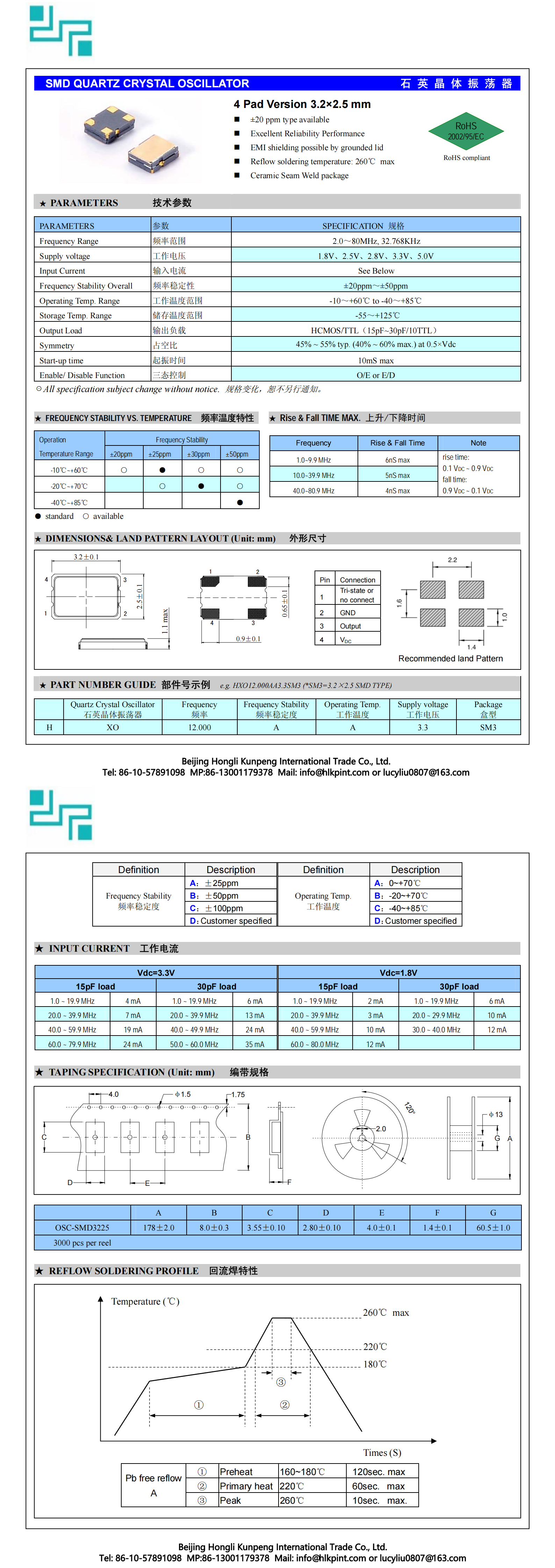

| OSC-SMD3225 | 4 PAD SEAM |  |
3.2×2.5×1.1 | 1.0MHz ~ 80.0MHz | |

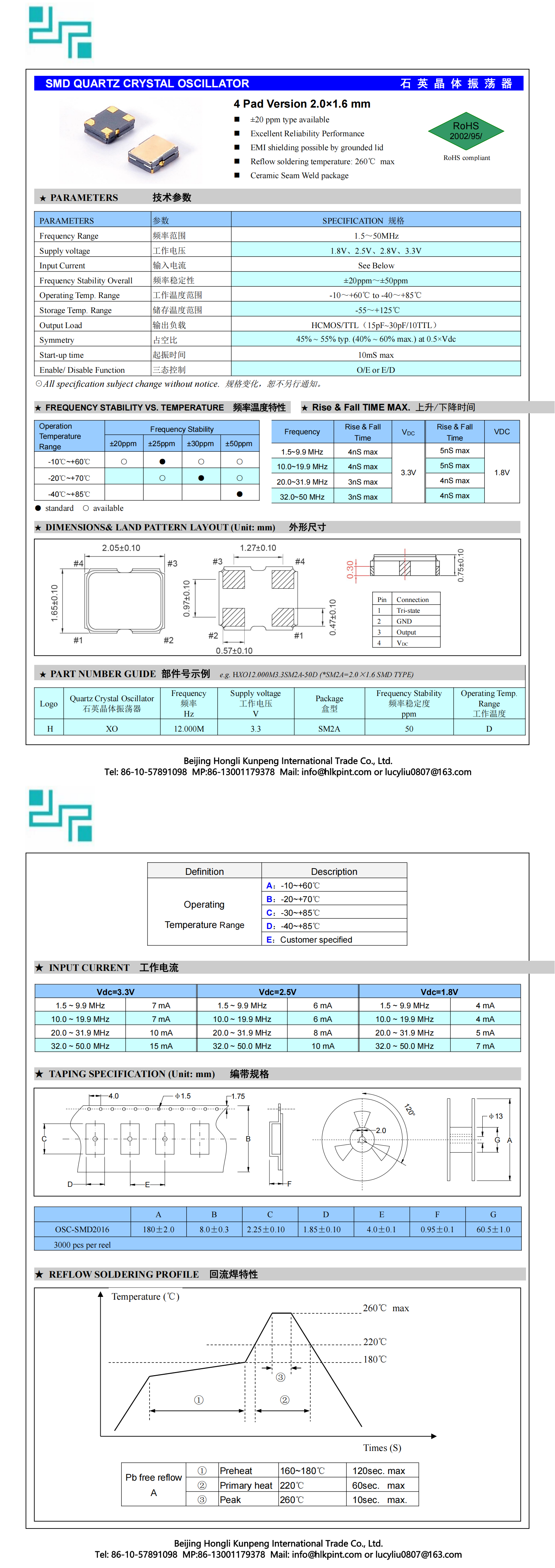

| OSC-SMD2016 | 4 pad |  |
2.0×1.6×0.75 | 2.0MHz ~ 50.0MHz，3.768Khz | |
