The company's main products include the full range of DIP and SMD: quartz crystal resonators, quartz crystal oscillators, single crystal filters and separated components, ceramic series, surface acoustic wave series, etc.Can be developed according to customer needs. Products are widely used in mobile phones, Bluetooth, GPS, WiFi, automotive electronics, smart home, instrumentation, base stations, radar and microwave communication and other fields.All products comply with RoHS, REACH and other environmental regulations.
| Part NO. | Type | Photo | Dimension | Frequency Range | Datasheet |
|---|---|---|---|---|---|
| Multi-Poles | 6 ~ 10 poles |  |
S-1/ S-2 L-1/ L-2/ L-3/ L-4 | 10.7, 21.4, 21.7, 45, 7.8 ~ 50.0MHz |  |
| UM-5 | 4 poles |  |
8.0×2.4×5.8 | 21.4, 21.7, 38.850, 45, 10.7~70.0MHz | |

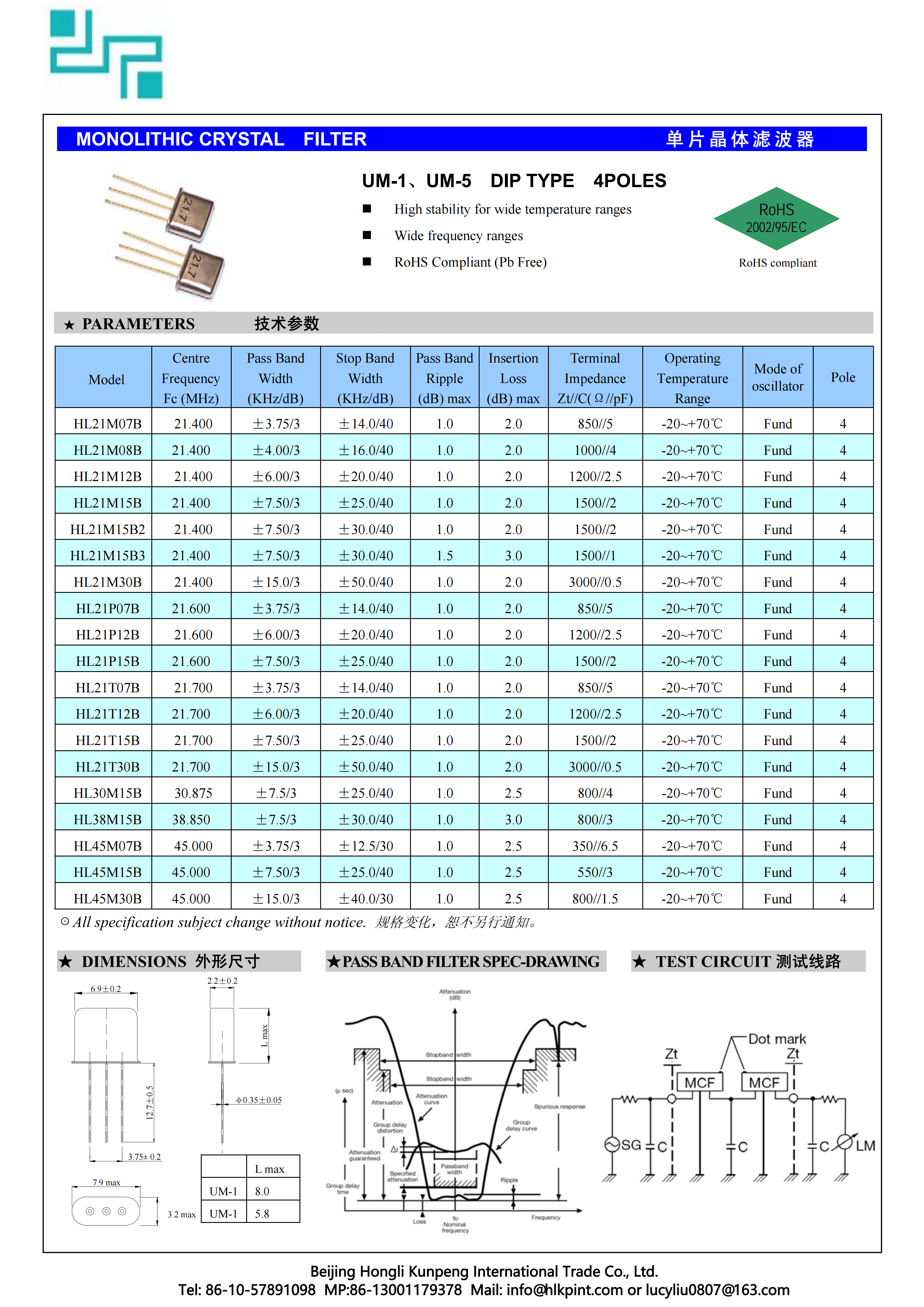

| UM-1 | 4 poles |  |
8.0×2.4×8.0 | 21.4, 21.7, 38.850, 45, 10.7~70.0MHz | |
| UM-5 | 2 Poles |  |
8.0×2.4×5.8 | 21.4, 21.7, 38.850, 45, 10.7 ~ 70.0MHz | |

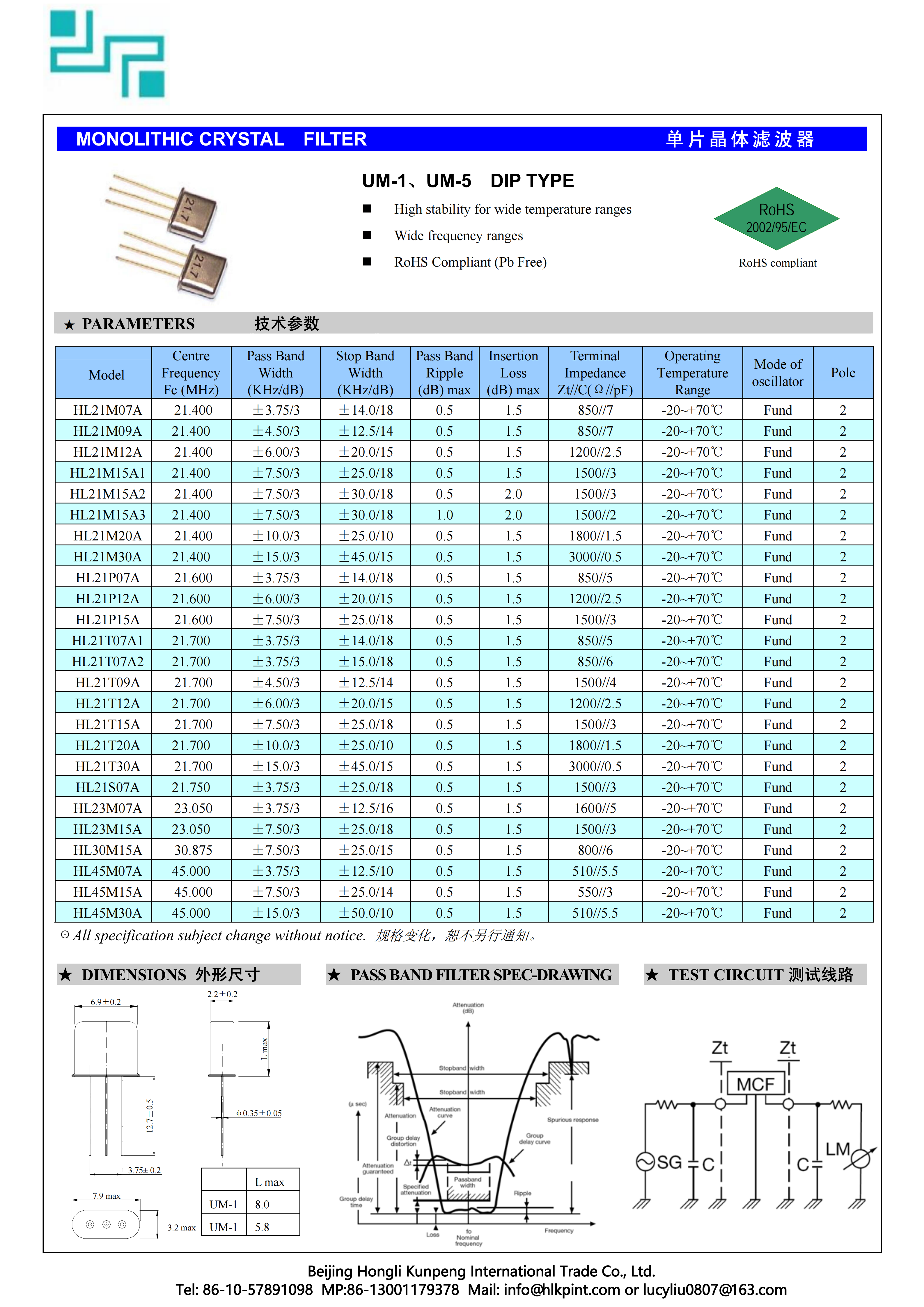

| UM-1 | 2 poles |  |
8.0×2.4×8.0 | 21.4, 21.7, 38.850, 45, 10.7 ~ 70.0MHz | |

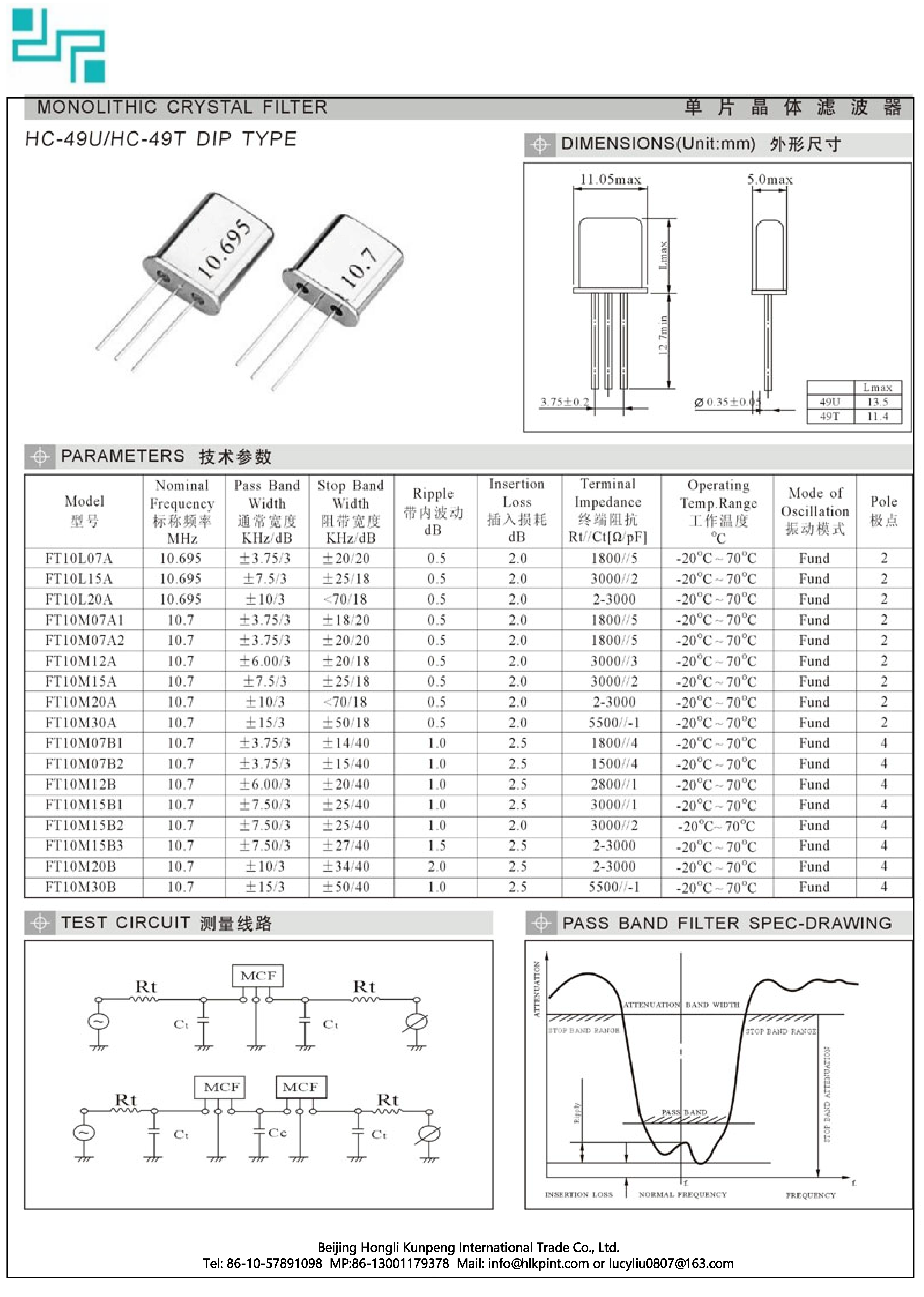

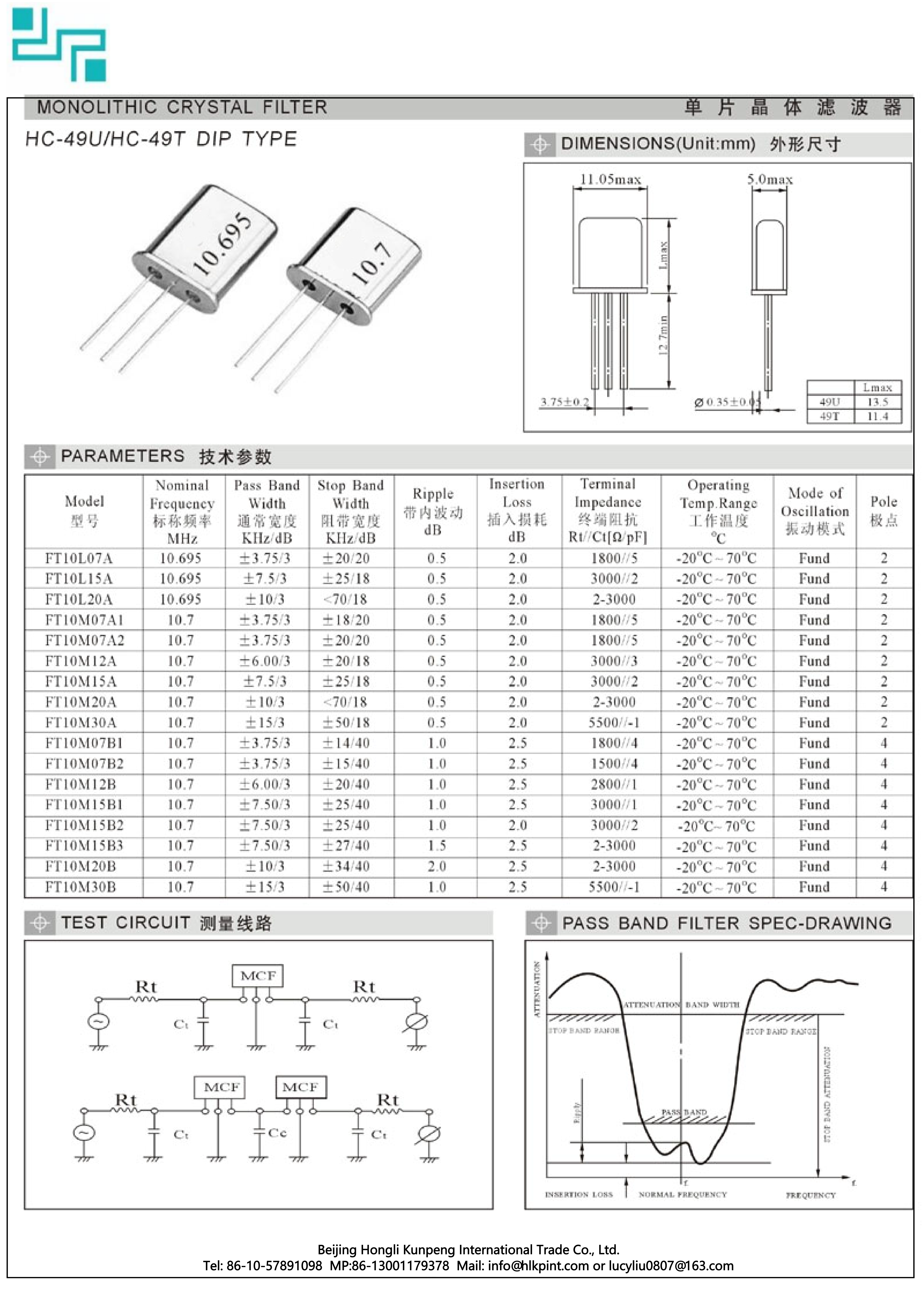

| HC-49T | 2 poles |  |
11.05×5.0×11.4 | 10, 10.695, 10.7 6.0 ~ 20.0MHz | |
| HC-49U | 2 poles |  |
11.05×5.0×13.5 | 10, 10.695, 10.7 6.0 ~ 20.0MHz | |
