Ceramic Filter 陶瓷滤波器

Overview

The company's main products include the full range of DIP and SMD: quartz crystal resonators, quartz crystal oscillators, single crystal filters and separated components, ceramic series, surface acoustic wave series, etc.Can be developed according to customer needs. Products are widely used in mobile phones, Bluetooth, GPS, WiFi, automotive electronics, smart home, instrumentation, base stations, radar and microwave communication and other fields.All products comply with RoHS, REACH and other environmental regulations.

Product list

Part NO. Type Photo Dimension Frequency Range Datasheet

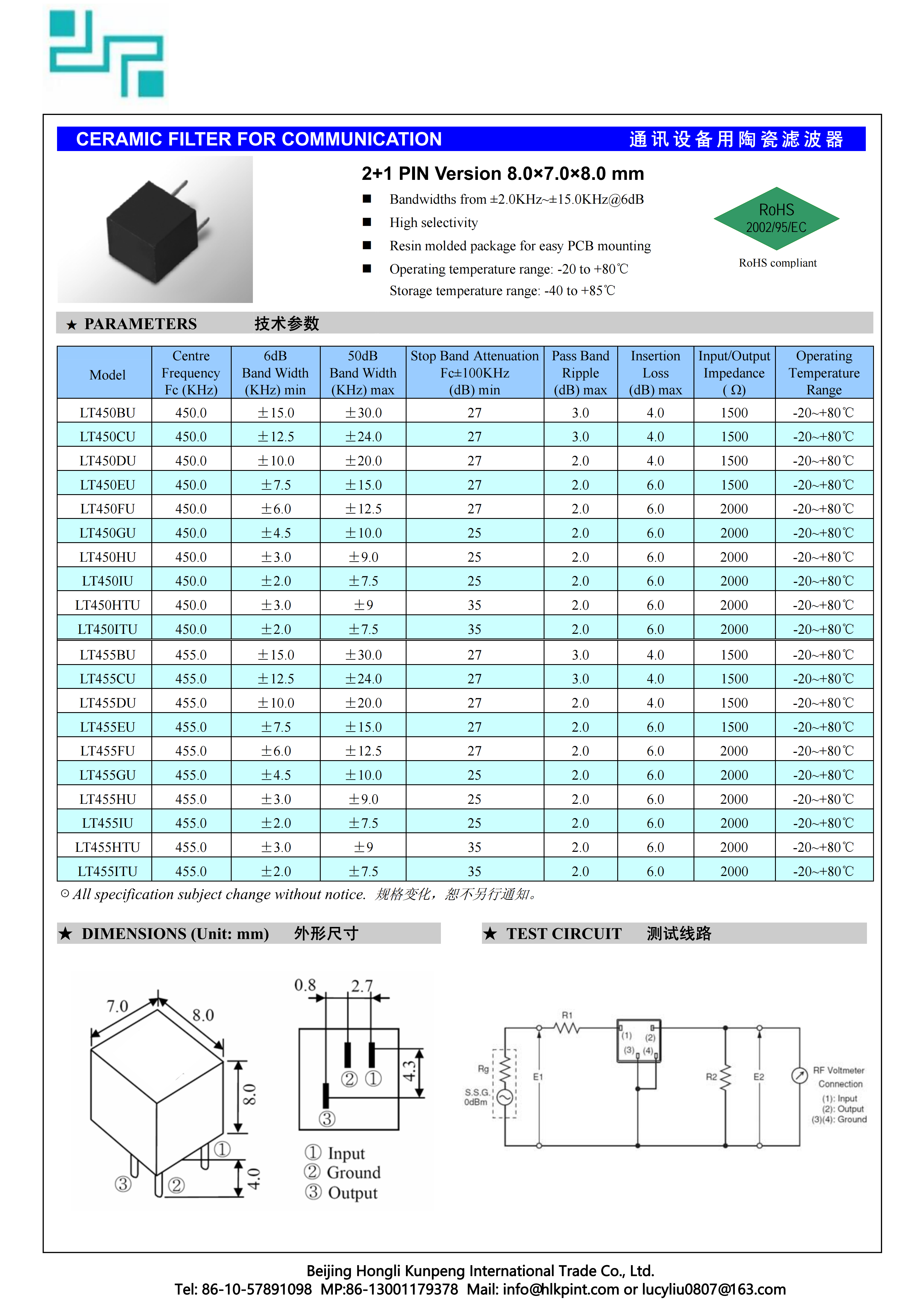

LT450/455U 3 PIN LT450/455U 8.0×7.0×8.0 450KHz / 455KHz
LTM450/455U 4 PIN LTM450/455U 6.5×6.5×6.2 450KHz / 455KHz

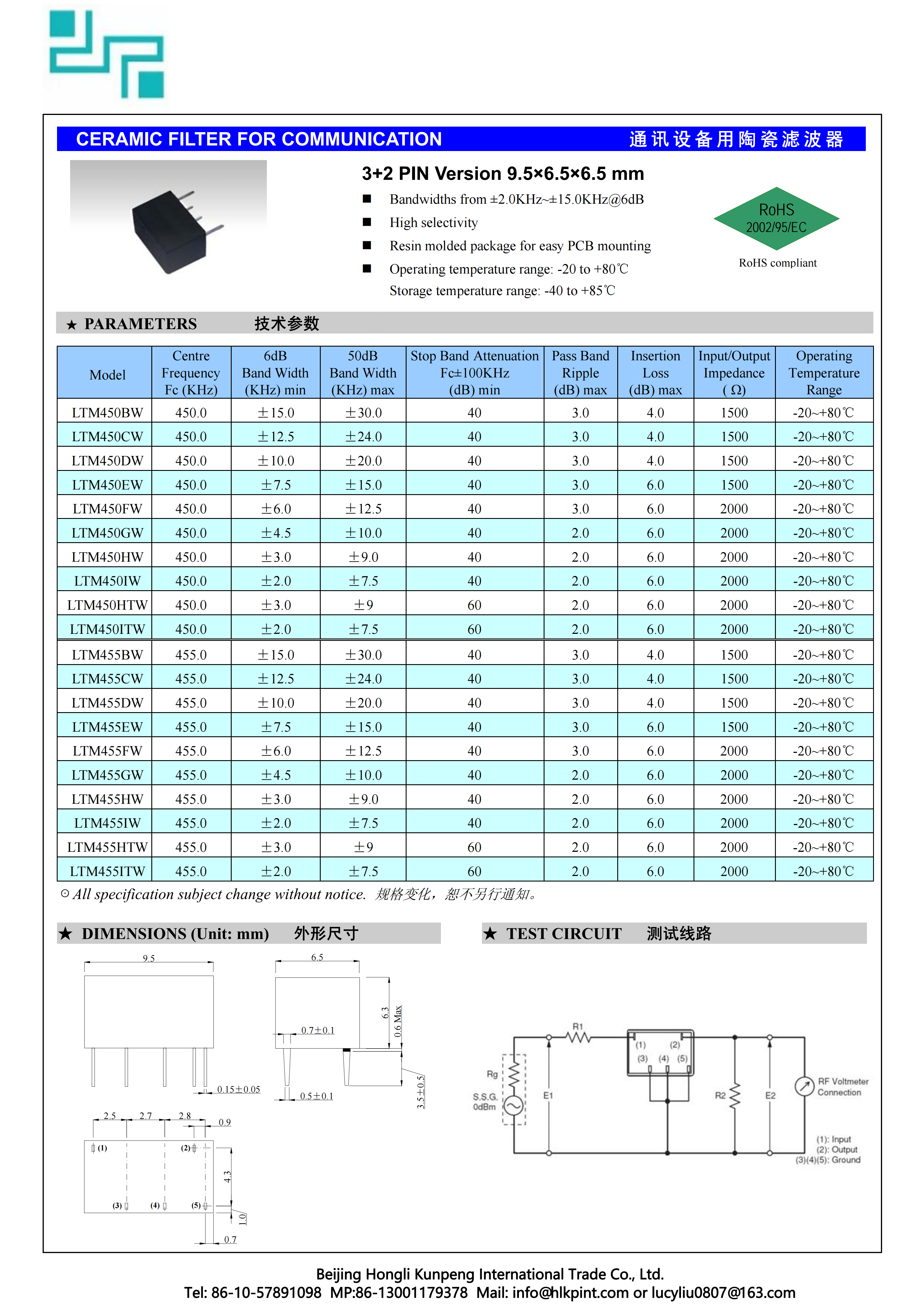

LTM450/455W 5 PIN LTM450/455W 9.5×6.5×6.3 450KHz / 455KHz
LT450/455W 5 PIN LT450/455W 11.0×7.0×8.0 450KHz / 455KHz

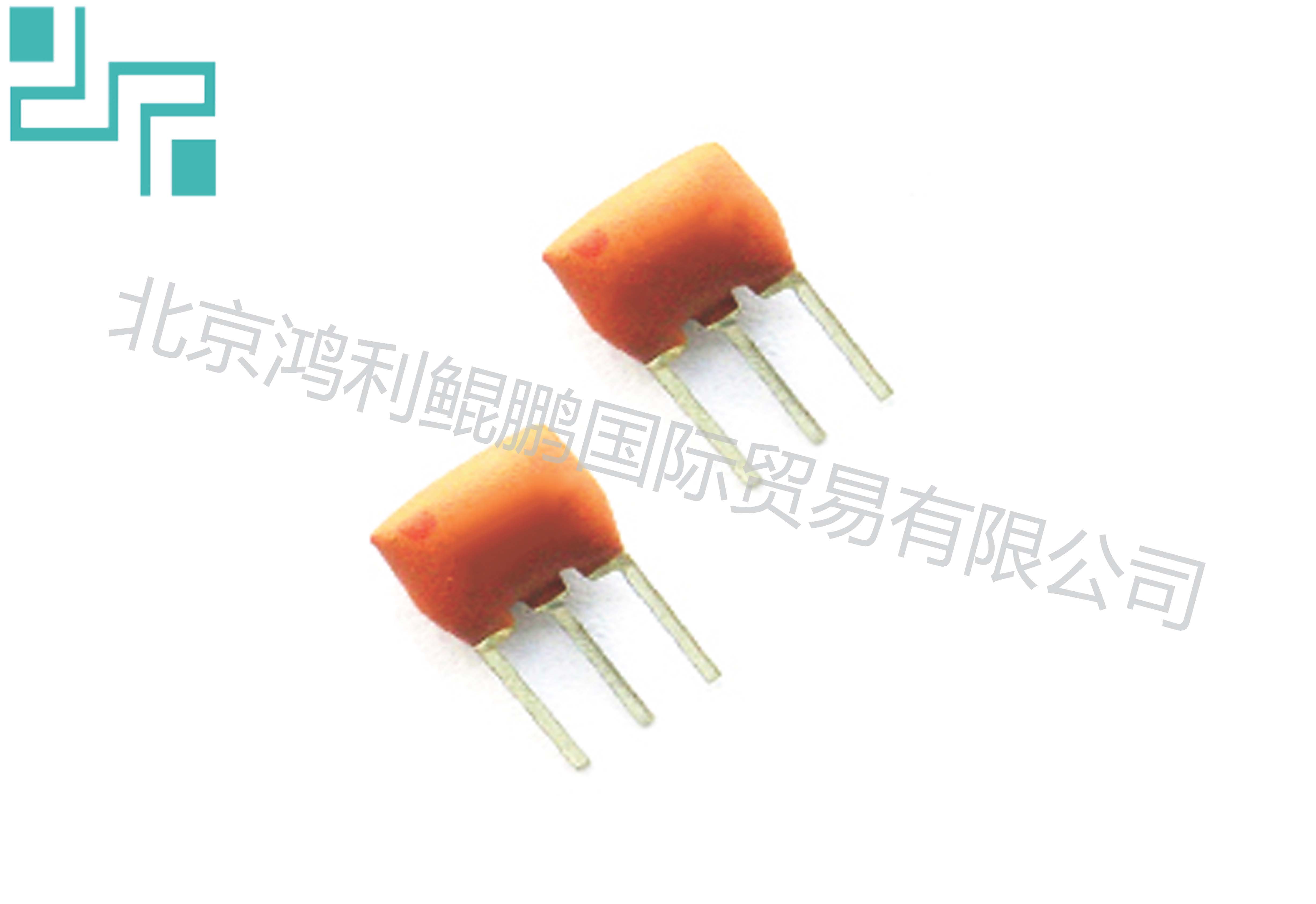

LT10.7 SERIES 2 PIN LT10.7 SERIES 8.0×5.0×8.0 10.7MHz
