支架风扇 Support fan

Overview

Our products are mainly focusing on customization, providing cooling fans of different sizes and air volumes according to customers' heat dissipation needs. According to the structure, we can divide it into two types: one is a double ball structure with a lifetime of 50000 hours, and the other is a hydraulic structure with a lifetime of 20000 hours. Distinguished from its appearance: square fan, bracket fan, blower, and AC fan. There are over 300 styles.

Product list

Photo Part NO. Type Frame Size Voltage
(V)
Current
(A)
Power
(W)
Speed
(RPM)
Air flow
(CFM)
Pressure
(mmH20)
Noise
(dBA)
Weight
(g)

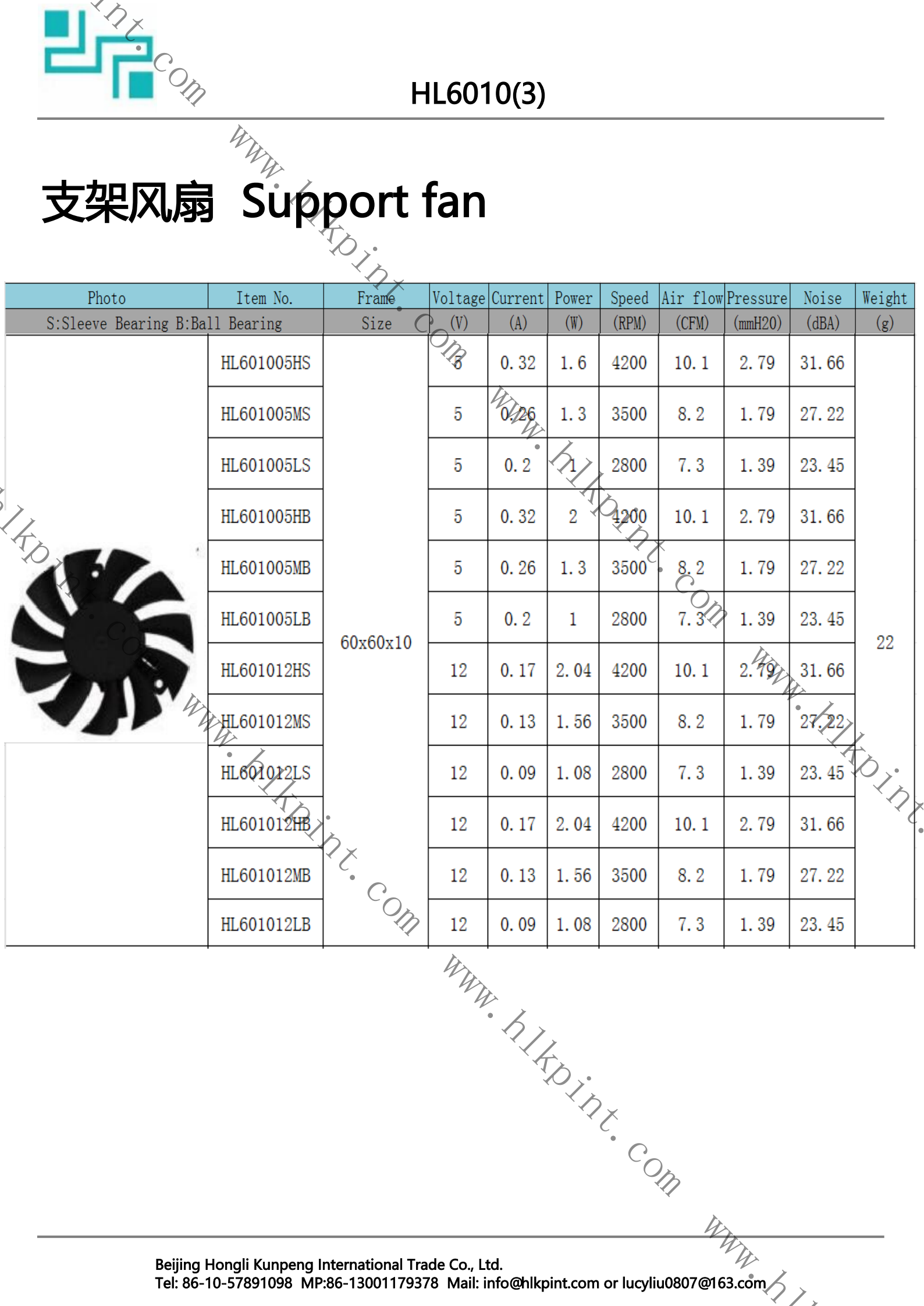

Datasheet
HL601005HB HL601005HB Support Fan 60X60X10 5 0.32 2 4200 10.1 2.79 31.66 22
HL601005LS HL601005LS Support Fan 60X60X10 5 0.2 1 2800 7.3 1.39 23.45 22
HL601005MS HL601005MS Support Fan 60X60X10 5 0.26 1.3 3500 8.2 1.79 27.22 22
HL601005HS HL601005HS Support Fan 60X60X10 5 0.32 1.6 4200 10.1 2.79 31.66 22
HL601012LB HL601012LB Support Fan 60X60X10 12 0.09 1.08 2800 6.8 1.39 23.45 21
HL601012MB HL601012MB Support Fan 60X60X10 12 0.13 1.56 3500 7.8 1.79 27.22 21
HL601012HB HL601012HB Support Fan 60X60X10 12 0.17 2.04 4200 9.8 2.79 31.66 21
HL601012LS HL601012LS Support Fan 60X60X10 12 0.09 1.08 2800 6.8 1.39 23.45 21
HL601012MS HL601012MS Support Fan 60X60X10 12 0.13 1.56 3500 7.8 1.79 27.22 21
HL601012HS HL601012HS Support Fan 60X60X10 12 0.17 2.04 4200 9.8 2.79 31.66 21
HL601005LB HL601005LB Support Fan 60X60X10 5 0.2 1 2800 6.8 1.39 23.45 21
HL601005MB HL601005MB Support Fan 60X60X10 5 0.26 1.3 3500 7.8 1.79 27.22 21
HL601005HB HL601005HB Support Fan 60X60X10 5 0.32 2 4200 9.8 2.79 31.66 21
HL601005LS HL601005LS Support Fan 60X60X10 5 0.2 1 2800 6.8 1.39 23.45 21
HL601005MS HL601005MS Support Fan 60X60X10 5 0.26 1.3 3500 7.8 1.79 27.22 21
HL601005HS HL601005HS Support Fan 60X60X10 5 0.32 1.6 4200 9.8 2.79 31.66 21
HL601012LB HL601012LB Support Fan 60X60X10 12 0.13 1.6 3500 14.35 1.95 27.22 24
HL601012MB HL601012MB Support Fan 60X60X10 12 0.17 2 4200 17.74 2.86 31.66 24
HL601012HB HL601012HB Support Fan 60X60X10 12 0.23 2.8 5000 21.46 3.94 36.08 24
HL601012LS HL601012LS Support Fan 60X60X10 12 0.13 1.6 3500 14.35 1.95 27.22 24
