支架风扇 Support fan

Overview

Our products are mainly focusing on customization, providing cooling fans of different sizes and air volumes according to customers' heat dissipation needs. According to the structure, we can divide it into two types: one is a double ball structure with a lifetime of 50000 hours, and the other is a hydraulic structure with a lifetime of 20000 hours. Distinguished from its appearance: square fan, bracket fan, blower, and AC fan. There are over 300 styles.

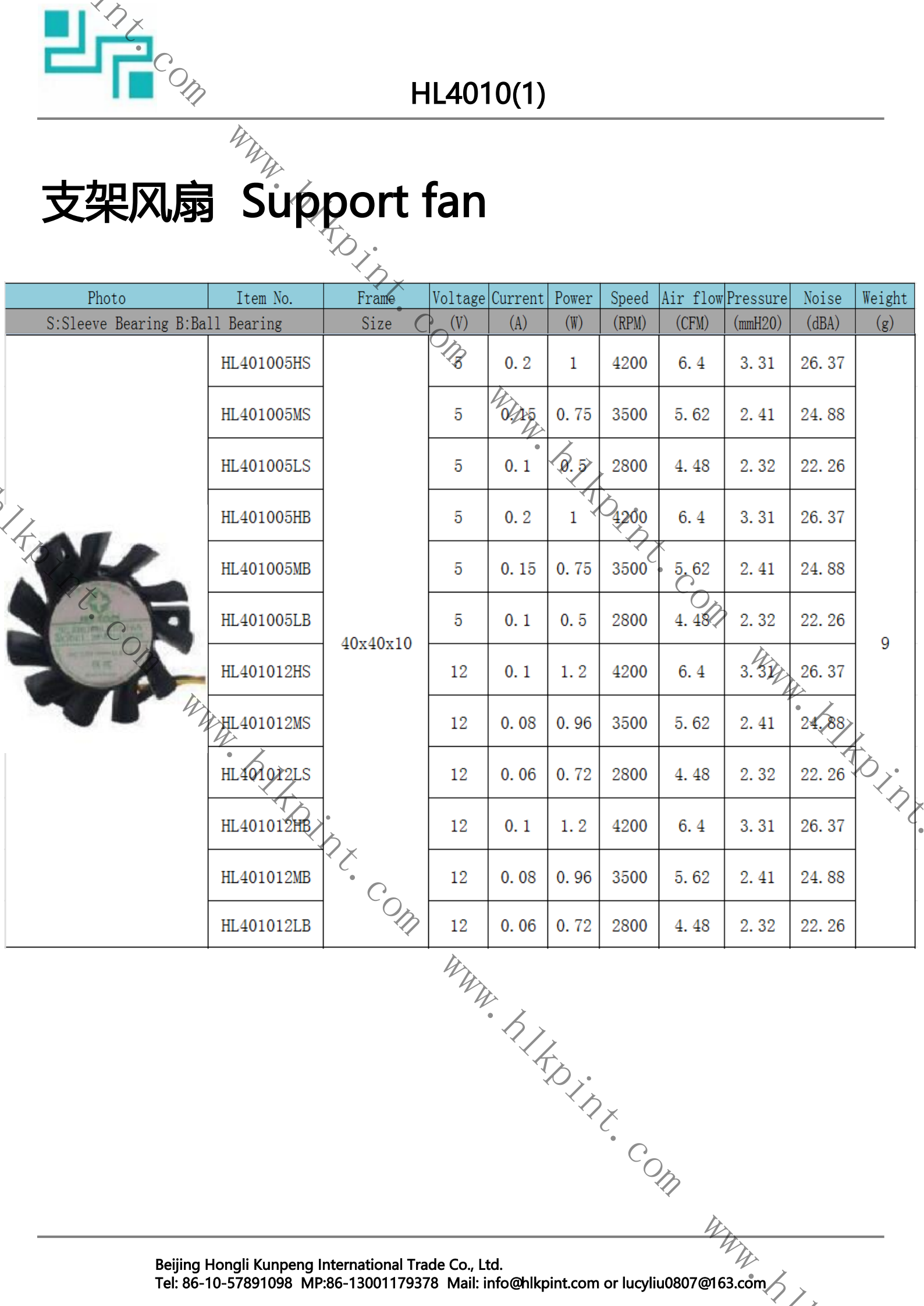

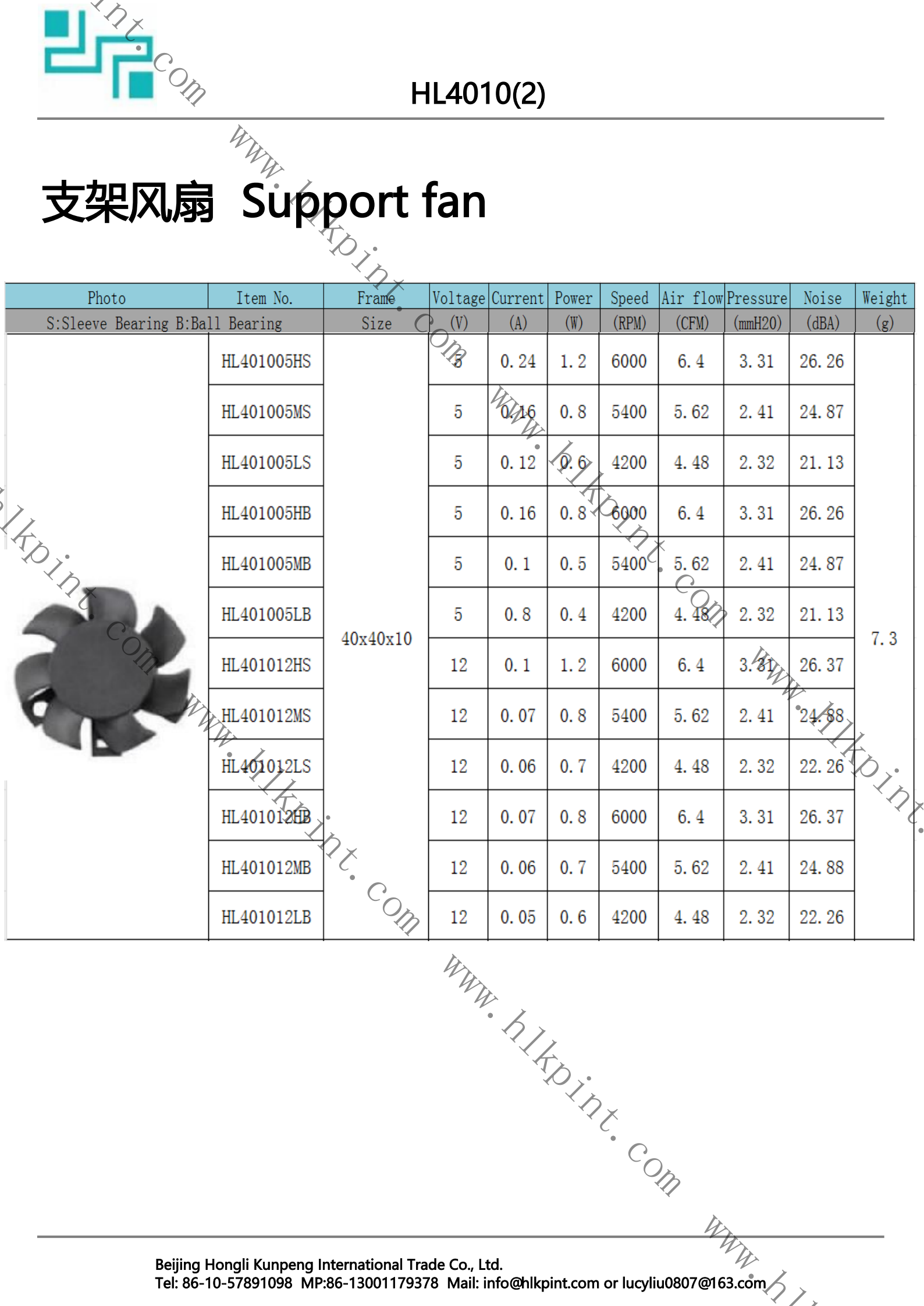

Product list

Photo Part NO. Type Frame Size Voltage
(V)
Current
(A)
Power
(W)
Speed
(RPM)
Air flow
(CFM)
Pressure
(mmH20)
Noise
(dBA)
Weight
(g)
Datasheet
HL401005LB HL401005LB Support Fan 40X40X10 5 0.8 0.4 4200 4.48 2.32 21.13 7.3
HL401005MB HL401005MB Support Fan 40X40X10 5 0.1 0.5 5400 5.62 2.41 24.87 7.3
HL401005HB HL401005HB Support Fan 40X40X10 5 0.16 0.8 6000 6.4 3.31 26.26 7.3
HL401005LS HL401005LS Blower Fan 40X40X10 5 0.12 0.6 4200 4.48 2.32 21.13 7.3
HL401005MS HL401005MS Blower Fan 40X40X10 5 0.16 1.8 5400 5.62 2.41 24.87 7.3
HL401005HS HL401005HS Blower Fan 40X40X10 5 0.24 1.2 6000 6.4 3.31 26.26 7.3
HL401012LB HL401012LB Support Fan 40X40X10 12 0.06 0.72 2800 4.48 2.32 22.26 9
HL401012MB HL401012MB Support Fan 40X40X10 12 0.08 0.96 3500 5.62 2.41 24.88 9
HL401012HB HL401012HB Support Fan 40X40X10 12 0.1 1.2 4200 6.4 3.31 26.37 9
HL401012LS HL401012LS Support Fan 40X40X10 12 0.06 0.72 2800 4.48 2.32 22.26 9
HL401012MS HL401012MS Support Fan 40X40X10 12 0.08 0.96 3500 5.62 2.41 24.88 9
HL401012HS HL401012HS Support Fan 40X40X10 12 0.1 1.2 4200 6.4 3.31 26.37 9
HL401005LB HL401005LB Support Fan 40X40X10 5 0.1 0.5 2800 4.48 2.32 22.26 9
HL401005MB HL401005MB Support Fan 40X40X10 5 0.15 0.75 3500 5.62 2.41 24.88 9
HL401005HB HL401005HB Support Fan 40X40X10 5 0.2 1 4200 6.4 3.31 26.37 9
HL401005LS HL401005LS Support Fan 40X40X10 5 0.1 0.5 2800 4.48 2.32 22.26 9
HL401005MS HL401005MS Support Fan 40X40X10 5 0.15 0.75 3500 5.62 2.41 24.88 9
HL401005HS HL401005HS Support Fan 40X40X10 5 0.2 1 4200 6.4 3.31 26.37 9
