We mainly produce Integrated inductors,Magnetic glue inductors, CD wound inductors,High-frequency stacked inductors, Magnetic beads, Ring inductors, l-shaped inductors,Common mode inductors and Act.
The products are widely used in Communication,Servers, High-tech electronics, Ships, Computers,Data transmission, audio video processing,and automotive electronic systems.
We can replace these brands completely: TDK,Murata, Sumida, Wurth, Panasonic, Sunlord and etc.
Our production capacity is 40KK per month.
| Part No. | Series | Inductance (μH) | Size code | Marking | Datasheet |
|---|---|---|---|---|---|

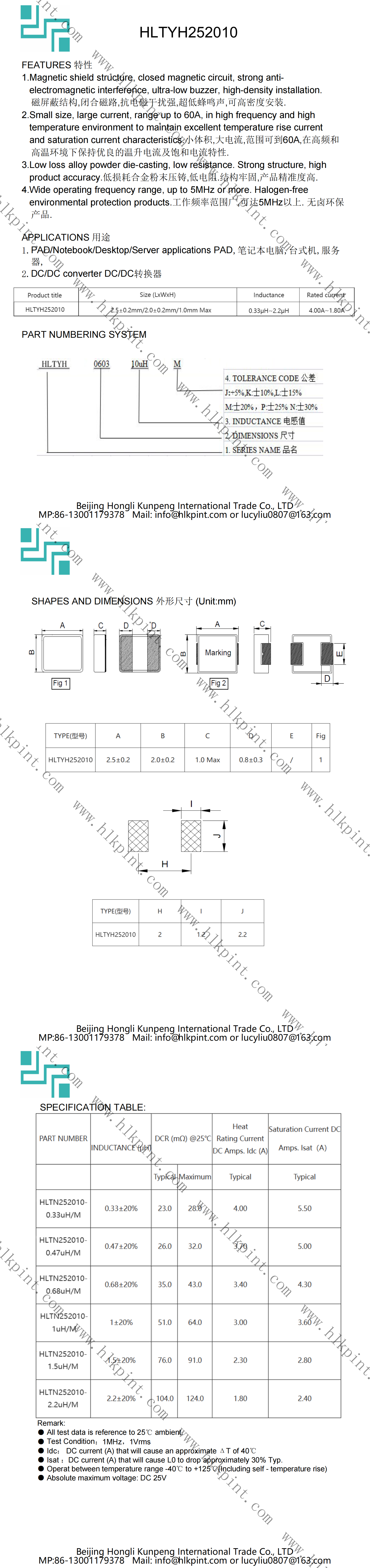

| HLTYH252010-0.33uH/M | HL252010 | 0.33±20% | 2.5±0.2mm/2.0±0.2mm/1.0mm Max(LxWxH) |  |
|

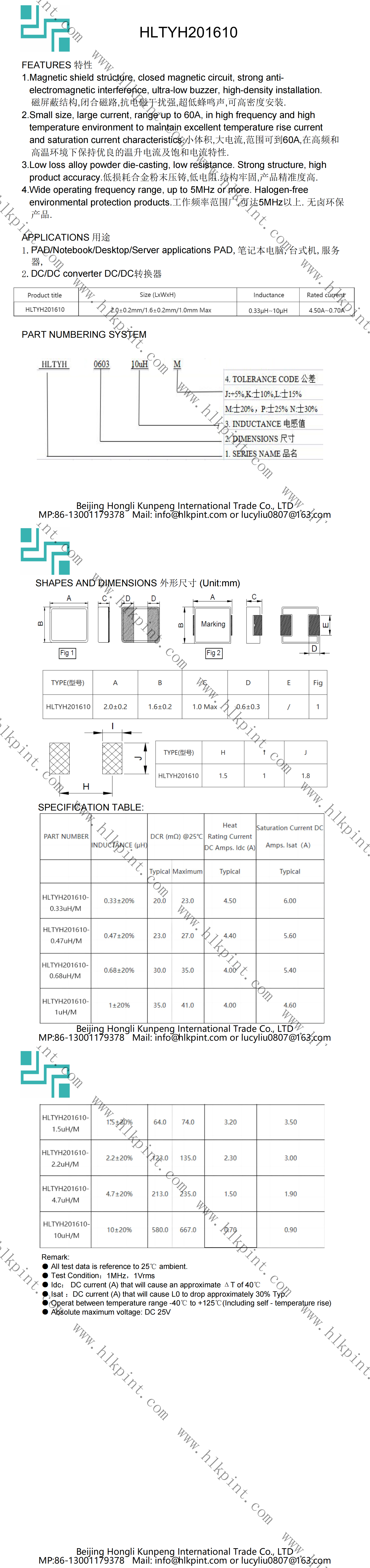

| HLTYH201610-10uH/M | HL201610 | 10±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-4.7uH/M | HL201610 | 4.7±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-2.2uH/M | HL201610 | 2.2±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-1.5uH/M | HL201610 | 1.5±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-1uH/M | HL201610 | 1±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-0.68uH/M | HL201610 | 0.68±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-0.47uH/M | HL201610 | 0.47±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|
| HLTYH201610-0.33uH/M | HL201610 | 0.33±20% | 2.0±0.2mm/1.6±0.2mm/1.0mm Max(LxWxH) | |
|

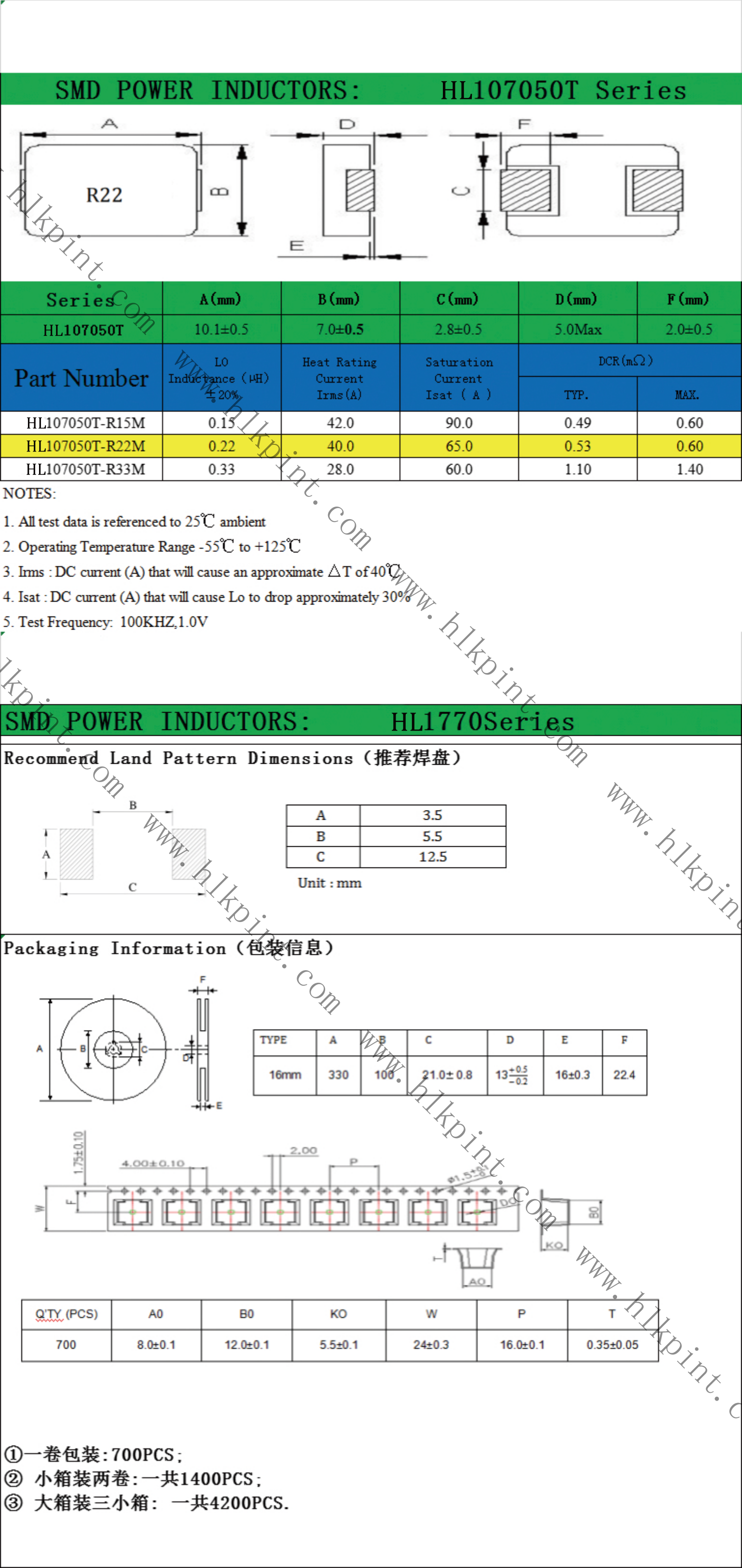

| HL107050T-R33M | HL107050T | 0.33 | 10.6*7.5 | R33 | |
| HL107050T R22M | HL107050T | 0.22 | 10.6*7.5 | R22 | |
| HL107050T-R15M | HL107050T | 0.15 | 10.6*7.5 | R15 | |
| HL1740H-1R5M-P | HL1740H | 1.5 | 17.8*4 | 1R5 | |
| HL1740H-R33M-P | HL1740H | 0.33 | 17.8*4 | R33 | |
| HL1265H-680M-P | HL1265H | 68 | 13.5*6.5 | 680 | |
| HL1265H-470M-P | HL1265H | 47 | 13.5*6.5 | 470 | |
| HL1265H-330M-P | HL1265H | 33 | 13.5*6.5 | 330 | |
| HL1265H-220M-P | HL1265H | 22 | 13.5*6.5 | 220 | |
| HL1265H-150M-P | HL1265H | 15 | 13.5*6.5 | 150 | |
| HL1265H-100M-P | HL1265H | 10 | 13.5*6.5 | 100 | |
