European Connector( DIN41612)

Overview

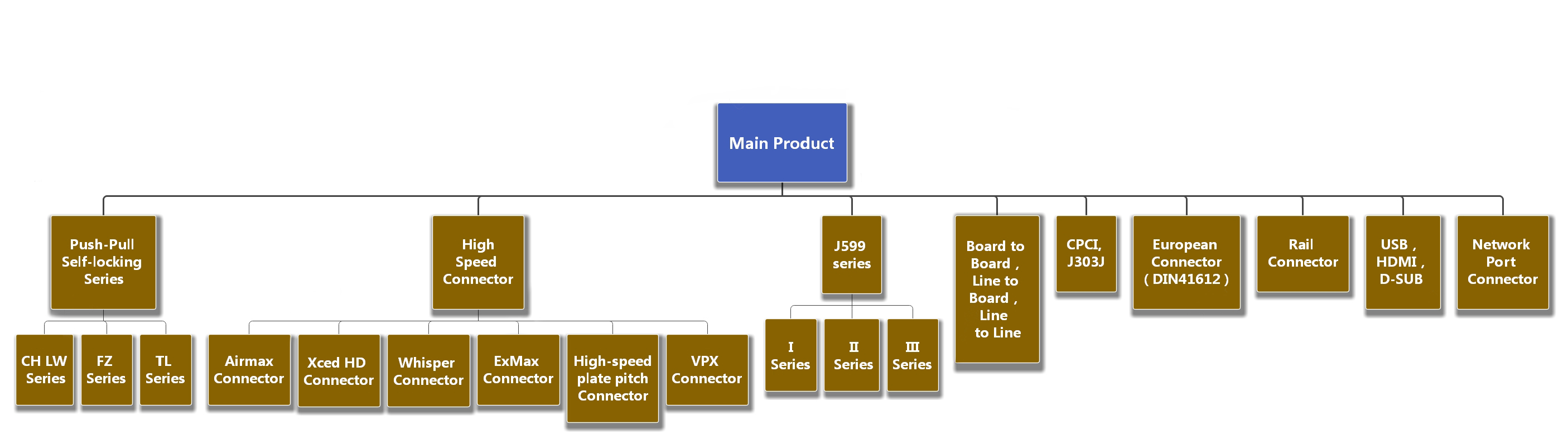

The company's main products are JB599 electrical connector, CH series push-pull self-locking aviation plug,

FZ/FS series waterproof connector, LW series threaded aviation plug, TLF/TLB/TLU military electrical connector, CPCI, CPCIE and High-speed Plate Pitch connector.



Products are widely used in aviation, naval ships, weapons, communications, railways, automobiles, communications,

electric power, industrial control, industrial automation and other fields;



The company can provide users with customized services, development, production of all kinds of special electrical connectors and cable assemblies.

It can replace  JST, Molex, TE, FCI, ERNI, LEMON, HARTINGHIROSE, ODU, Amphenol  and act.





















European connector DIN416 / IEC603-2 :

/kindeditor/attached/file/20231219/20231219164244_89365.pdf



Product list

Photo Series Model name Description Datasheet

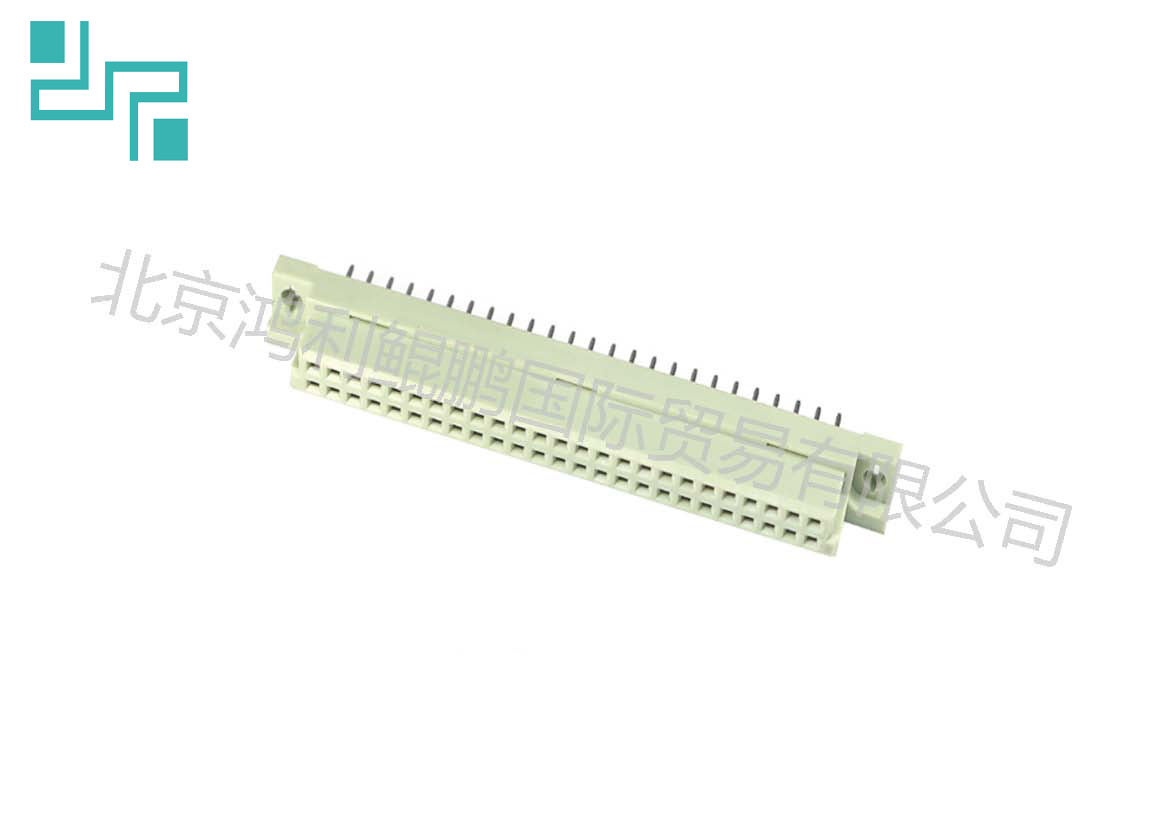

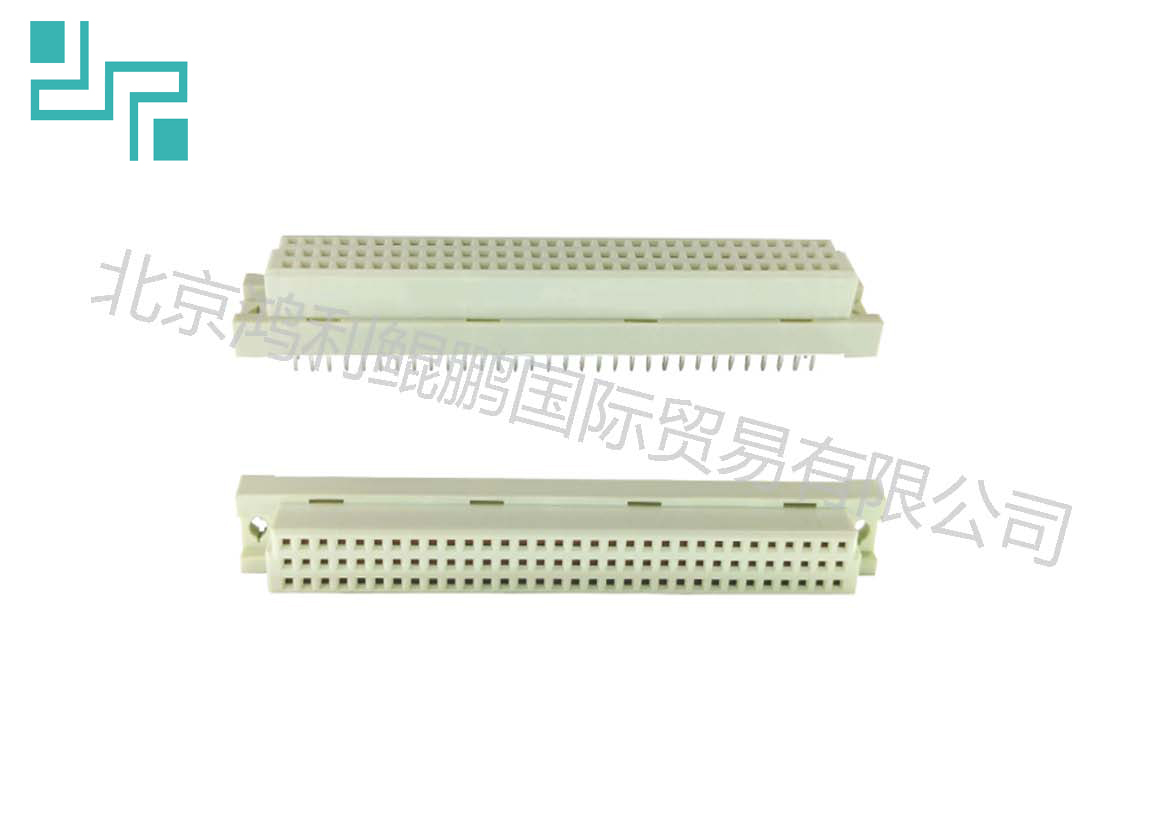

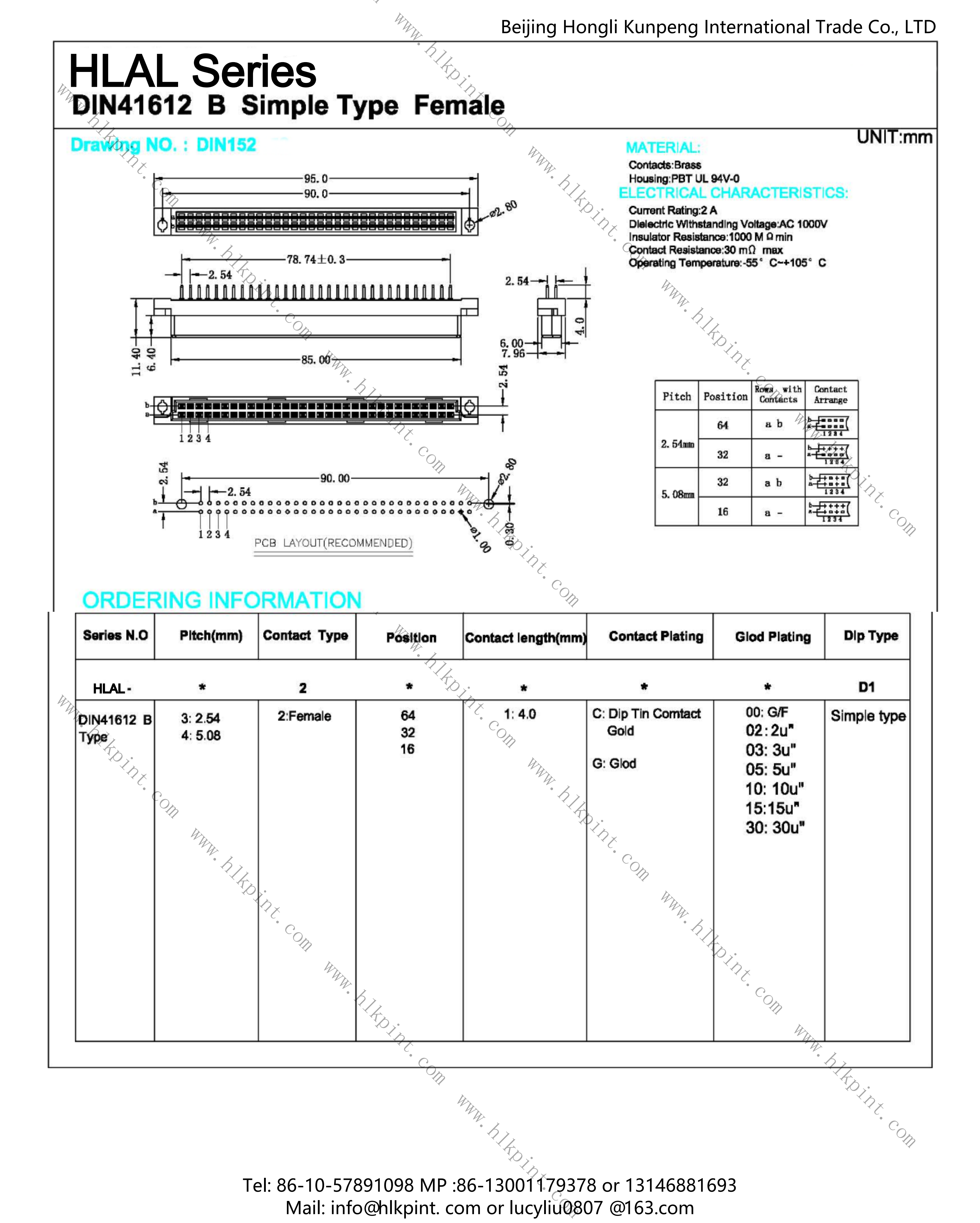

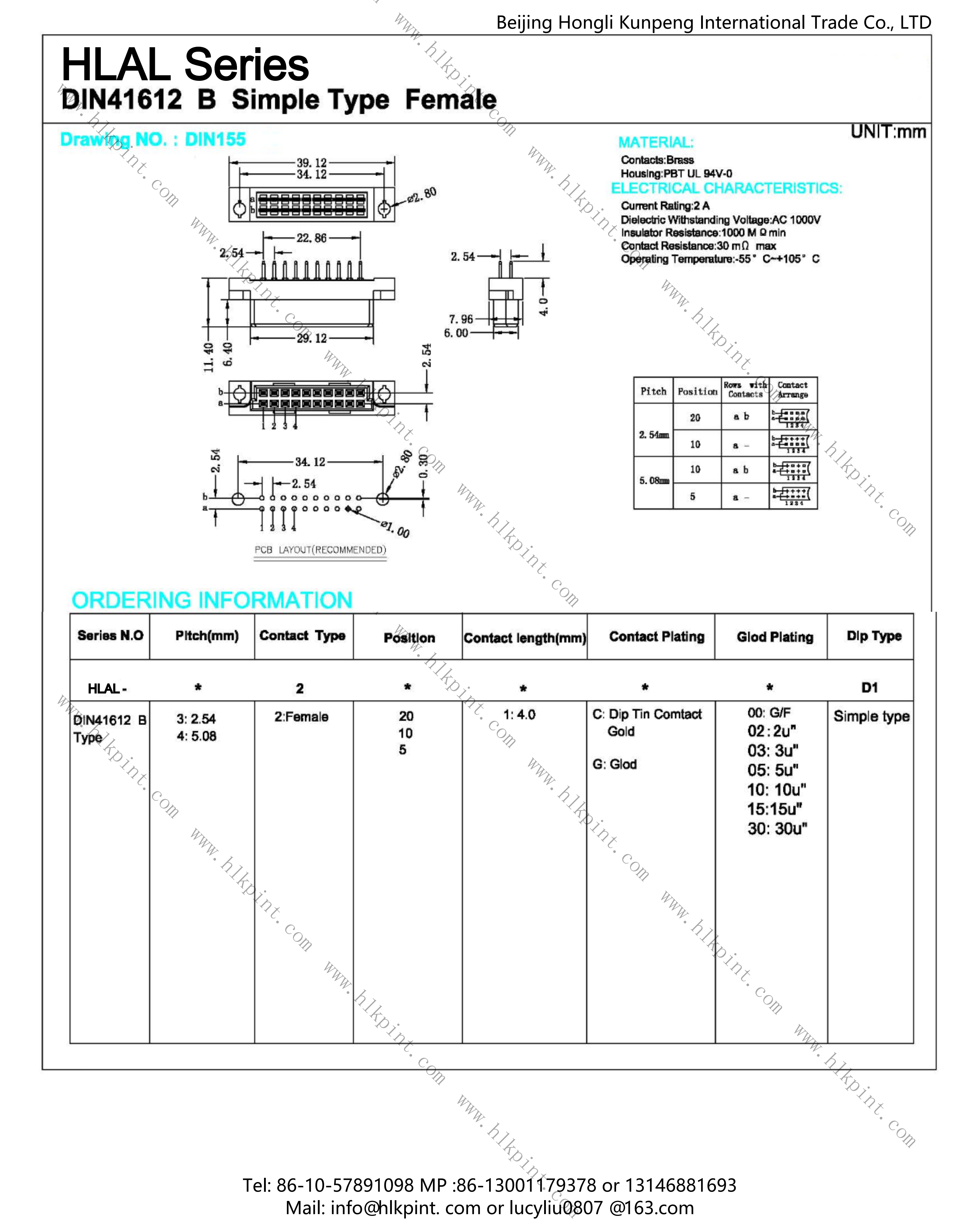

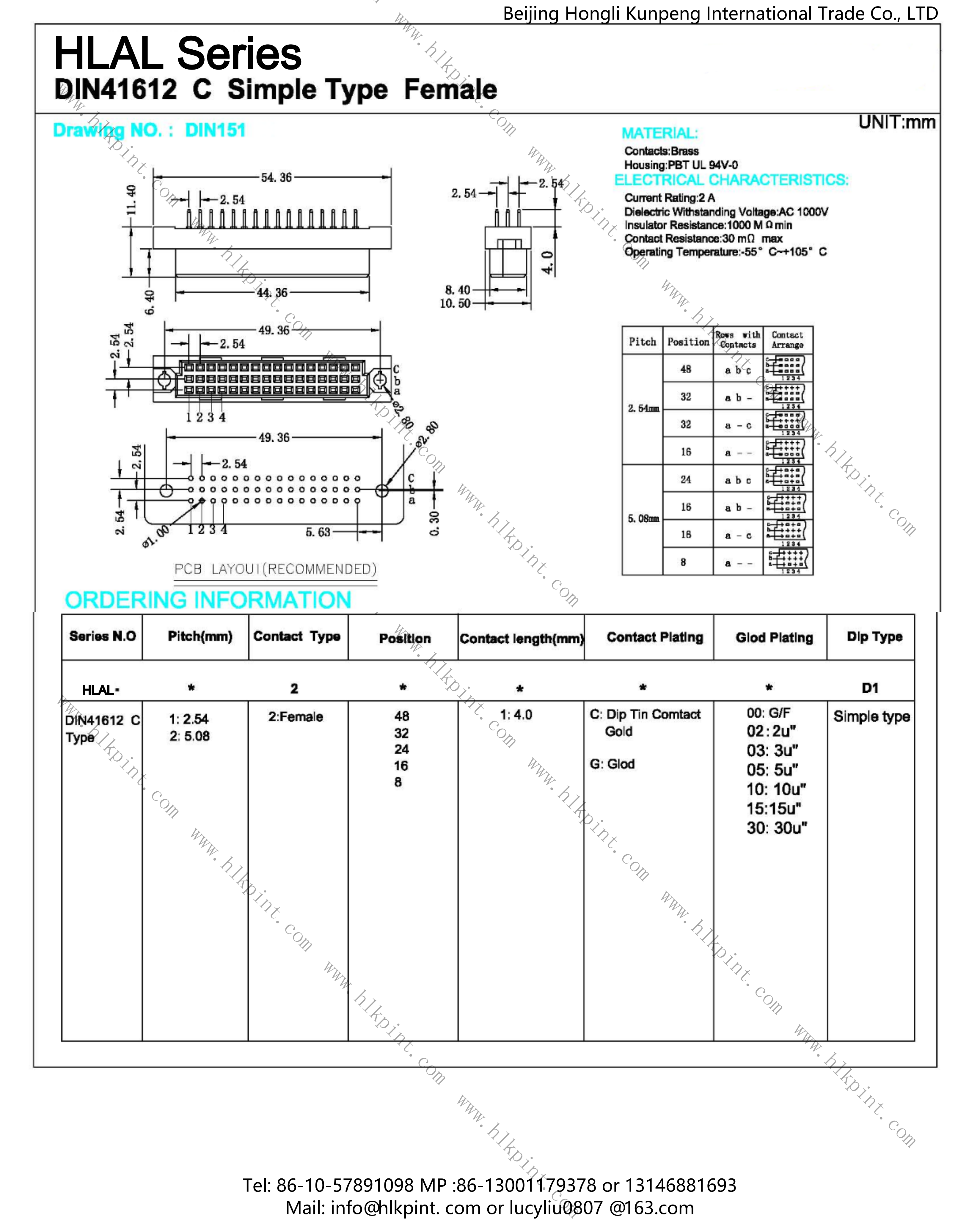

Straight female simple (three row)DIN41612 European connector Straight female simple (three row)DIN41612 European connector HLAL-*2****D1 Socket Simple 396 straight hole 3x32P (without cover)

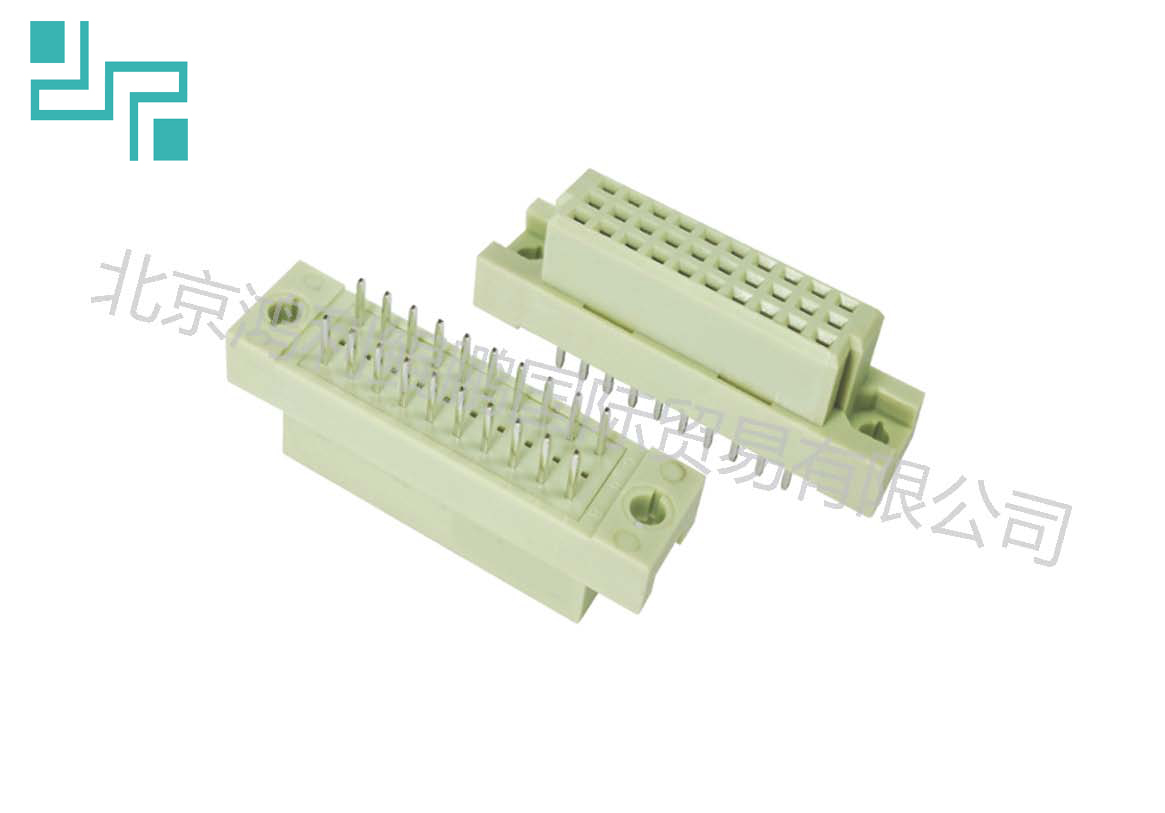

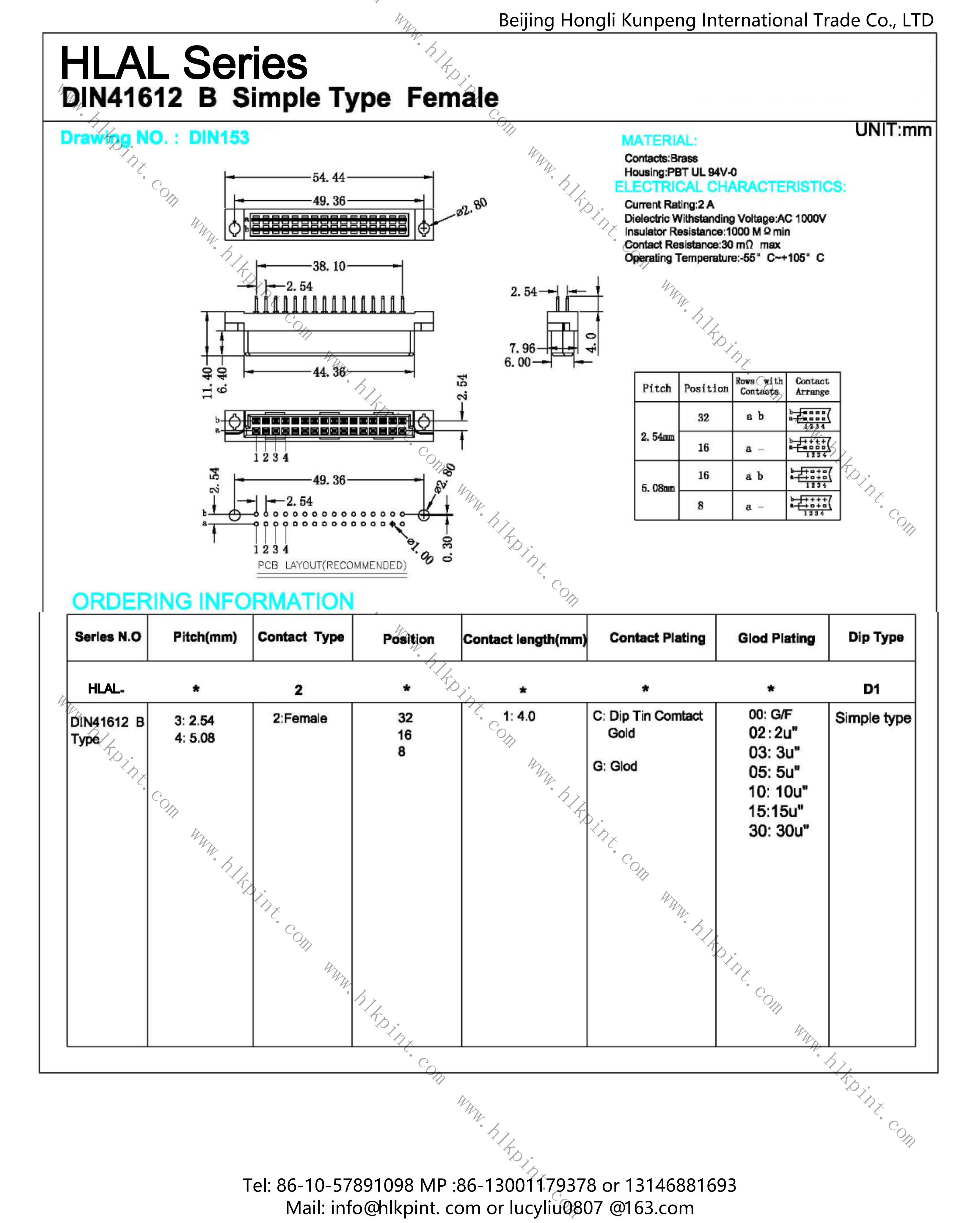

Straight female simple (three row)DIN41612 European connector Straight female simple (three row)DIN41612 European connector HLAL-*2****D1 Socket 348 straight hole simple type (without cover) 3x16P

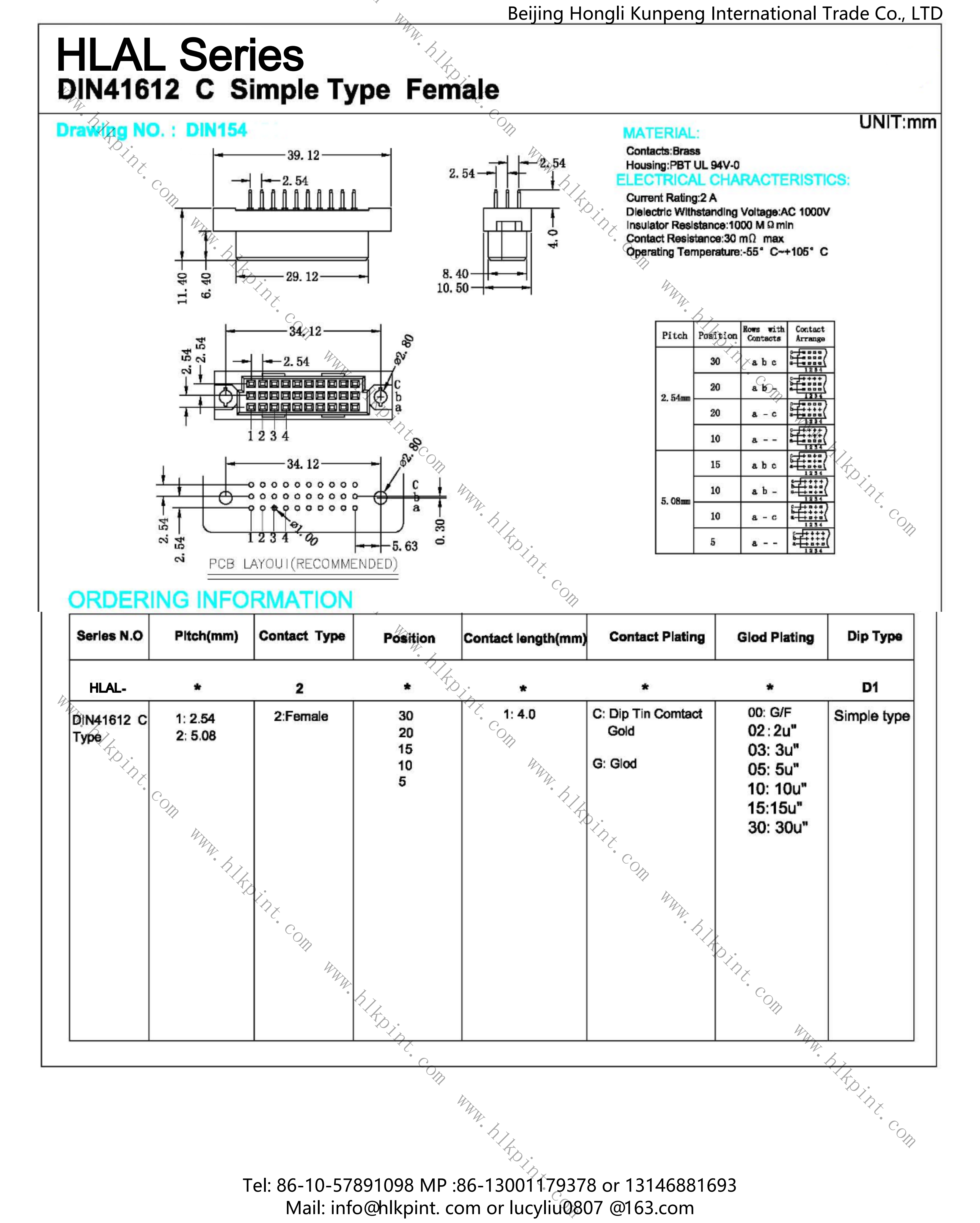

Straight female simple (three row)DIN41612 European connector Straight female simple (three row)DIN41612 European connector HLAL-*2****D1 Socket 330 Straight female simple type (without cover)

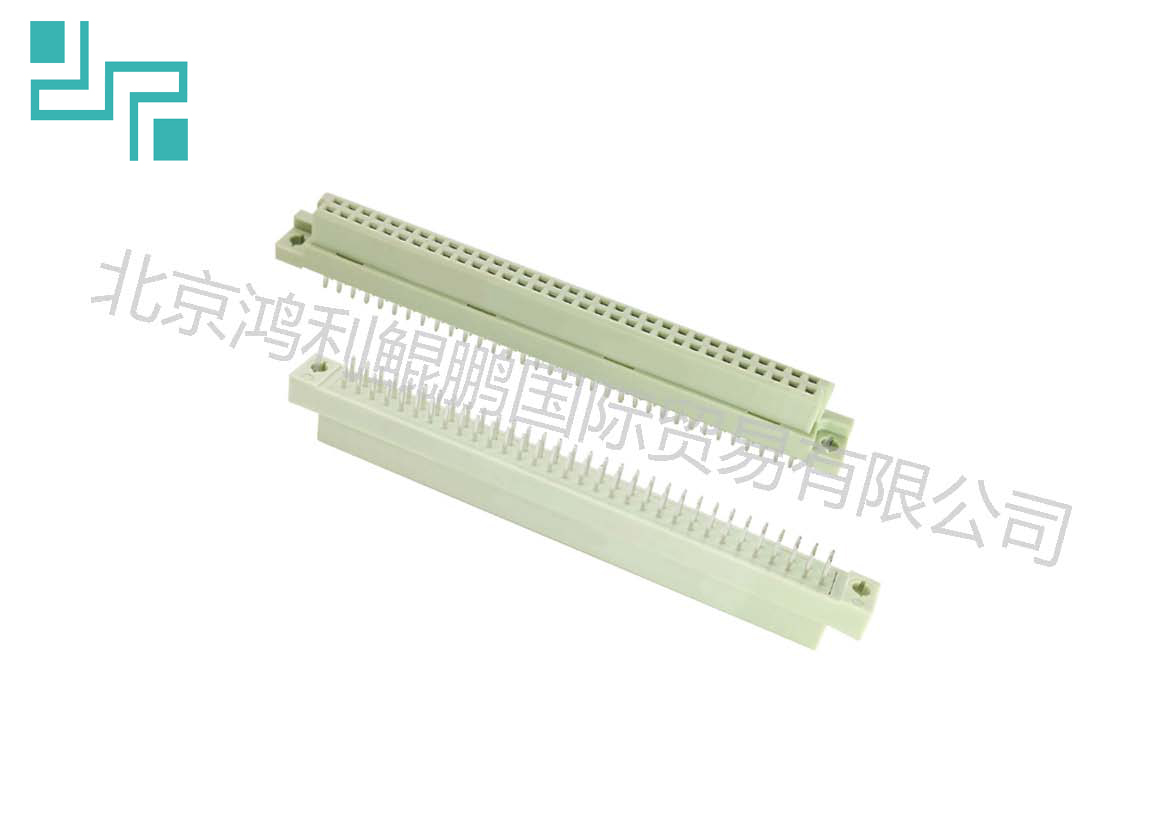

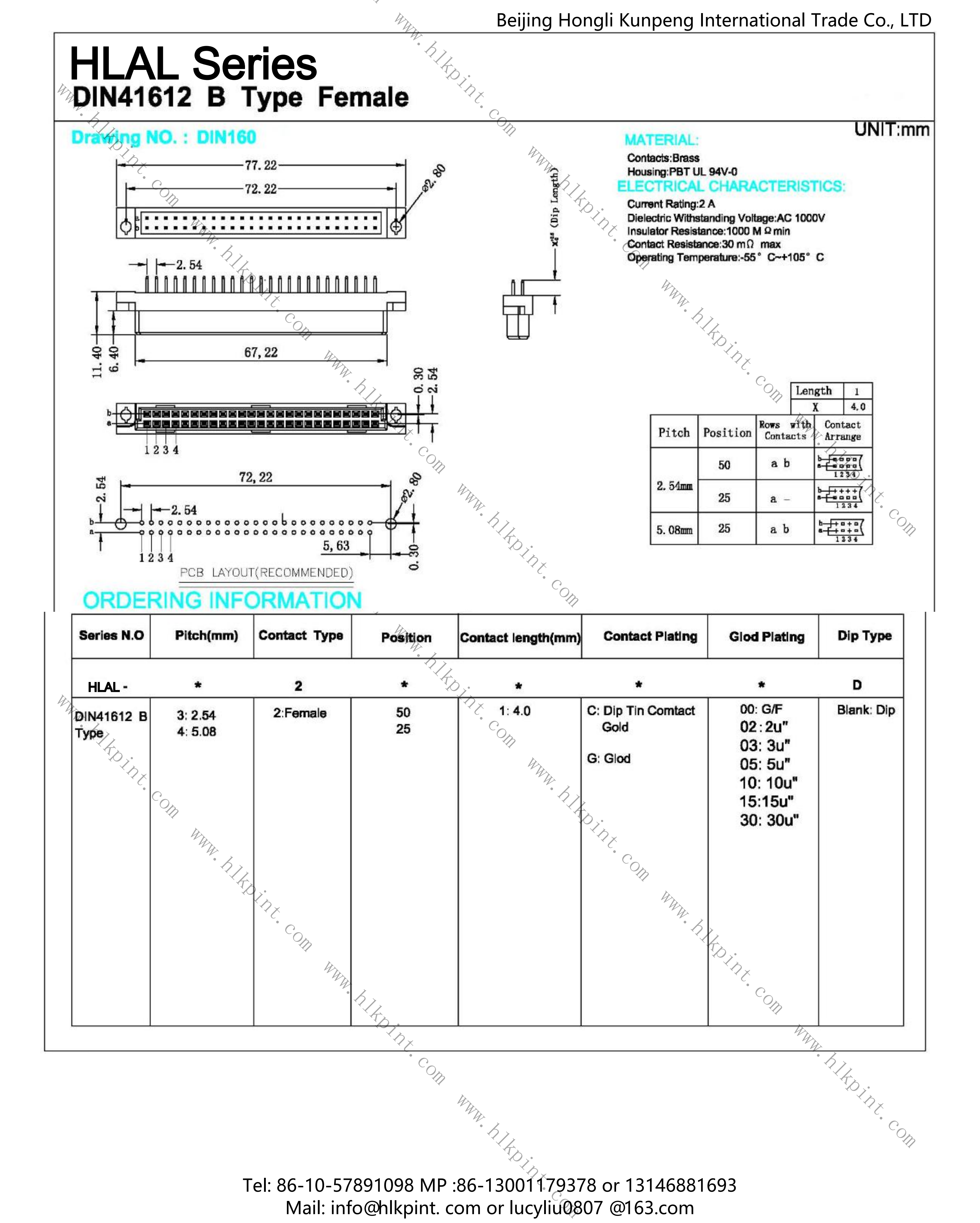

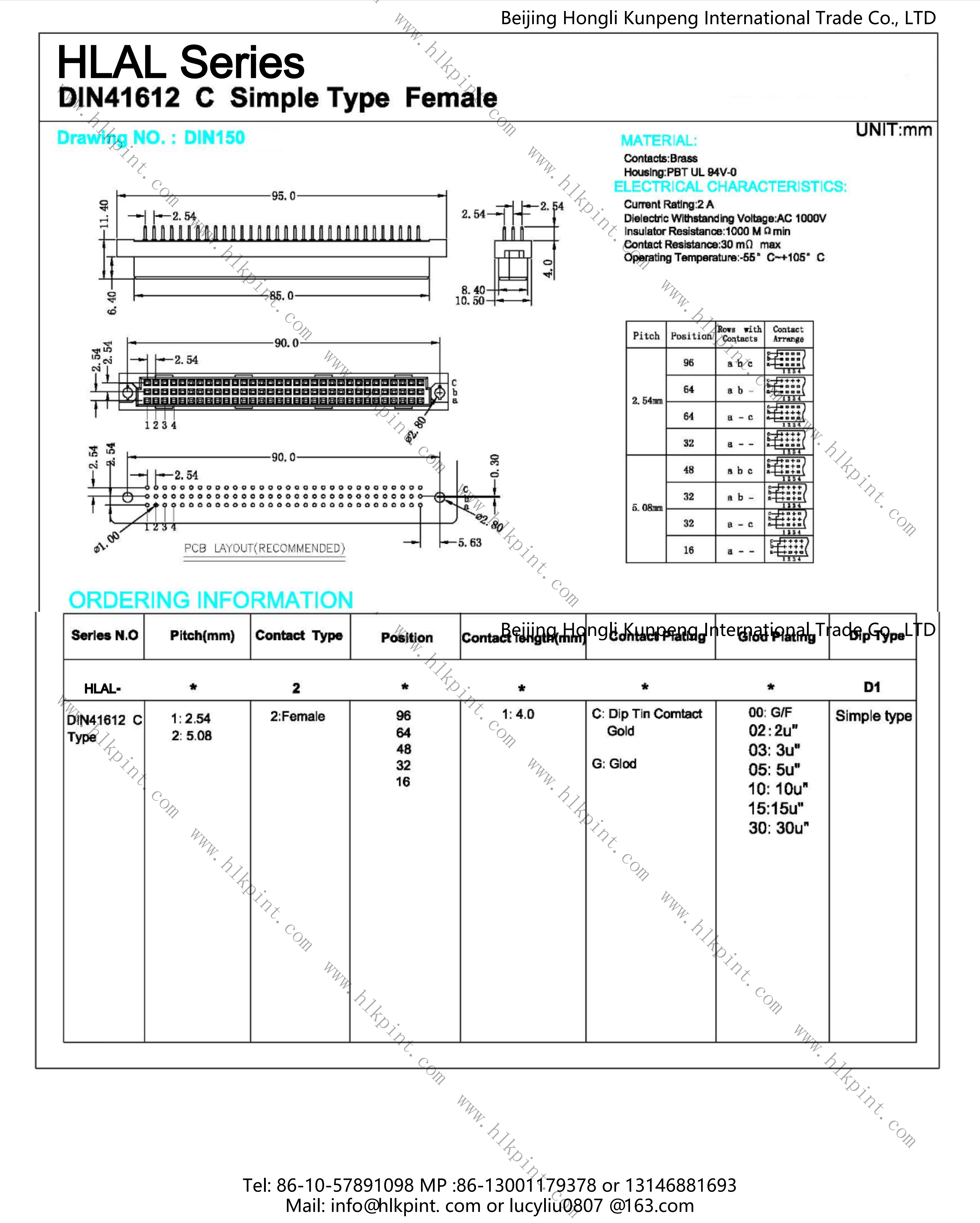

Straight female simple (two rows)DIN41612 European connector Straight female simple (two rows)DIN41612 European connector HLAL-*2****D1 Socket Simple 264 Straight hole 2x32P (without cover)

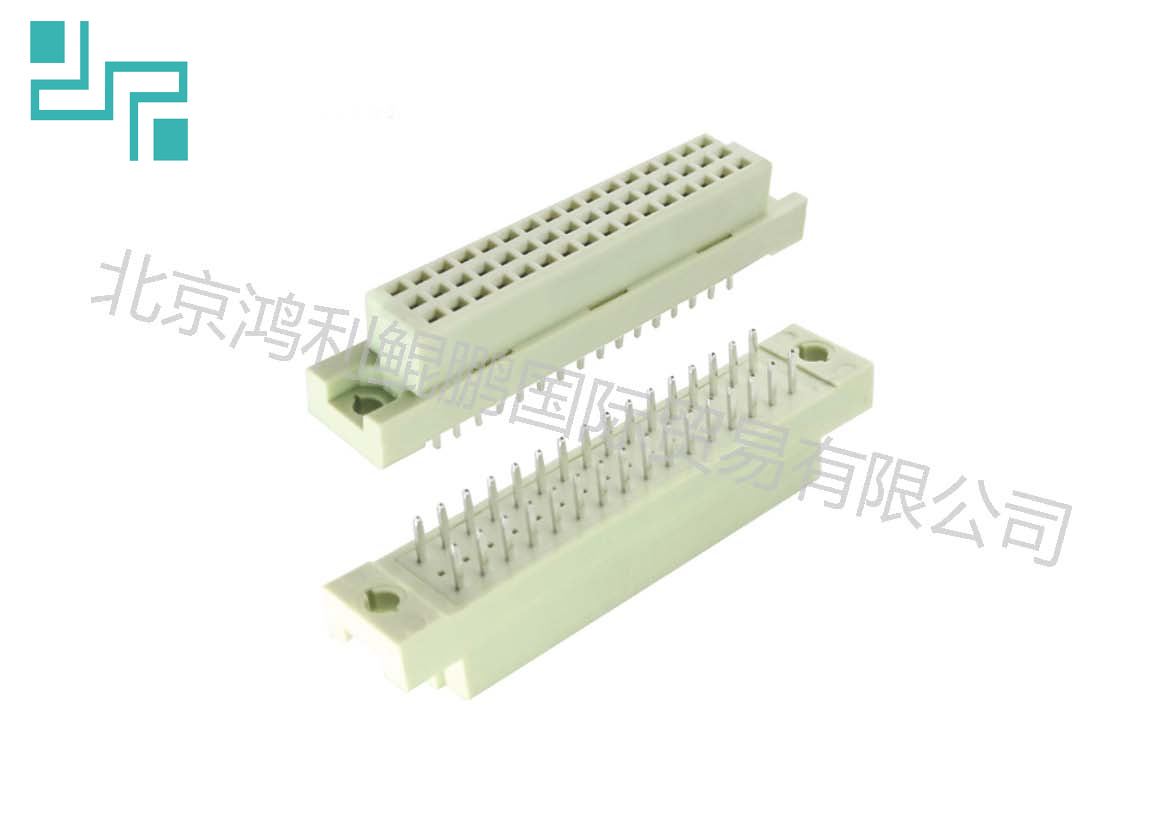

Straight female simple (two rows)DIN41612 European connector Straight female simple (two rows)DIN41612 European connector HLAL-*2****D1 Socket Simple 232 Straight female 2x16P (without cover)

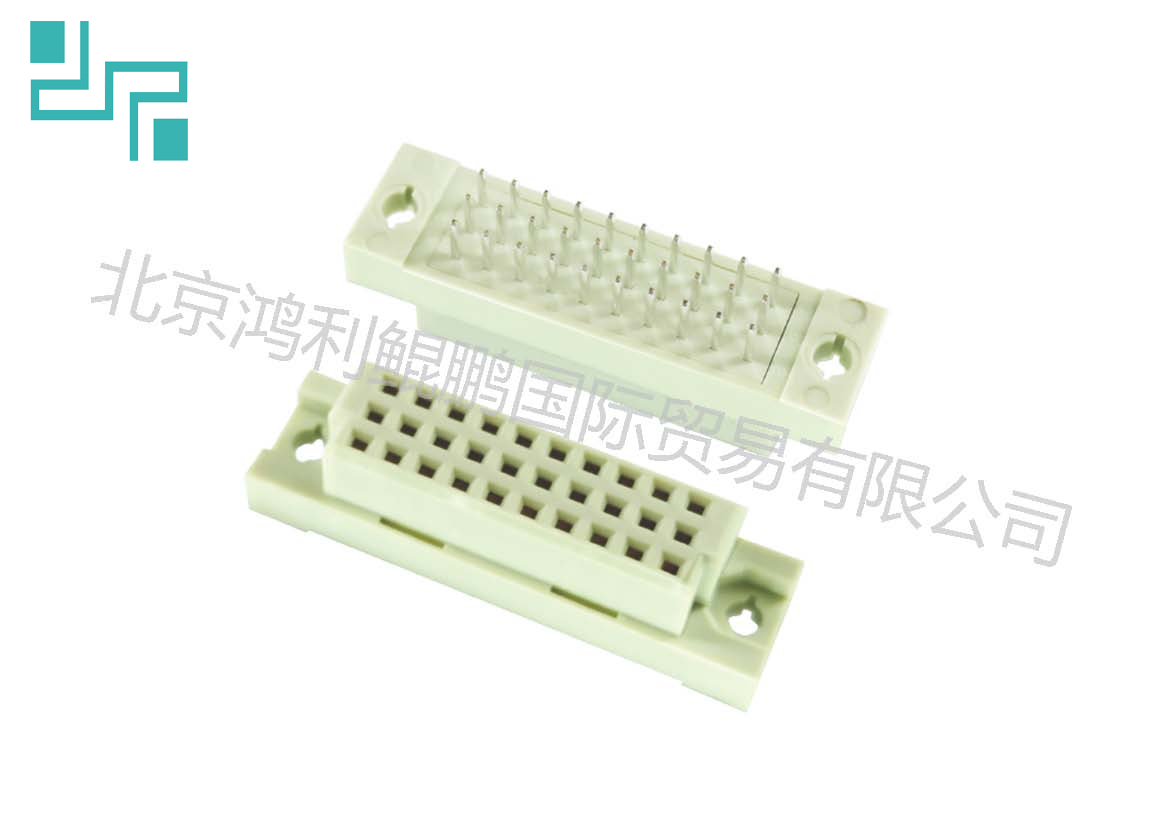

Straight female simple (two rows)DIN41612 European connector Straight female simple (two rows)DIN41612 European connector HLAL-*2****D1 Socket Simple 220 Straight hole 2x10P (without cover)

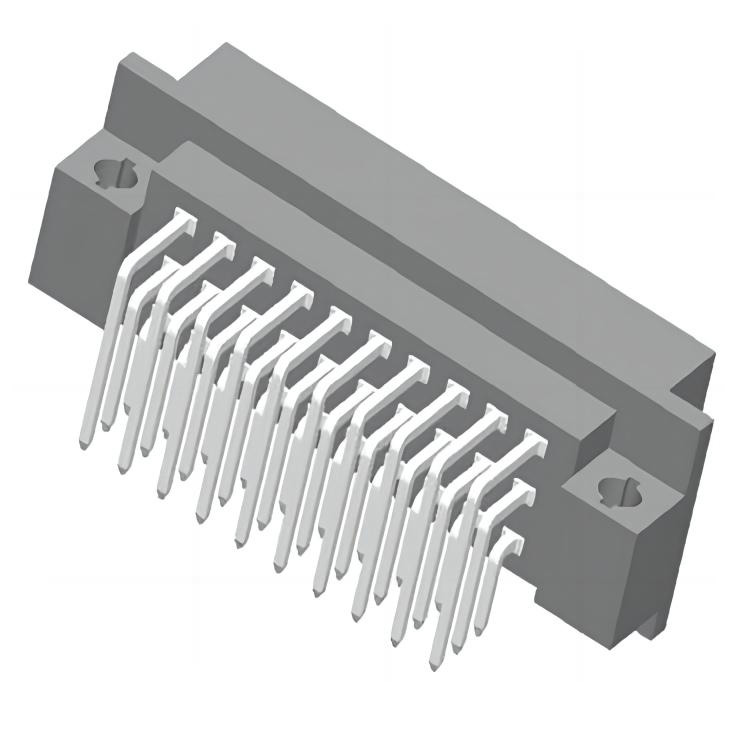

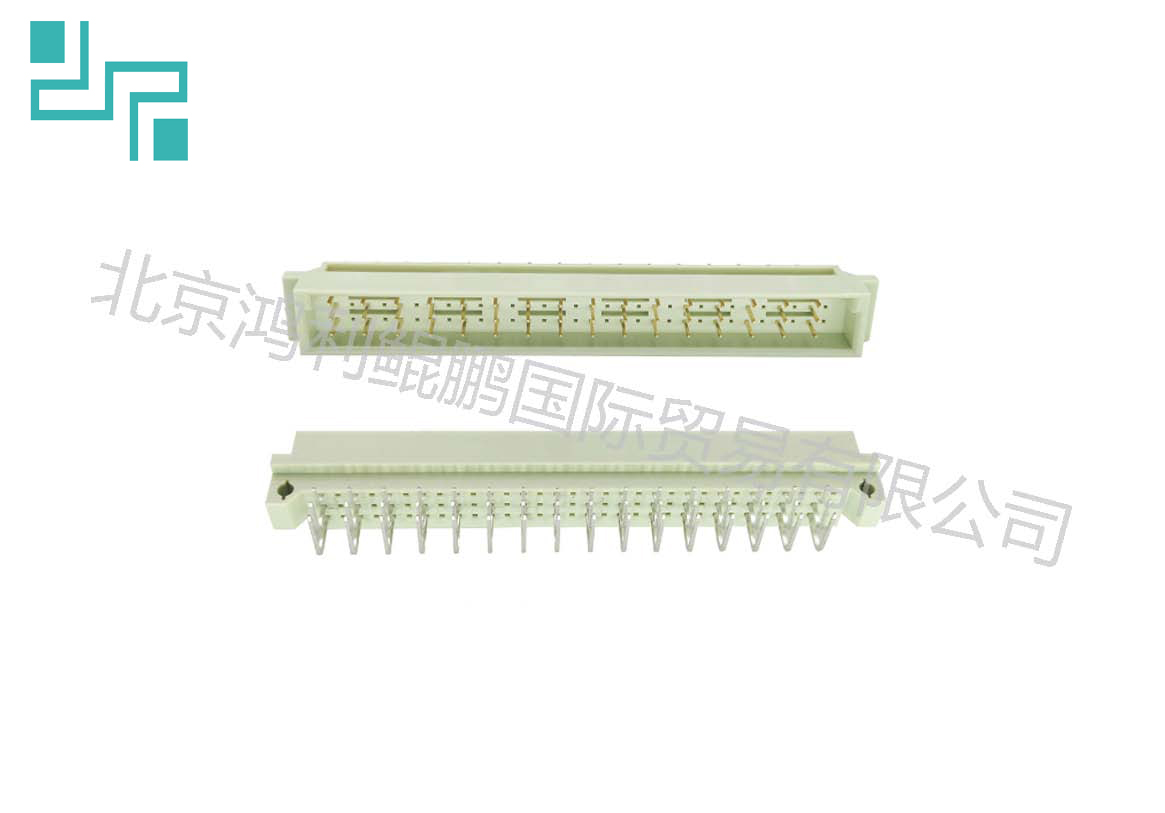

Distance 5.08mm DIN41612 European connector	Distance 5.08mm DIN41612 European connector HLAL-*4****D Socket 348 Bend pin spacing 5.08
Distance 5.08mm DIN41612 European connector Distance 5.08mm DIN41612 European connector HLAL-*2****D Socket 332 straight female spacing 5

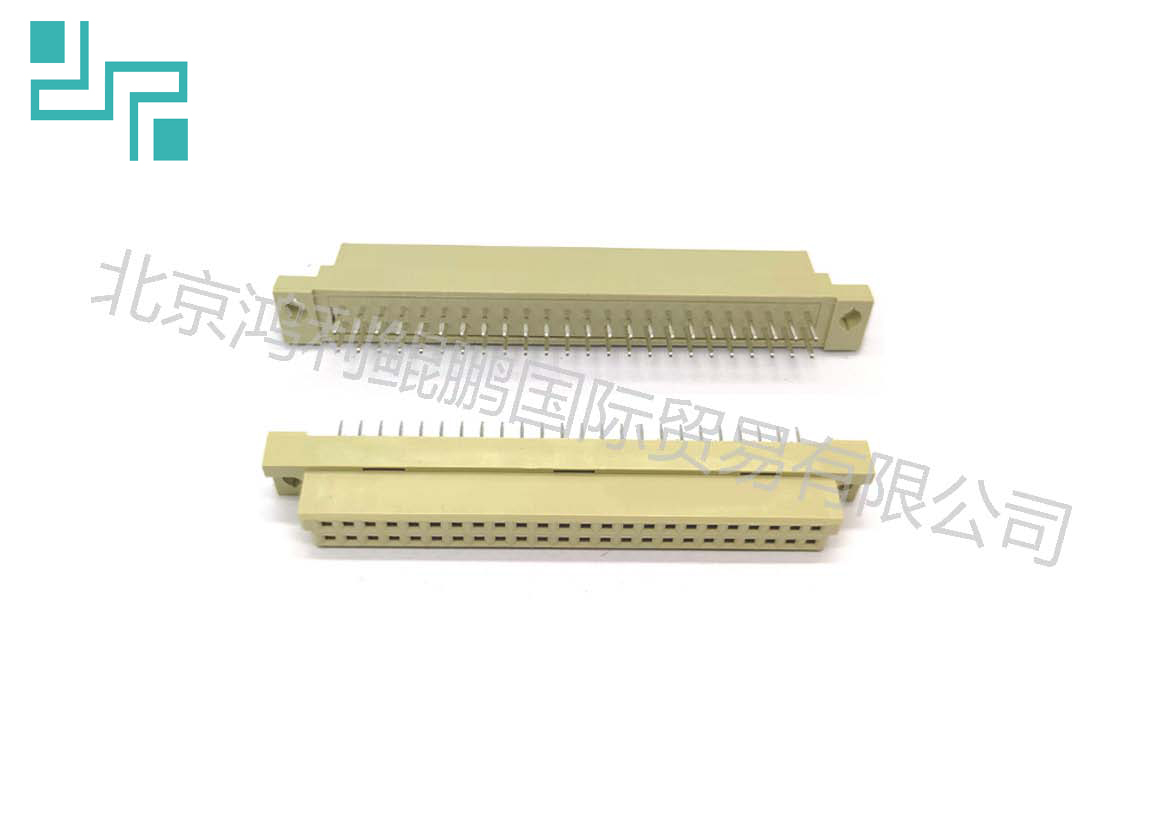

Straight female (two rows)DIN41612 European connector Straight female (two rows)DIN41612 European connector HLAL-*2****D Socket 264 straight female 2x32P
Straight female (two rows)DIN41612 European connector Straight female (two rows)DIN41612 European connector HLAL-*2****D Socket 250 straight female

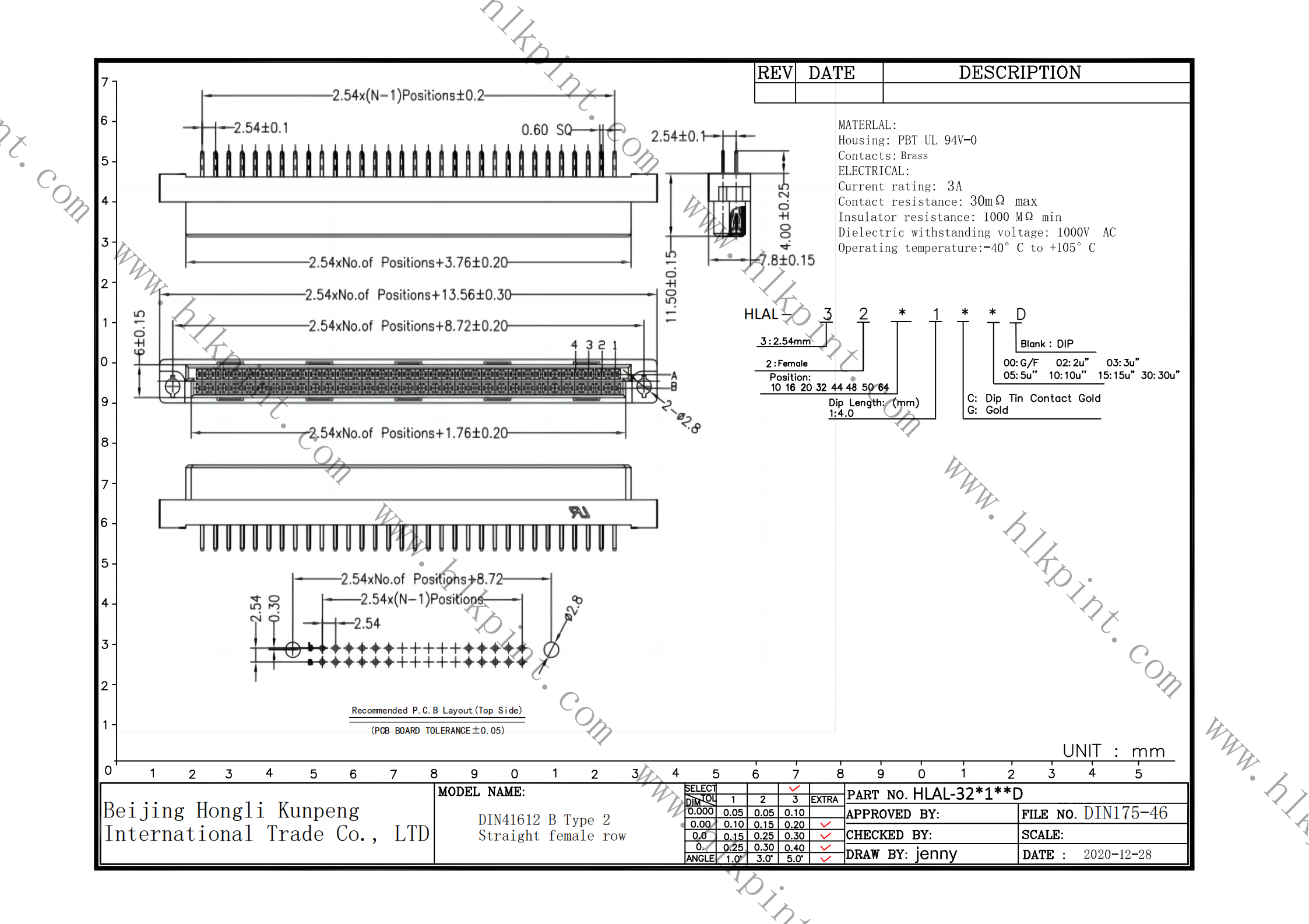

Straight female (two rows)DIN41612 European connector Straight female (two rows)DIN41612 European connector HLAL-32*1**D Socket 248 straight female 2x24p
Straight female (two rows)DIN41612 European connector Straight female (two rows)DIN41612 European connector HLAL-32*1**D Socket 244 straight female 2x22
Straight female (two rows)DIN41612 European connector Straight female (two rows)DIN41612 European connector HLAL-*2****D Socket 232 straight female 2x16p
Straight female (two rows)DIN41612 European connector Straight female (two rows)DIN41612 European connector HLAL-*2****D Socket 220 straight female 2x10p

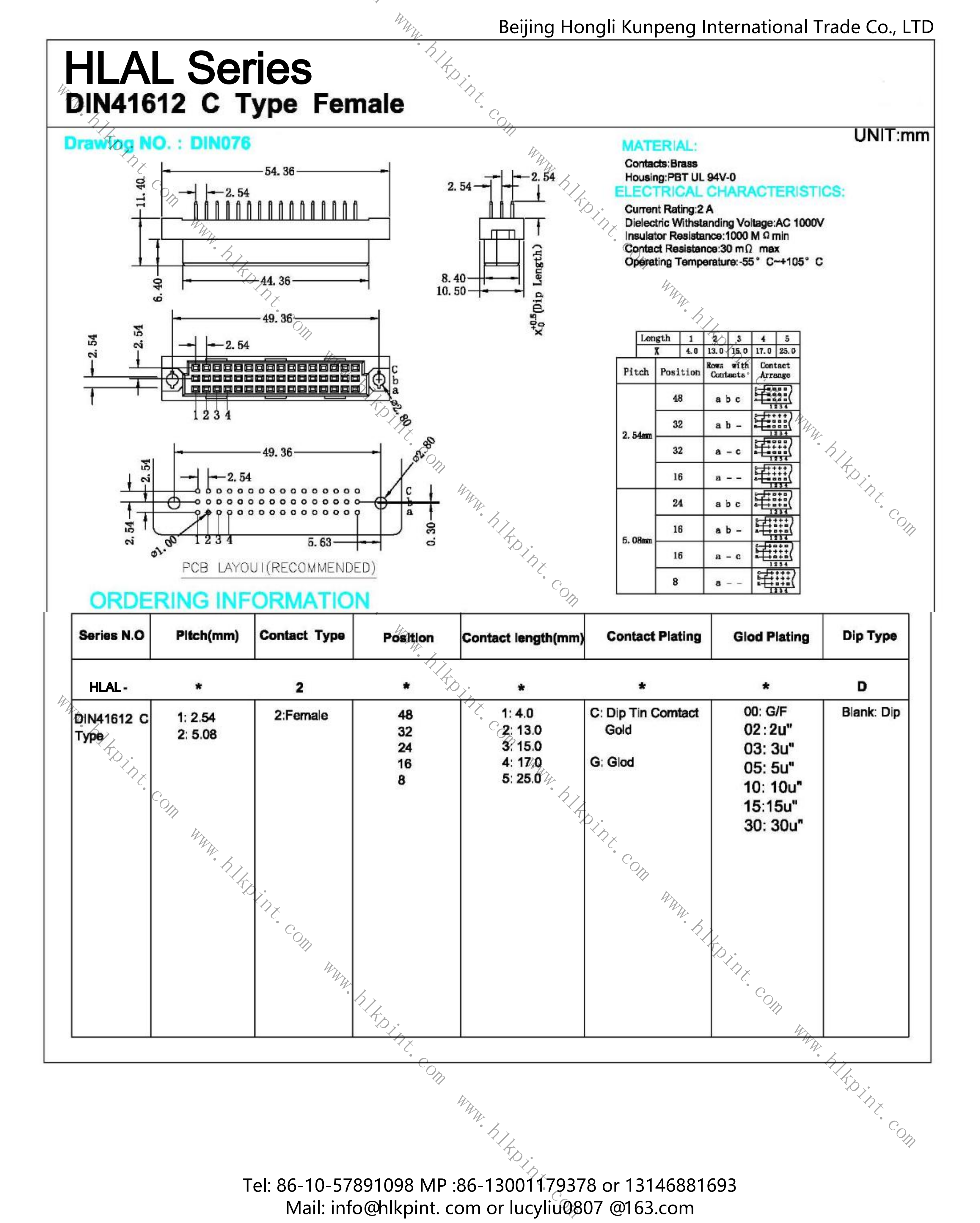

Straight female (three rows)DIN41612 European connector Straight female (three rows)DIN41612 European connector HLAL-*2****D Terminal 348 straight female 3x16p

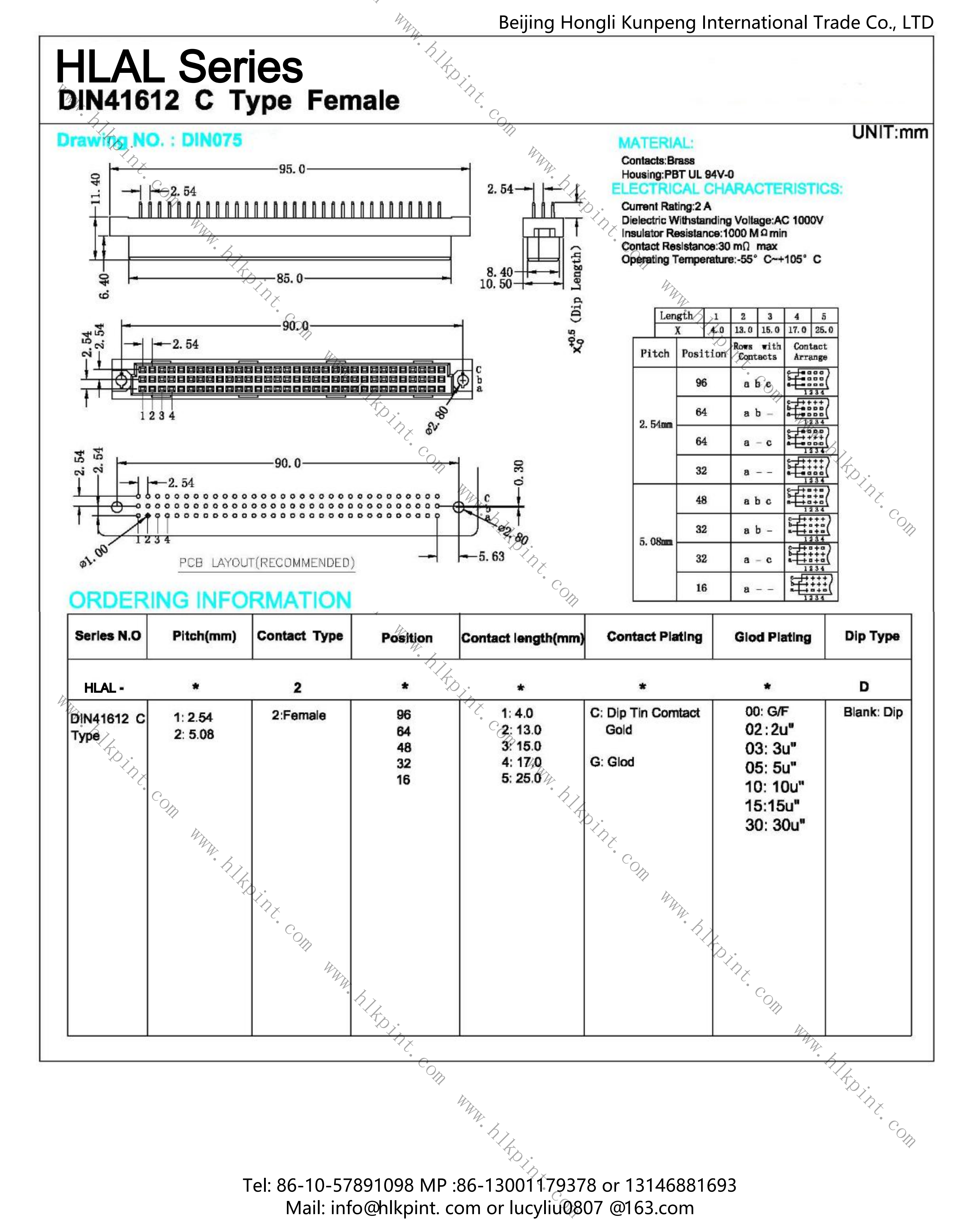

Straight female (three rows)DIN41612 European connector Straight female (three rows)DIN41612 European connector HLAL-*2****D Socket 396 straight female 3x32P

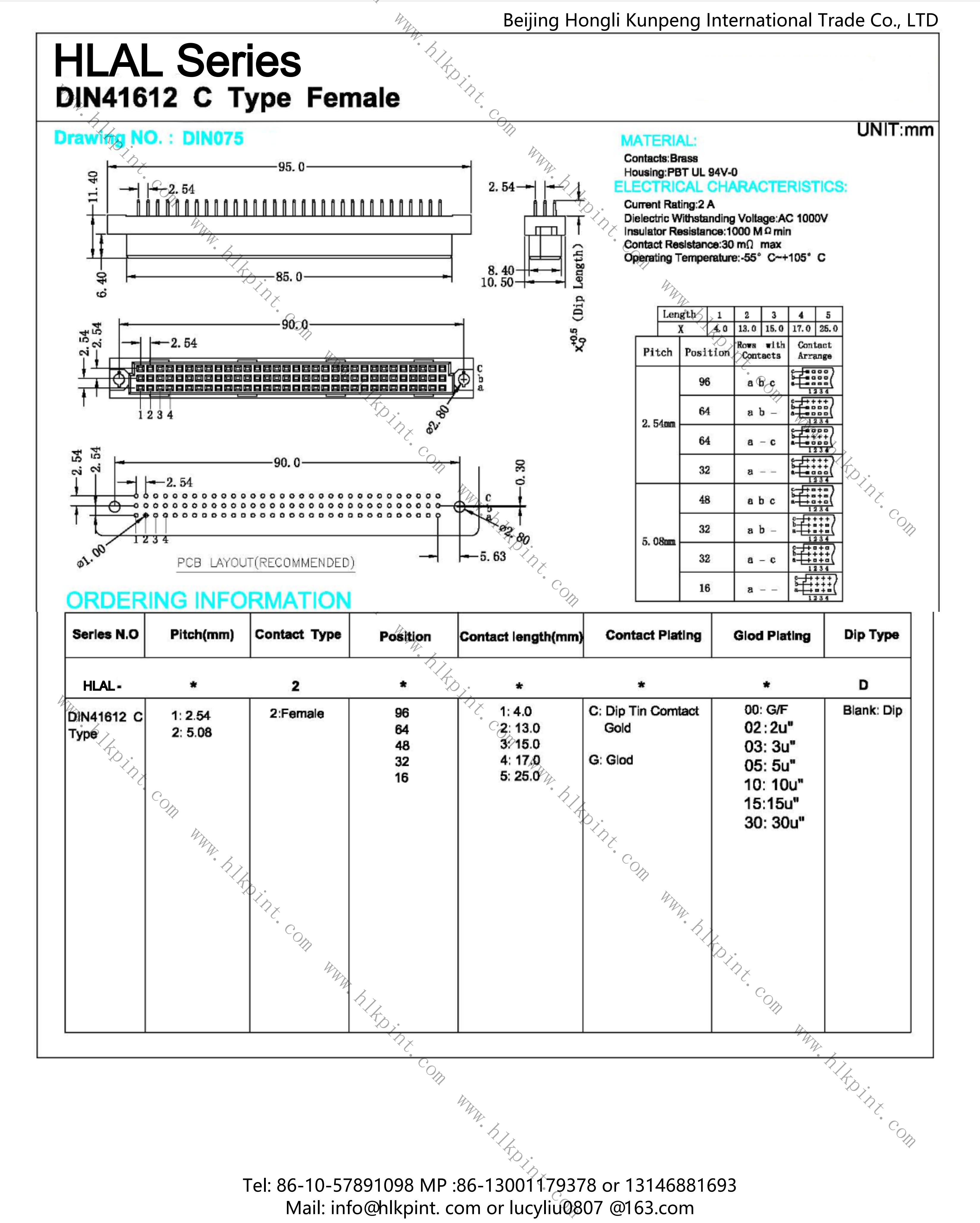

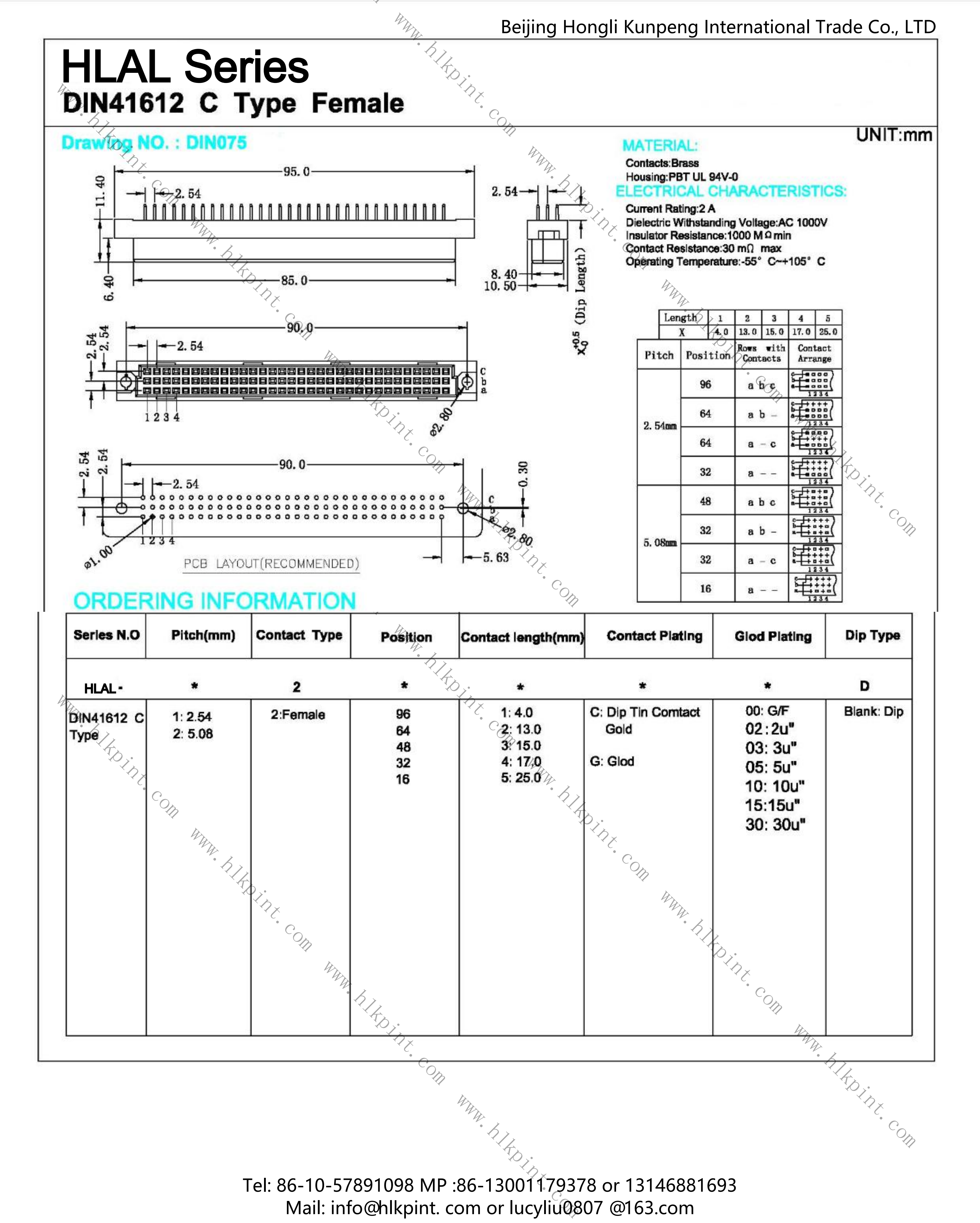

Straight female (three rows)DIN41612 European connector Straight female (three rows)DIN41612 European connector HLAL-*2****D Socket 364 Straight female 2x32P
Straight female (three rows)DIN41612 European connector Straight female (three rows)DIN41612 European connector HLAL-*2****D Socket 332 straight female 2x16P

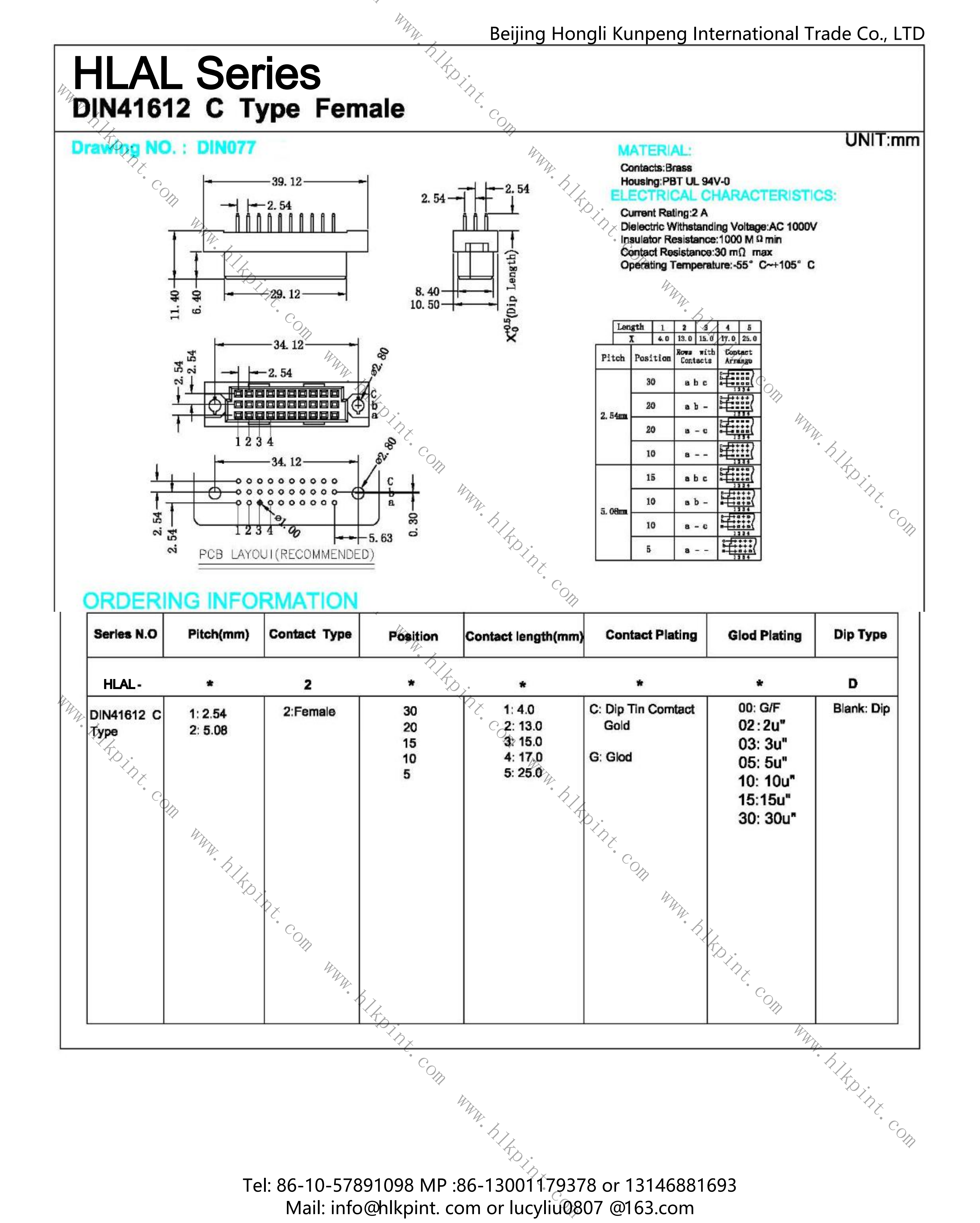

Straight female (three rows)DIN41612 European connector Straight female (three rows)DIN41612 European connector HLAL-*2****D Socket 330 straight female
Straight female (three rows)DIN41612 European connector Straight female (three rows)DIN41612 European connector HLAL-*2****D Socket 320 straight female
